Sunpie headlight question.

426power · 2021-03-26 21:15:53

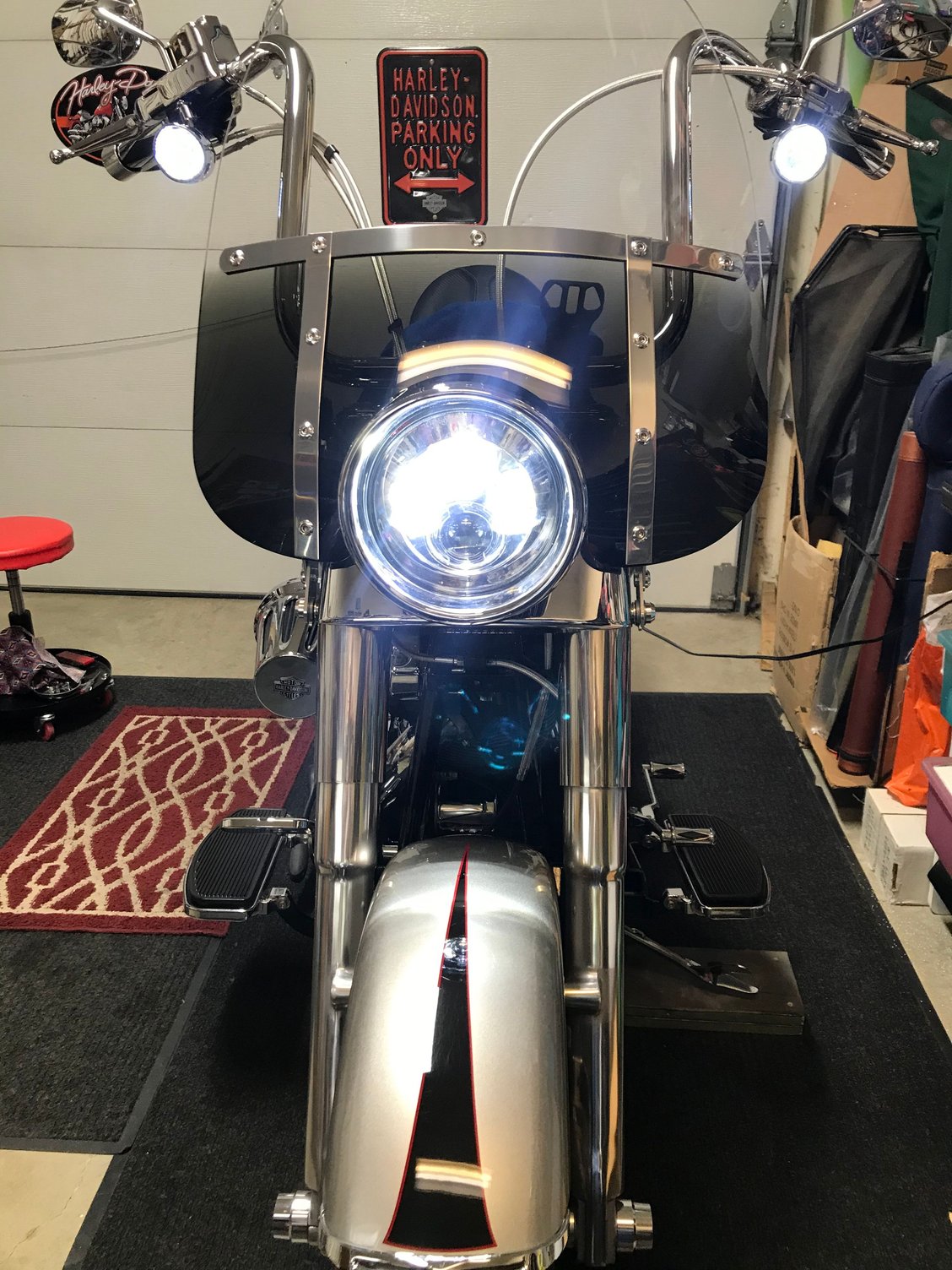

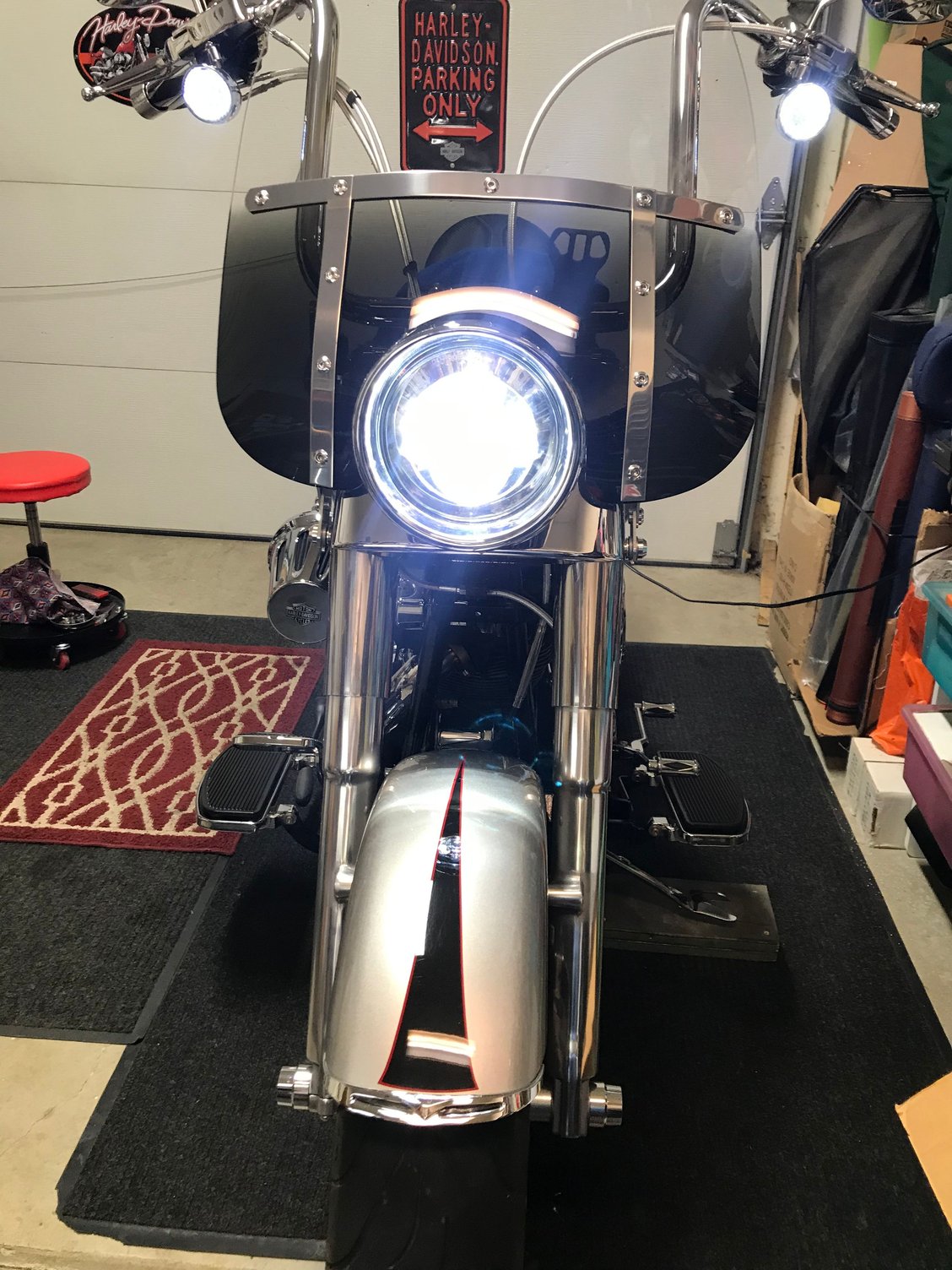

Low beam/Hi beam, Sunpie 7” https://cimg0.ibsrv.net/gimg/www.hdforums.com-vbulletin/2000x1504/8945c960_9af8_48a1_adfd_c64c2ea4d605_c93e292162a9fd26653ad259d12c7adaa5838fdd.jpeg https://cimg1.ibsrv.net/gimg/www.hdforums.com-vbulletin/2000x1504/3df672d5_93b8_4837_b6d8_de9b414846ce_be0b9fb7bde0d872227dc4bfa31ad1bde8a82b88.jpeg

Reply Subscribe

Thread Tools

Search this Thread

Mar 26, 2021 | 08:56 PM

#11

drummin1

Advanced

Joined: Dec 2020

Posts: 66

Likes: 131

From: Ft. Collins, CO

Low beam/Hi beam, Sunpie 7”

Mar 26, 2021 | 08:57 PM

#12

Thatdude596

Banned

Joined: Feb 2021

Posts: 641

Likes: 110

From: Ohio

Quote:

Originally Posted by TriGeezer

Buy Chinese knockoffs. The job you kill maybe your own. Oh yeah, to make a positive contribution to this thread, I have no suggestion.

funny as almost every HD part is made overseas or in Mexico lol

Mar 26, 2021 | 10:40 PM

#13

TriGeezer

Seasoned HDF Member

Joined: May 2012

Posts: 32,934

Likes: 36,031

From: Carlsbad, CA

Quote:

Originally Posted by Thatdude596

funny as almost every HD part is made overseas or in Mexico lol

They are made under contract by HD. Not the same as when a Chinese company steals American technology and makes knockoff products.

Mar 27, 2021 | 09:34 AM

#14

426power

Thread Starter

Tourer

Joined: Jun 2014

Posts: 323

Likes: 86

From: Ohio

Quote:

Originally Posted by 702

Have you verified that the headlight you removed worked on both hi & low?

yes it worked perfectly

Mar 27, 2021 | 09:35 AM

#15

426power

Thread Starter

Tourer

Joined: Jun 2014

Posts: 323

Likes: 86

From: Ohio

Quote:

Originally Posted by btsom

Have you looked at the light itself to see if the second light source NOT on in low beam actually lights up when hi beam is selected? If it doesn't start there to figure out what is wrong. Check power to the high beam wire when high beam is selected If the second light source lights when high beam is selected, your wiring is good and the light is aimed wrong internally. If you don't have power to the high beam contact in the plug, trouble shoot that problem. Have you verified the ground wire is well grounded? Are BOTH low and high light sources on all the time? Again, check the plug for proper power separation and if the wiring to the plug is functioning properly, the light assembly has in internal wiring/power distribution problem (faulty).

actually the high beam is stuck on that is the problem. Bad light

Mar 31, 2021 | 08:58 PM

#16

DetroitGuy

Advanced

Joined: Apr 2012

Posts: 68

Likes: 27

From: Detroit Michigan

Quote:

Originally Posted by TriGeezer

They are made under contract by HD. Not the same as when a Chinese company steals American technology and makes knockoff products.

To be fair, and as a blue blooded conservative american...that's not "our" technology. I agree china makes **** products but I can buy 3 7in sunpies for what one daymaker costs.

Mar 31, 2021 | 08:59 PM

#17

DetroitGuy

Advanced

Joined: Apr 2012

Posts: 68

Likes: 27

From: Detroit Michigan

Quote:

Originally Posted by 426power

I installed my Sunpie headlight in my 2014 Streetglide. The light seems like it is on high beam all the time. When I push the high beam switch the light come on on the gage but the light does not get any brighter or the cut off line doesn’t seem to raise anyone have this problem.

I was thinking the same thing.... just got the sunpie lights for my 2011 EGUC, and the high beam is just a tiny spot that shows up inside the light pattern on my garage door. It's almost non existent

Mar 31, 2021 | 09:06 PM

#18

golfblues

Seasoned HDF Member

Joined: Sep 2007

Posts: 9,741

Likes: 1,598

From: Danbury CT

Quote:

Originally Posted by Neggy ZRXOA 5248

yep, you got what you paid for.

They aim VERY high, there is no way to get them down, the high beam could be used as a Bat Signal

That is just so much misinformation. You could adjust the beam higher or lower per the service manual. I have sunpies on both bikes and my friends have them too and no problems.

To the OP. If your light has the three prong connector make sure the connectors are in the right position. I once plugged mine in and had 1 side up and 1 down. If I recall I only got one beam. Disconnected it, turned 1 around, plugged them back together and everything worked.

Last edited by golfblues; Mar 31, 2021 at 09:12 PM.
