Starter circuit wiring help needed
Thread Starter
|
Road Warrior
Joined: Apr 2018
Posts: 1,347
Likes: 820
From: Moneta, Virginia
Starter circuit wiring help needed
2001 Road King Classic
She starts if I bypass the starter relay with a jumper.
(yes I know and I have a solenoid push button cover on the way)
Ive swapped the starter relay with the brake light switch and verified its working.
The Run/Off switch is working (fuel pump tells me so)
I metered the push button start switch at the Deutsch connector under the nacelle and it shorts between the Black/red and grey wire when pushed.
I have continuity on the black/red from the Deutsch connector to the relay and from the grey at the connector to one side of the 15amp ignition fuse.
This is where Im lost where does the other side of the 15 amp ignition fuse show up? The grey of the ignition switch plug ?
Any suggestions from here?
She starts if I bypass the starter relay with a jumper.
(yes I know and I have a solenoid push button cover on the way)
Ive swapped the starter relay with the brake light switch and verified its working.
The Run/Off switch is working (fuel pump tells me so)
I metered the push button start switch at the Deutsch connector under the nacelle and it shorts between the Black/red and grey wire when pushed.
I have continuity on the black/red from the Deutsch connector to the relay and from the grey at the connector to one side of the 15amp ignition fuse.
This is where Im lost where does the other side of the 15 amp ignition fuse show up? The grey of the ignition switch plug ?
Any suggestions from here?
Thread Starter
|
Road Warrior
Joined: Apr 2018
Posts: 1,347
Likes: 820
From: Moneta, Virginia
Ha ha, Ive got a service manual!
I did check the ignition switch, I have 12.6v on all 3 terminals when the switch is on.
What does the turn signal/security module have to do with the starter circuit ?
Its where the other side of the ignition fuse goes!
I did check the ignition switch, I have 12.6v on all 3 terminals when the switch is on.
What does the turn signal/security module have to do with the starter circuit ?
Its where the other side of the ignition fuse goes!
Thread Starter
|
Road Warrior
Joined: Apr 2018
Posts: 1,347
Likes: 820
From: Moneta, Virginia
Pin 2 at the ts/s module connector (grey from ignition fuse) has 12.4v when ignition switch is turned on
also when ignition switch is turned on the run/stop switch doesnt affect the 12v
Im at a loss what to check next
Im at a loss what to check next
Last edited by GOGOBECK; Nov 14, 2023 at 01:37 PM.
Thread Starter
|
Road Warrior
Joined: Apr 2018
Posts: 1,347
Likes: 820
From: Moneta, Virginia
I get 12 ohms resistance with the ignition switch off, 30 ohms w/ switch on. No change when I press the start switch
Trending Topics
Club Member
Joined: Apr 2013
Posts: 7,681
Likes: 8,413
From: Utah

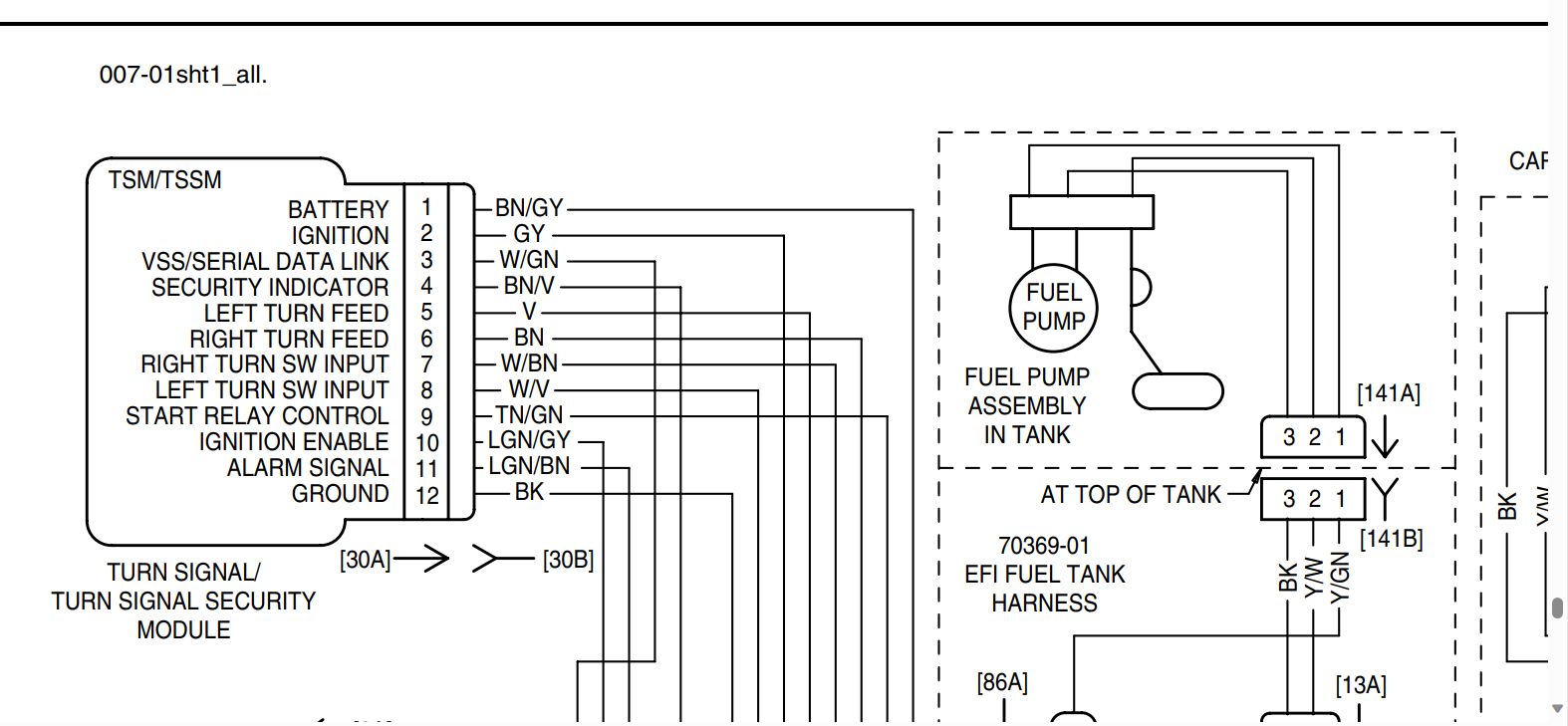

With everything connected can you find a way to ground the TN/GN wire and see if the starter button works?
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
7 Surprising Harley-Davidson Products that Are Not Motorcycles
Verdad Gallardo
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Seasoned HDF Member
Joined: May 2008
Posts: 21,143
Likes: 12,707
From: South Carolina

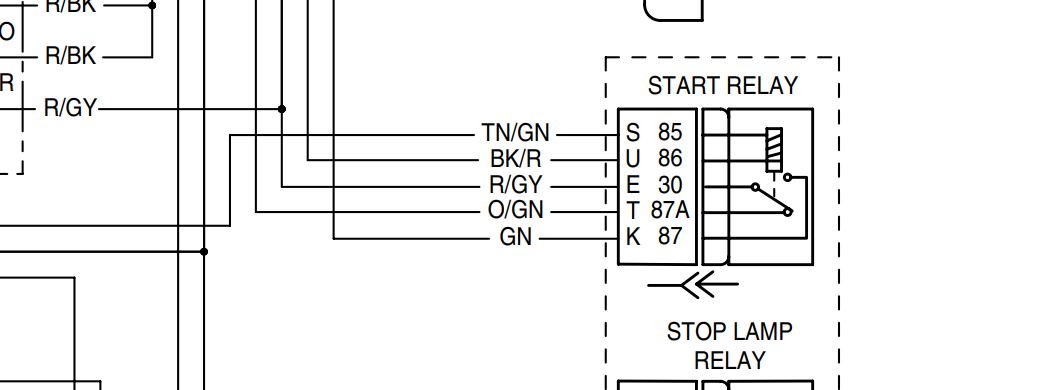

Remove the starter relay, read voltage at the connector where pin 86 goes when the start button is pressed (Black/Red wire).
What is the voltage?

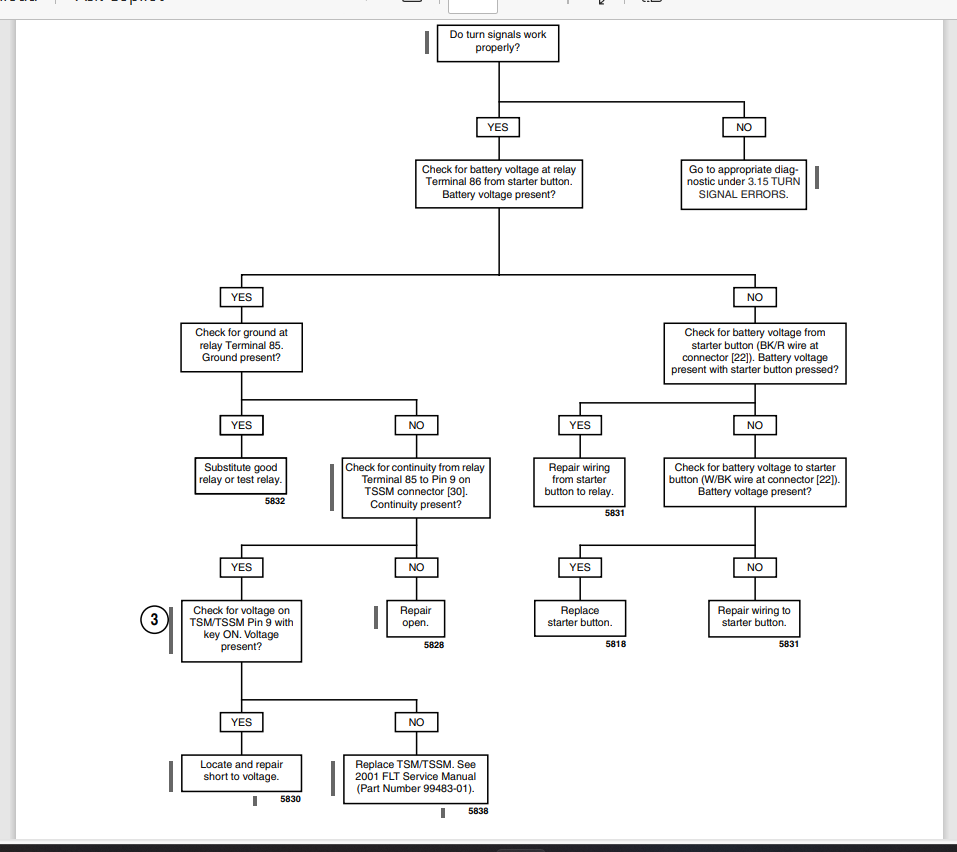

This is the diagram for the starting circuit:
Starting Circuit
What is the voltage?
This is the diagram for the starting circuit:
Starting Circuit
Last edited by Dan89FLSTC; Nov 14, 2023 at 04:55 PM.
Thread Starter
|
Road Warrior
Joined: Apr 2018
Posts: 1,347
Likes: 820
From: Moneta, Virginia
[QUOTE=Dan89FLSTC;21453952]Remove the starter relay, read voltage at the connector where pin 86 goes when the start button is pressed (Black/Red wire).
What is the voltage?
This is the diagram for the starting circuit:
Starting Circuit[/QUOTE
I get no voltage on pin 86
