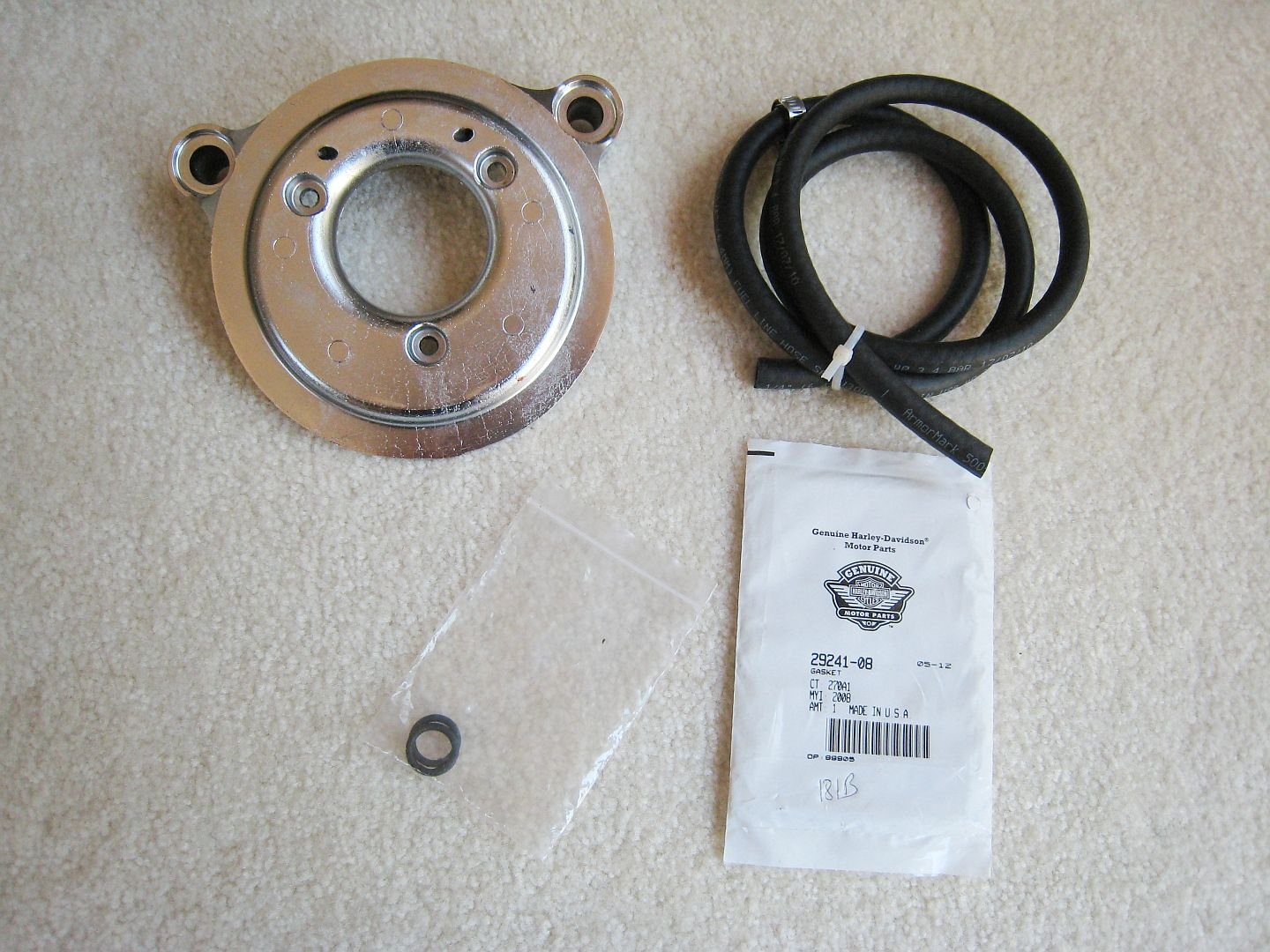

This unused breather bypass uses a pre-owned chrome back plate from SE High Flow air cleaner kit 29260-08. It will fit ’08 thru ’13 twin cam touring bikes with that kit already installed by replacing only the back plate. For models not similarly equipped the parts needed to complete the installation are shown on the diagram part list. The installed bypass is designed so that the hose can be routed Under the tank toward the front of the bike. That makes the whole bypass virtually invisible. Included parts: 1 chrome backplate modified for by pass, 4 ft length fuel hose, 2 o rings, 1 gasket. 1 Hose clamp. Price $75 plus shipping CONUS.



Will this fit on a 2014 RK using the Stage I SE air Cleaner 29400129? I ask because the filters are the same and so is the gasket going to the induction module. The backplates look the same.



It probably will. As far as I know the 29239-08 backplate used for this breather bypass matches the one for the 29400129 kit for '14 and newer touring models. It'll probably fit the SE 29400233 and SE 29400234 kits as well.



Are the vent holes on the air cleaner side of the backing plate blocked with JB Weld or something?



Holes are blocked with Permatex Ultra Black which is oil/gas resistant.



TY

Bump to the top



available



Do you still have it?



I still have it. But if it's for a 2014 it might not work for you. That's because HD changed the SE backplate for the bigger round
filter cover starting in 2014. The newer SE backplate lowers the cover a little so it won't hit the fuel tank. The filter's the same as
pre-'14 s. And the older SE backplate fits as well. But not with the big round cover. Just the football one.



Ok thanks
