2018 Breakout 114 Headlight Upgrade

Reply Subscribe

Thread Tools

Search this Thread

Jan 30, 2019 | 08:08 PM

#11

Superdog3:16

Outstanding HDF Member

Joined: Nov 2018

Posts: 3,421

Likes: 726

From: Tiffin,Oh

I got to thinking about this AGAIN .lol. 2 things:
I don't think it would be that hard to Fab a bracket to make the switch. Prime and paint, won't see it anyway?
Use a 90° drill and tap a hole in the lower to accept the typical bucket mount? If ya ever wanted to go back, you'd never see or at least notice the hole under the OEM anyway?

Jan 31, 2019 | 03:12 PM

#12

Superdog3:16

Outstanding HDF Member

Joined: Nov 2018

Posts: 3,421

Likes: 726

From: Tiffin,Oh

Upon going out and looking at the triple tree, I was wrong. Not really room to drill and tap a hole in the lower.

Feb 14, 2019 | 05:11 PM

#13

Merwin121

Thread Starter

Novice

Joined: Jul 2018

Posts: 17

Likes: 4

From: Massachusetts

Hey Mchad, do you know where I can find the schematics for the 2018 Breakout Headlight connector?

I'm moving forward with the headlight upgrade to the JW Speaker 8791 Adaptive 2. I have the bracket being fabricated now. I want to see how I have to wire the new headlight with the existing connector on the bike.

Thanks!
Merwin

Feb 19, 2019 | 04:49 PM

#14

Superdog3:16

Outstanding HDF Member

Joined: Nov 2018

Posts: 3,421

Likes: 726

From: Tiffin,Oh

Keep it n touch with your project. I'm interested too. Maybe show a pic of the fabbed bracket b4 install? I'm not spring in that much for the headlamp though!!!

Feb 19, 2019 | 06:02 PM

#15

Mchad

Club Member

Joined: Dec 2014

Posts: 10,734

Likes: 3,755

From: SWFL

Quote:

Originally Posted by Merwin121

Sorry, I wasn’t subscribed to this so I didn’t see this until now. It’s in the service manual, if you don’t have one, you should get one. I have one and can take a look but I’m not home and can’t get it until later/tomorrow if you haven’t already found it.

Feb 19, 2019 | 10:52 PM

#16

Superdog3:16

Outstanding HDF Member

Joined: Nov 2018

Posts: 3,421

Likes: 726

From: Tiffin,Oh

Quote:

Originally Posted by Merwin121

Sorta surprised it won't be plug n play, but IDK. You could always take a meter and test at the plug. Low/running, then high beam? Ground will have continuity to the negative battery post/chassis.

Feb 20, 2019 | 05:54 AM

#17

Mchad

Club Member

Joined: Dec 2014

Posts: 10,734

Likes: 3,755

From: SWFL

Quote:

Originally Posted by Merwin121

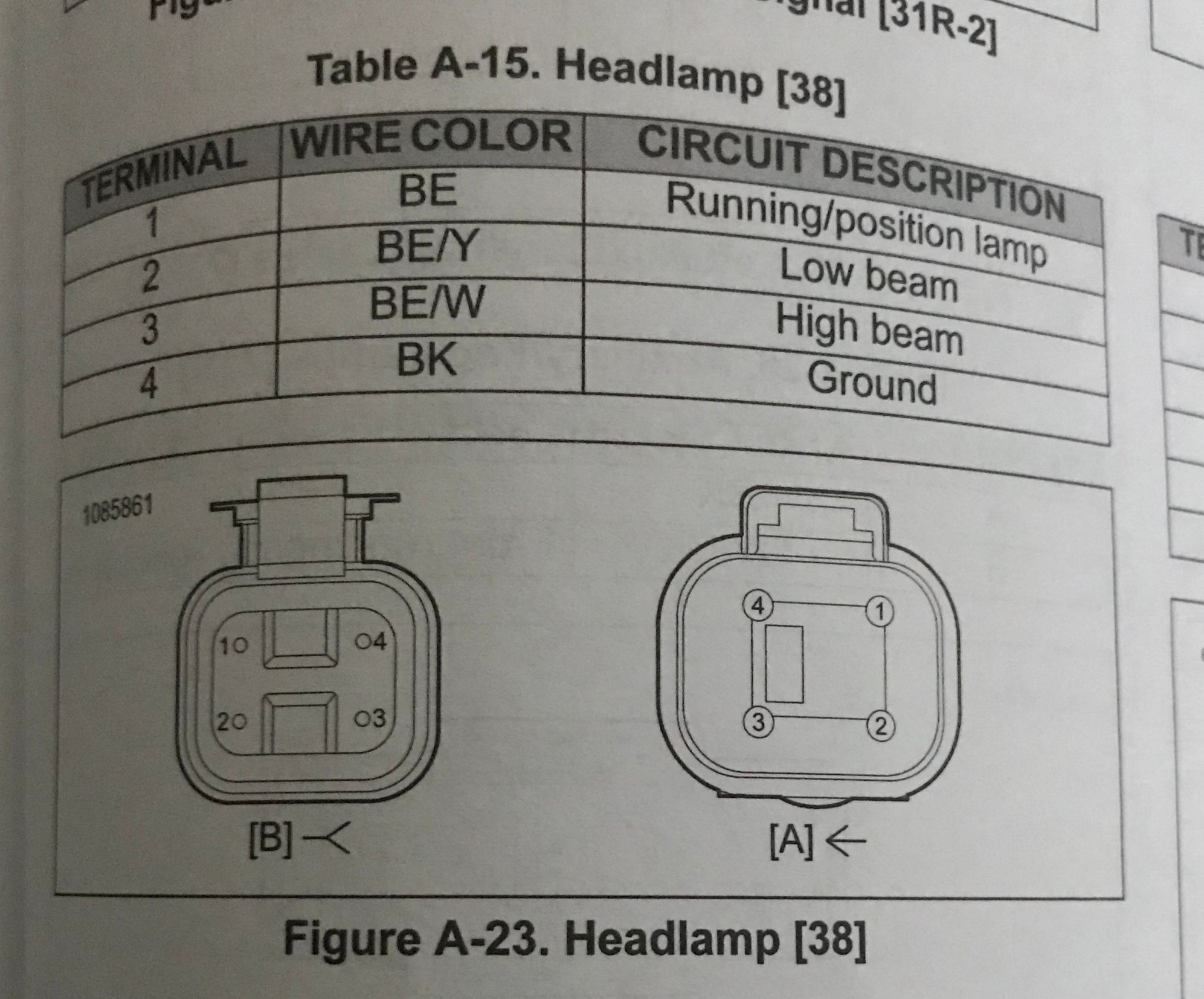

Here,

And here are the pn’s for the connectors if you can’t reuse the harness.

https://shop.outpostalaska.com/OEMpa...AMP_-_FXBR,_FX

Last edited by Mchad; Feb 20, 2019 at 06:00 AM.

Feb 20, 2019 | 06:04 AM

#18

Mchad

Club Member

Joined: Dec 2014

Posts: 10,734

Likes: 3,755

From: SWFL

Quote:

Originally Posted by 58jdn58@gmail.com

Sorta surprised it won't be plug n play, but IDK. You could always take a meter and test at the plug. Low/running, then high beam? Ground will have continuity to the negative battery post/chassis.

The headlight is a sealed unit. If he wants to replace it with a standard round bucket he’ll need to fabricate wiring harness unless he can get a bucket from a Low Rider or street bob. Those would probably just plug into the connector in the frame.

HD Forum Stories

The Best of Harley-Davidson for Lifelong Riders

7 Times Harley-Davidson Chucked Tradition Out the Window

Verdad Gallardo

7 Surprising Harley-Davidson Products that Are Not Motorcycles

Verdad Gallardo

8 Best Harley-Davidson Motorcycles Ever

Pouria Savadkouei

10 Worst Harley-Davidson Motorcycles Ever

Pouria Savadkouei

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

Verdad Gallardo

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

Verdad Gallardo

Harley-Davidson Reveals Super Cool Cafe Racer Concept

Verdad Gallardo

Engraved Rebellion: Inside Bundnerbike's Glam Rock II

Verdad Gallardo

10 Motorcycles You Should Never Buy

Joe Kucinski

10 Things Harley-Davidson Needs to Fix in 2026

Verdad Gallardo

Feb 22, 2019 | 04:34 AM

#19

Merwin121

Thread Starter

Novice

Joined: Jul 2018

Posts: 17

Likes: 4

From: Massachusetts

Hi Mchad,

Thanks for the info. That's very helpful. I'm going to stop by the dealer this weekend and pickup (or order) a service manual. I forgot all about those.

I need to make my own cable harness, as the new headlight is not connectorized.

I'll post pictures when complete.

By any chance, have you installed heated hand grips on this particular bike?

Thanks,
Merwin

Feb 22, 2019 | 05:13 AM

#20

Mchad

Club Member

Joined: Dec 2014

Posts: 10,734

Likes: 3,755

From: SWFL

Quote:

Originally Posted by Merwin121

Hi Mchad,

Thanks for the info. That's very helpful. I'm going to stop by the dealer this weekend and pickup (or order) a service manual. I forgot all about those.

I need to make my own cable harness, as the new headlight is not connectorized.

I'll post pictures when complete.

By any chance, have you installed heated hand grips on this particular bike?

Thanks,
Merwin

No, And each and every time I install bars I think to myseld "should I install heated grips?" and I never do. And I always regret it. I think there's probably a psychological diagnosis for that, but who knows. I'm toying with changing the bars on my road king, and if I do, for sure this time I will. It's my mostly winter bike anyway...
