Fried another voltage regulator
Thread Starter
|
Intermediate
Joined: Mar 2018
Posts: 35
Likes: 6
From: Las Vegas
Heat Shrink & a Heat Gun.
Red goes to BCM should just be able to splice into the red wire that is already there that goes from the BCM to the Voltage Regulator. Make it easy on yourself and splice down where the regulator wires are near the voltage regulator, leaving enough slack to heat shrink and zip tie with some anti chafe tubing if there is not some there from the OEM installation.
Red goes to BCM should just be able to splice into the red wire that is already there that goes from the BCM to the Voltage Regulator. Make it easy on yourself and splice down where the regulator wires are near the voltage regulator, leaving enough slack to heat shrink and zip tie with some anti chafe tubing if there is not some there from the OEM installation.
but part of me what's the do the right way and open up the wiring harness and replace the entire wire from the voltage regulator the ecu/ehcu/bcm or where ever it leads to
Last edited by jweezy; Mar 3, 2023 at 05:40 AM.
Seasoned HDF Member
Joined: Aug 2006
Posts: 24,496
Likes: 30,783
From: Pennsylvania

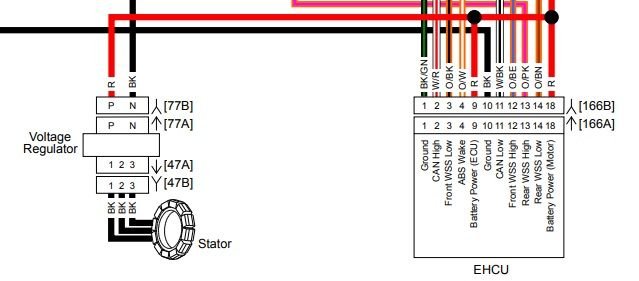

And where does it show the hookup to the voltage regulator, BCM or ECM?
Seasoned HDF Member
Joined: Mar 2021
Posts: 18,280
Likes: 3,687
From: backwoods
People think soldering is the best. But there is a lot of discussion out there about it cracking. You crimp and tug on a conncection, it is good. Heat shrink it too
Everything on your bike is crimped at the factory.
I've replaced this connector before. I am pretty sure the wires are colored. Don't worry about wiring diagram for two colored wires. You will see when you cut, if not worry about it. Strip the out cable back and you will see. If they are colored and match the new wires good to go. If not one is postive and ones is negative going back to battery.
Everything on your bike is crimped at the factory.
I've replaced this connector before. I am pretty sure the wires are colored. Don't worry about wiring diagram for two colored wires. You will see when you cut, if not worry about it. Strip the out cable back and you will see. If they are colored and match the new wires good to go. If not one is postive and ones is negative going back to battery.
Last edited by Rounders; Mar 3, 2023 at 06:42 AM.
Seasoned HDF Member
Joined: May 2018
Posts: 5,814
Likes: 7,146
From: Las Vegas
People think soldering is the best. But there is a lot of discussion out there about it cracking. You crimp and tug on a conncection, it is good. Heat shrink it too
Everything on your bike is crimped at the factory.
I've replaced this connector before. I am pretty sure the wires are colored. Don't worry about wiring diagram for two colored wires. You will see when you cut, if not worry about it. Strip the out cable back and you will see. If they are colored and match the new wires good to go. If not one is postive and ones is negative going back to battery.
Everything on your bike is crimped at the factory.
I've replaced this connector before. I am pretty sure the wires are colored. Don't worry about wiring diagram for two colored wires. You will see when you cut, if not worry about it. Strip the out cable back and you will see. If they are colored and match the new wires good to go. If not one is postive and ones is negative going back to battery.
Seasoned HDF Member
Joined: Mar 2021
Posts: 18,280
Likes: 3,687
From: backwoods
Do your own research, and just think about it. Everything on your bike is crimped. Try pulling a part a crimp.
Seasoned HDF Member
Joined: May 2018
Posts: 5,814
Likes: 7,146
From: Las Vegas
Other than circuit boards and electronics, what is soldered? Everything on your bike is crimped. Nuke plants are crimped. The concern is solder can crack from vibration.
Do your own research, and just think about it. Everything on your bike is crimped. Try pulling a part a crimp.
Do your own research, and just think about it. Everything on your bike is crimped. Try pulling a part a crimp.
Seasoned HDF Member
Joined: Mar 2021
Posts: 18,280
Likes: 3,687
From: backwoods
I've replaced this before on my bike. Volt reg was off so many times connector cracked. On my year, Harley sold 12-18" pig tail. It goes into the main harness on my year, so no choice but to splice.
World uses crimped connections.
Last edited by Rounders; Mar 3, 2023 at 07:26 AM.
