Make sure you don’t have any insulation caught in your green wire connection.
Gotta have only bare copper in there. (Yes, I’m grasping at straws now...)

Oct 17, 2018 | 05:19 AM

#32

SgtMic

Outstanding HDF Member

Joined: Apr 2009

Posts: 2,358

Likes: 53

From: WA State

I ordered a new Scoshe harness. Last resort before I go back to stock. LOL

Oct 17, 2018 | 06:53 AM

#33

Respect

Tourer

Joined: Aug 2017

Posts: 279

Likes: 23

From: The Falls

Quote:

Originally Posted by SgtMic

Just installed the microbypass and no change

Can you take a pic of the connections on the deck. Never heard of a 'microbypass'. What are you bypassing?

Oct 17, 2018 | 10:55 AM

#34

SgtMic

Outstanding HDF Member

Joined: Apr 2009

Posts: 2,358

Likes: 53

From: WA State

Quote:

Originally Posted by Respect

Can you take a pic of the connections on the deck. Never heard of a 'microbypass'. What are you bypassing?

https://smile.amazon.com/gp/product/...?ie=UTF8&psc=1
Green to parking brake wire
Blue to remote out wire
Black to black to black

This weekend I'll take the front off again because I'm also wondering is they miswired the HU harness.

Oct 19, 2018 | 05:04 PM

#35

SgtMic

Outstanding HDF Member

Joined: Apr 2009

Posts: 2,358

Likes: 53

From: WA State

If anyone happens to have their fairing off, can you check the wiring to see if it matches mine.
Specifically the locations for ground, parking and reverse camera.
I'm wondering if my parking wire is in the wrong spot.

Oct 19, 2018 | 05:21 PM

#36

SgtMic

Outstanding HDF Member

Joined: Apr 2009

Posts: 2,358

Likes: 53

From: WA State

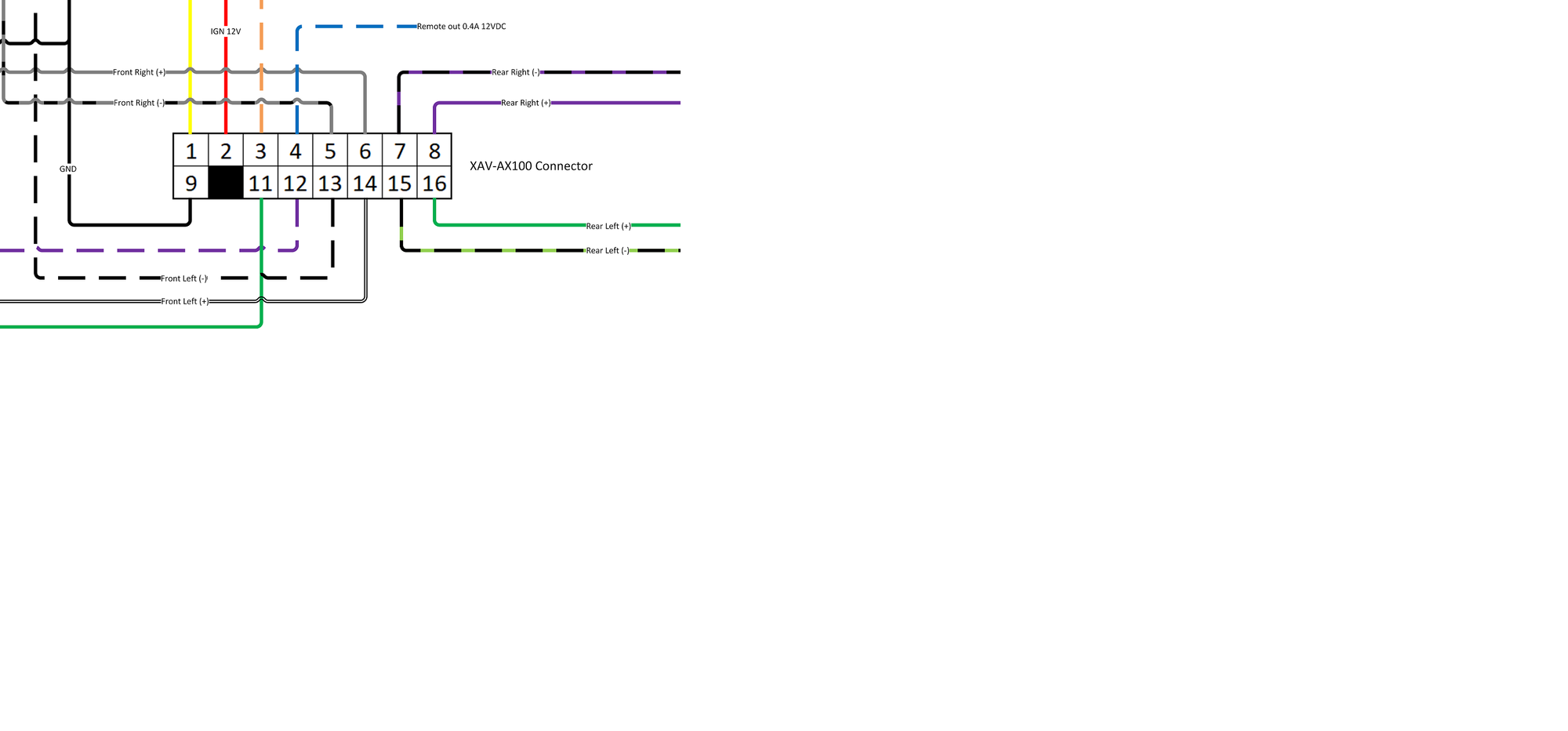

Here is the plug from an AX100 which should be the same. Notice the blank between the ground and parking?
My plug has no blank there, it's after the reverse camera wire.

Oct 20, 2018 | 02:59 PM

#37

Fullbore55

Thread Starter

Grand HDF Member

Joined: Sep 2016

Posts: 3,522

Likes: 3,709

From: South Texas

You might have found the problem. I can’t get inside fairing presently, but will do so at next opportunity and check wiring on ax5000.

Oct 21, 2018 | 05:33 AM

#38

Respect

Tourer

Joined: Aug 2017

Posts: 279

Likes: 23

From: The Falls

Quote:

Originally Posted by SgtMic

Sorry I didn't catch this earlier. I don't know wtf that thing is but I know one thing, you don't need it. All you do is ground the green wire to a KNOWN GOOD GROUND and it's done man. I've installed 12-14 of these so far on bikes ranging from '08 beat up dogs to my own brand new bike, same green-to-ground each time and it just works. Obviously the HU ground needs to be good too, as with the 12V constant and swtiched need to be good power.

About the main wire harness, I can tell you this much, DON'T TRUST anyones wiring if it came pre-wired. The very first HU I bought came with a pre-wired Scosche adapter and when I plugged it in it SMOKED. Dumb-asses wired it wrong. But I'm the real dumbass for not checking.

HD Forum Stories

The Best of Harley-Davidson for Lifelong Riders

Harley-Davidson Fat Boy Becomes a Dark, Decepticon-Inspired Custom

Verdad Gallardo

6 Weirdest Harley-Davidsons Ever Sold to the Public

Verdad Gallardo

7 Times Harley-Davidson Chucked Tradition Out the Window

Verdad Gallardo

7 Surprising Harley-Davidson Products that Are Not Motorcycles

Verdad Gallardo

8 Best Harley-Davidson Motorcycles Ever

Pouria Savadkouei

10 Worst Harley-Davidson Motorcycles Ever

Pouria Savadkouei

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

Verdad Gallardo

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

Verdad Gallardo

Harley-Davidson Reveals Super Cool Cafe Racer Concept

Verdad Gallardo

Engraved Rebellion: Inside Bundnerbike's Glam Rock II

Verdad Gallardo

Oct 21, 2018 | 08:23 AM

#39

Respect

Tourer

Joined: Aug 2017

Posts: 279

Likes: 23

From: The Falls

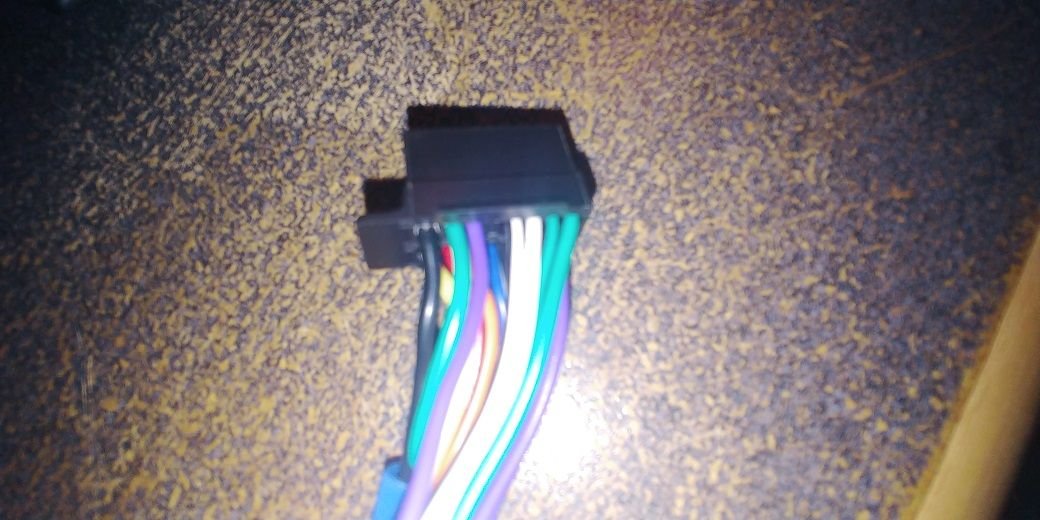

Quote:
