Troubleshooting audio system
Thread Starter
|
Stage III
Joined: Jun 2018
Posts: 3
Likes: 0
From: NC
Troubleshooting audio system
I am trying to determine where and when I should have have voltage at the speakers and the speaker switch on the control panel of my 09 Ultra.

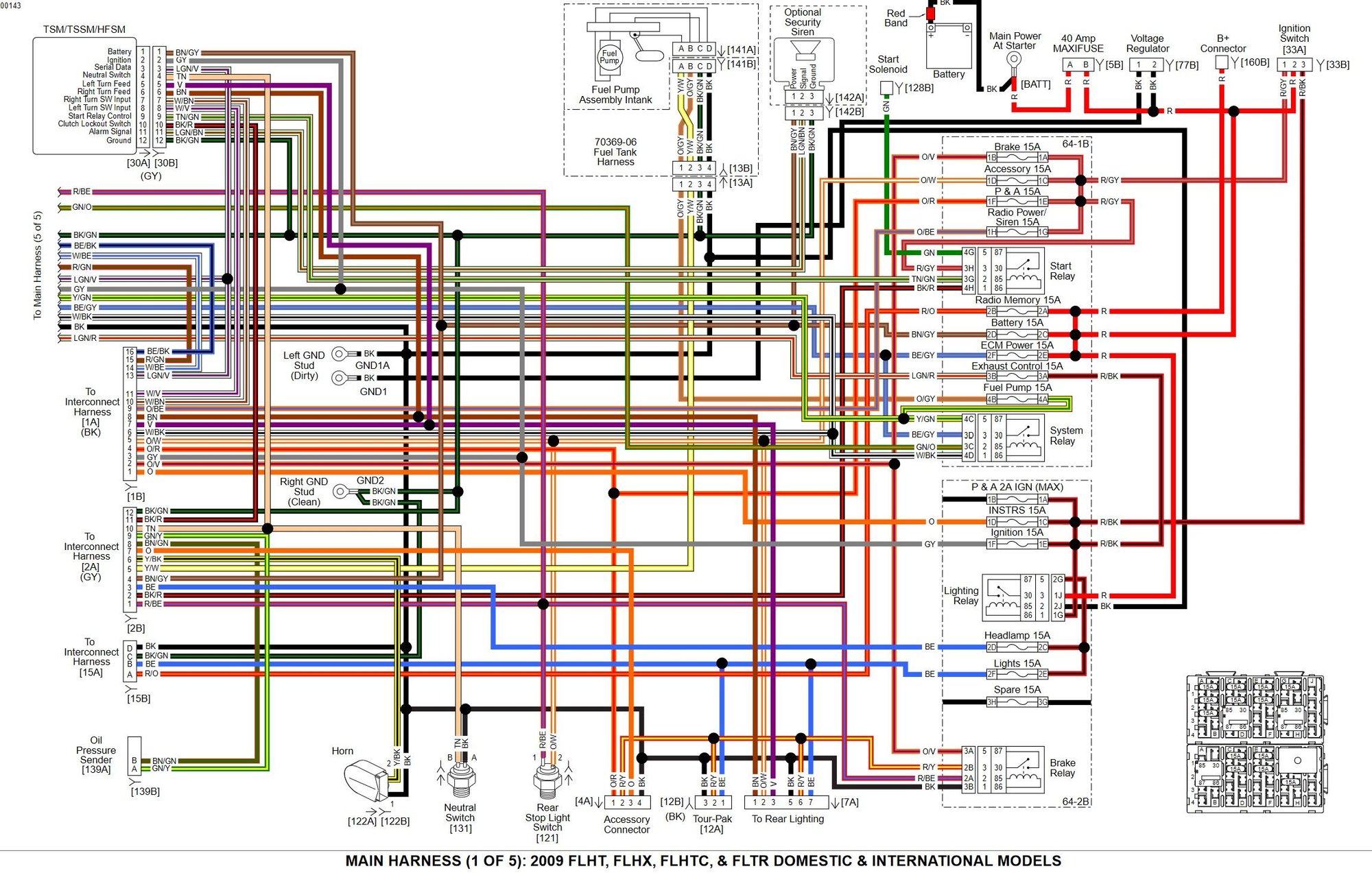

I need a printable diagram or something to reference.
The radio was intermittent, I could toggle the switch and it would work for a bit and then drop out again now I got nothing. I have voltage at the switch but not sure it is where it should be when toggling.
Should I have continuity between the switch and the speakers?
Help! Thanks in advance.
I need a printable diagram or something to reference.
The radio was intermittent, I could toggle the switch and it would work for a bit and then drop out again now I got nothing. I have voltage at the switch but not sure it is where it should be when toggling.
Should I have continuity between the switch and the speakers?
Help! Thanks in advance.
Stellar HDF Member
Joined: Aug 2014
Posts: 2,844
Likes: 574
From: Lockport Illinois
Just an FYI when checking voltage at the speakers and switches the signal is
AC VOLTAGE.. going to the speakers.
When diagnosing the output of the system use a steady 1k hz test tone so there is little to no variation
AC VOLTAGE.. going to the speakers.
When diagnosing the output of the system use a steady 1k hz test tone so there is little to no variation
