Help With Triple Tree Upper Clamp Riser Bolts
Help With Triple Tree Upper Clamp Riser Bolts
Hey guys, I need some quick help with my '09 Street Bob. Basically I am replacing the Triple Tree Upper Clamp so I can put on my Fat Bob Risers and Drag Bars (see origial post here). I ordered and have the upper clamp, risers and bars but unfortunately I do not have the bolts that connect the rises to the triple tree upper clamp. I'm looking for the name of these bolts and/or an HD part number if possible.
I'm not sure how well I am explaining this so please take a look at the two images below...

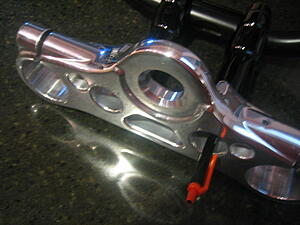

I need the two bolts that hold the risers in place, where the pen is in the second image. Unfortunately the risers are molded into the '09 Street Bob upper clamp so my bike doesn't have these bolts.
I'm not sure how well I am explaining this so please take a look at the two images below...
I need the two bolts that hold the risers in place, where the pen is in the second image. Unfortunately the risers are molded into the '09 Street Bob upper clamp so my bike doesn't have these bolts.
Elite HDF Member
Joined: Jul 2005
Posts: 3,968
Likes: 34
From: Lockport Township, IL
On an '03 Dyna, the bolt is a 1/2 inch - 13. It is 2 & 3/4 inches long and has a hex head. Grade 5. I'd suggest taking one of the risers to Menards or Home depot and finding a bolt with the correct threads. It should be fairly easy to figure out the length you need. Rest the riser on the tripple tree and measure the depth making sure you leave at least 1/8 inch to prevent the bolt from botoming out in the riser.
Outstanding HDF Member
Joined: Aug 2009
Posts: 2,729
Likes: 7
From: Republic of Texas
You will need more than just two bolts. Just locate and purchase a riser insatall kit. Which includes the rubber or neoprene bushings, bolts and washer that you will need.
Take a look here: http://www.jpcycles.com/Search/Searc...mper&x=12&y=16
Take a look here: http://www.jpcycles.com/Search/Searc...mper&x=12&y=16
Last edited by ghostrider69; Oct 7, 2009 at 02:34 PM.
Road Warrior
Joined: May 2008
Posts: 1,380
Likes: 1
From: ,,
On an '03 Dyna, the bolt is a 1/2 inch - 13. It is 2 & 3/4 inches long and has a hex head. Grade 5. I'd suggest taking one of the risers to Menards or Home depot and finding a bolt with the correct threads. It should be fairly easy to figure out the length you need. Rest the riser on the tripple tree and measure the depth making sure you leave at least 1/8 inch to prevent the bolt from botoming out in the riser.
I do this at ACE all the time, they also have Grade 8 in everything I could ever need.
55977-09 - $131.40 - Fat Bob Drag Bars
55996-09 - $101.40 - Fat Bob Risers
45538-08 - $231.65 - Triple Tree Upper Clamp
and I'm trying to track down a riser install kit, I'll post info once I choose/buy one... looking for something local (Houston) as I have a benefit ride this weekend.
Club Member
Joined: Feb 2008
Posts: 11,483
Likes: 39
From: Passaic County, NJ
Either bring one of your risers to a hardware store to match the threads..and the bolt is pretty long. I believe someone said 2.75". That sounds about right.
OR
Go to the dealer and buy the chrome riser bolt kit. $20 or so.
OR
Go to the dealer and buy the chrome riser bolt kit. $20 or so.
Trending Topics
Road Captain
Joined: Apr 2008
Posts: 595
Likes: 1
From: lake havasu
i put new trees on my 08 i just went to the dealer and bought the riser kit think i remember it it only being a couple of bucks ......you can even get it in chrome if you want
