Data Link 2000 Softail

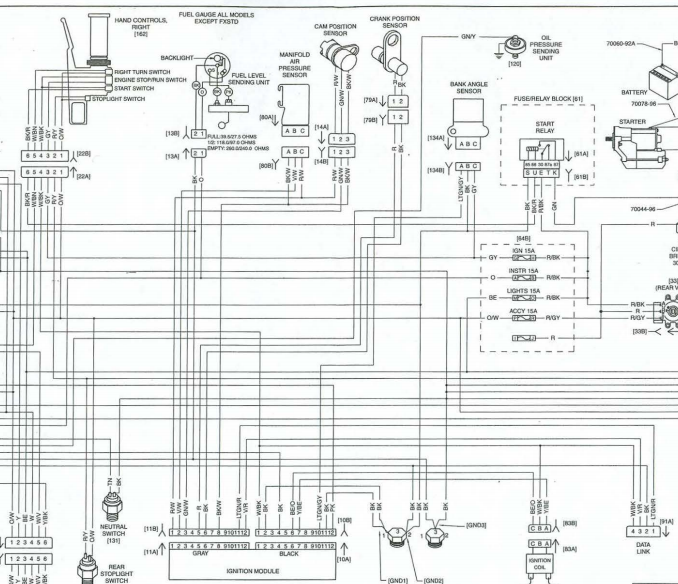

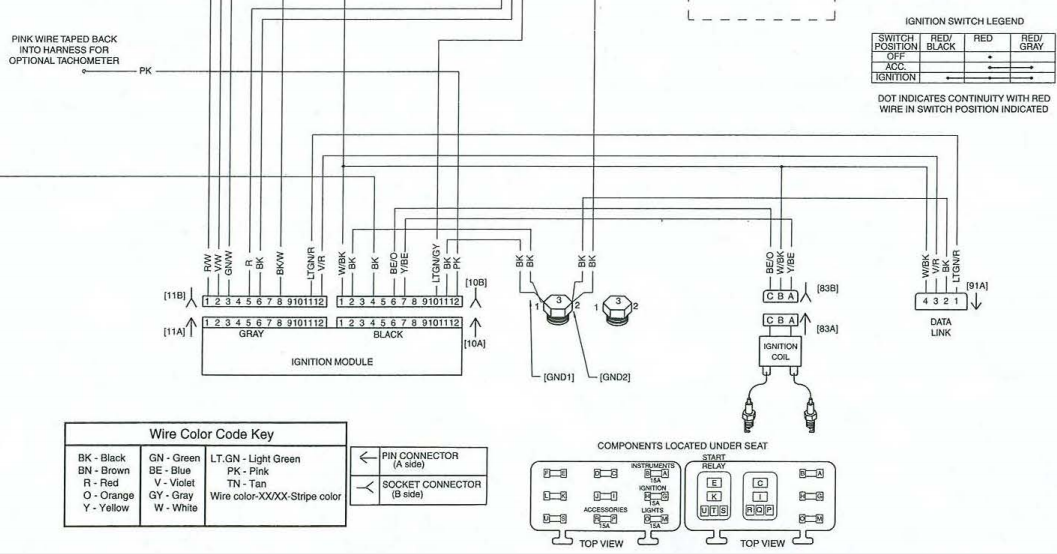

Hi, I am looking for some general info here.On a 2000 softail, I need help identifying the signals. The data link connector has 4 pins. #1 is light grn/red stripe connected to pin 11 of the gray connector of the ign module. # 2 is blk and connected to ground. #3 is labeled V/R and goes to pin 12 of the gray ign module connector. #4 is white with a black stripe and goes to pin 1 of the black ign module connector. What is the signal on pins 1,3,&4 of the data link ?

Thanks

Aug 28, 2021 | 08:34 PM

Zanthamos

Outstanding HDF Member

Joined: Feb 2015

Posts: 2,414

Likes: 433

From: Arkansas

On the 2000 the data connector just links the ECU to the Scanalliser tool that most HD dealerships no longer have it wasn't until 2004 that other items were put on the data bus.

Aug 29, 2021 | 09:58 AM

CarlosGGodfrog

Thread Starter

Road Captain

Joined: Apr 2015

Posts: 631

Likes: 180

From: Menomonee Falls, Wi

Thanks, I have a scan tool, I am just looking for the signal designation. What does V/R stand for ?

Aug 29, 2021 | 07:43 PM

Zanthamos

Outstanding HDF Member

Joined: Feb 2015

Posts: 2,414

Likes: 433

From: Arkansas

As in color code? Violet with a Red stripe.

Aug 30, 2021 | 11:31 AM

Vernal

Club Member

Joined: Apr 2013

Posts: 7,675

Likes: 8,401

From: Utah

Quote:

Originally Posted by Carlos G Godfrog

Quote:

Originally Posted by Zanthamos

As in color code? Violet with a Red stripe.

The W/BK is 12V from the Off/Run switch but I don't know what the LTGN/R or V/R are. Maybe Z can tell us?

Aug 30, 2021 | 10:19 PM

Zanthamos

Outstanding HDF Member

Joined: Feb 2015

Posts: 2,414

Likes: 433

From: Arkansas

BK is ground, WHT/BK is ignition power, LTG/R is the Serial data wire and the V/R is the Flash PIN wire.

Last edited by Zanthamos; Aug 30, 2021 at 10:26 PM.

Aug 31, 2021 | 07:38 AM

CarlosGGodfrog

Thread Starter

Road Captain

Joined: Apr 2015

Posts: 631

Likes: 180

From: Menomonee Falls, Wi

Great, thank you.

7 Surprising Harley-Davidson Products that Are Not Motorcycles

Verdad Gallardo

8 Best Harley-Davidson Motorcycles Ever

Pouria Savadkouei

10 Worst Harley-Davidson Motorcycles Ever

Pouria Savadkouei

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

Verdad Gallardo

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

Verdad Gallardo

Harley-Davidson Reveals Super Cool Cafe Racer Concept

Verdad Gallardo

Engraved Rebellion: Inside Bundnerbike's Glam Rock II

Verdad Gallardo

10 Motorcycles You Should Never Buy

Joe Kucinski

10 Things Harley-Davidson Needs to Fix in 2026

Verdad Gallardo

Southpaw Super Glide: A Left-Hand-Drive 1979 Harley FXE Built to Fit the Rider

Verdad Gallardo

Nov 25, 2024 | 07:15 AM

FXD2003Rider

Administrator Emeritus

Joined: Feb 2007

Posts: 9,192

Likes: 965

From: Harmelen (The Netherlands, Europe)

Quote:

Originally Posted by Max9

Question for my Dyna 2002: Can I use the BK mass and WHT/BK ignition power for accessories power?
For example, charging my phone with a USB charger to 5 volts

That has been done by other Dyna owners.

Here;s another IMO more secure and safe option though...

Quote:

Originally Posted by FXD2003Rider

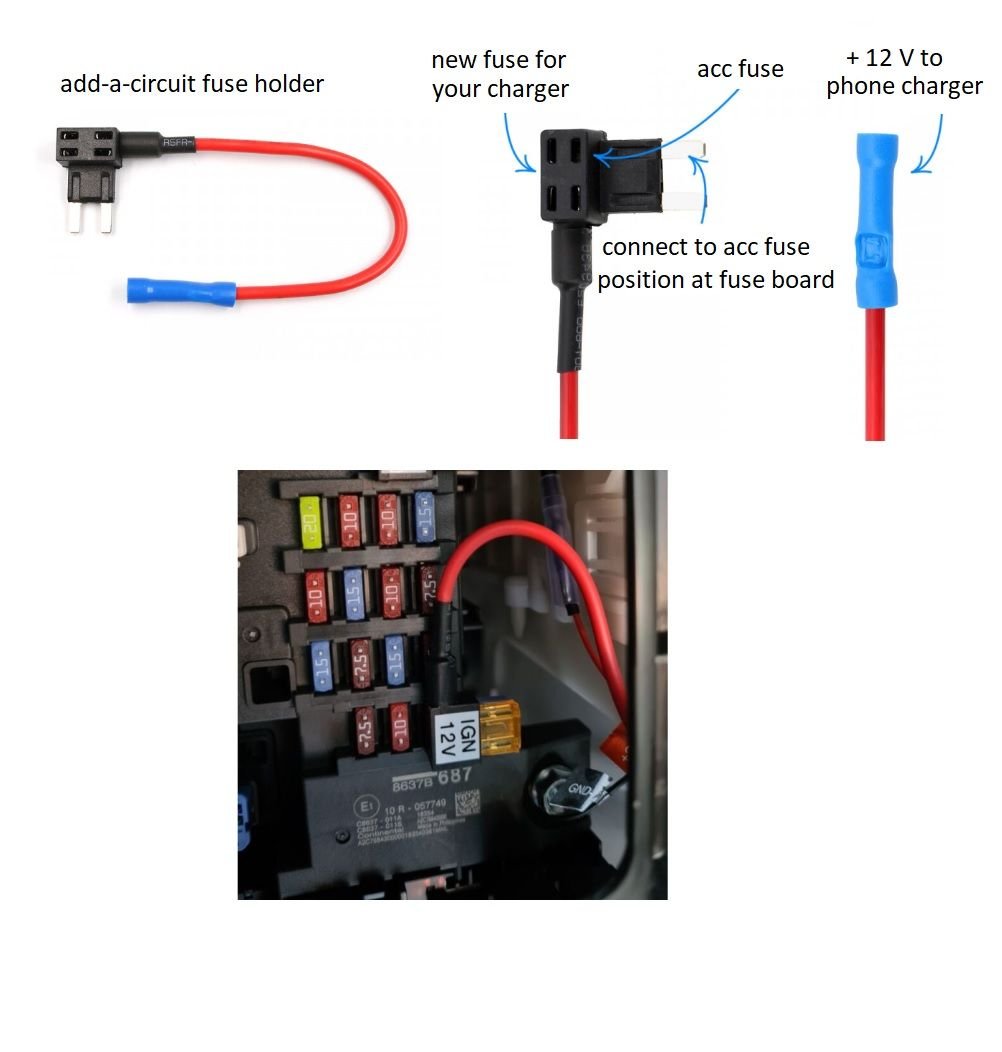

Here's how to create a switched and fused 12 volt connection for your phone charger without splicing into the harness.
A ground connection for the charger can be found under the seat or at the upper tripple tree.
