Default 08 ABS wiring harness

I am trying to trouble shoot abs wiring on my 08 UC . I have bin told the wire breaks at the front of the frame by the grease fitting , but want to know where the wire ends coming out of the harness ? I thought at the molex connector by the abs module . but not sure , I want to check the continuty of the wires before i split the harness open ! I have the electrical manual but cannot figure it out THANKS !!!!

Reply
Old Jan 4, 2025 | 08:46 AM
  #2
FXD2003Rider's Avatar
FXD2003Rider
Administrator Emeritus
Veteran: Army
15 Year Member
Liked
Community Favorite
Joined: Feb 2007
Posts: 9,206
Likes: 970
From: Harmelen (The Netherlands, Europe)
Riders Club Member
Default

Originally Posted by 1957buick
....but want to know where the wire ends coming out of the harness...

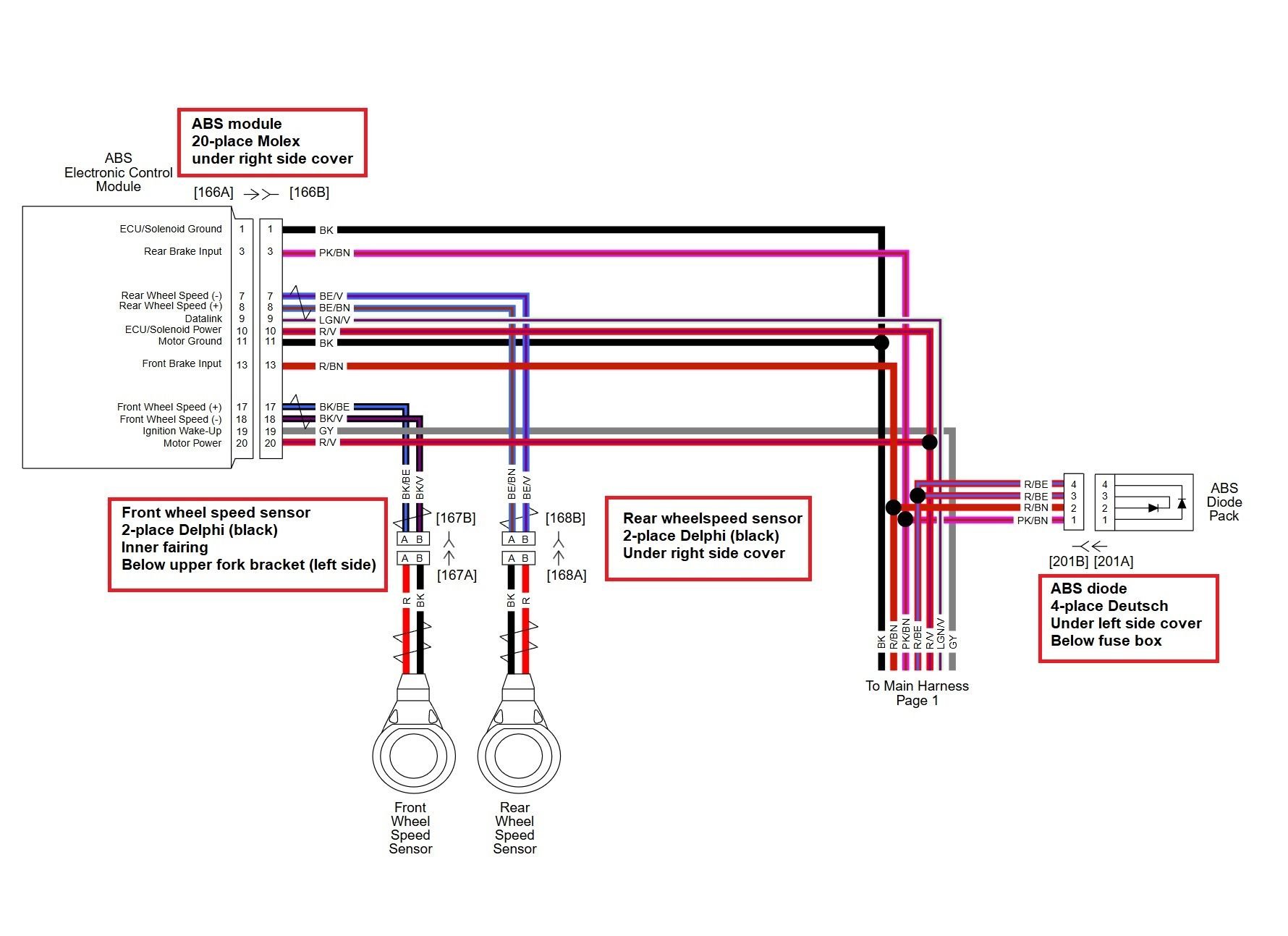

I added the connector locations to the wiring diagram in image below...
