Which stator, RR and rotor
Seasoned HDF Member
Joined: Nov 2006
Posts: 12,878
Likes: 5,449
From: la la land jerzey
[QUOTE=Rob85WG;14504253]I have a 1969 triumph that has a stator, bridge rectifier, zener diode, and a battery. It's stock and there is nothing else in the charging system.
your cheating -- the British like warm beer because they have Lucas refrigerators
your cheating -- the British like warm beer because they have Lucas refrigerators
Tourer
Joined: Aug 2006
Posts: 282
Likes: 7
From: Southern MD
[QUOTE=johnjzjz;14504368]Yes but Harley overbuilt parts so they would still work even after they fell off the bike
Banned
Joined: Jun 2015
Posts: 760
Likes: 3
From: NYC
In general, I'd be ready for German and Japanese parts any day. I've seen inside a few Porsche engines etc and the Japanese seem to be a great deal of attention into getting things right now. Obviously we know that many of the rest of the H-D electrics are made there.
And you can bet anything that does not have a 'Made in' label is made in China and that's why they are hiding it.
The CE rectifier/regulator is a joy to behold. It's about twice the mass of an H-D one and very well finished. Ditto the stator. The kit is very well assembled and the instructions are good enough for a rank beginner to follow.
Apparently the corrosion issue arose after the makers swopped from grease paper to plastic bags which makes sense as what do things is plastic bags do ... especially if they come from hot and humid environments. Sweat and corrode. You would not have seen the Germans or Japanese sending out the H-D rotor though, the Accel ones look much better.
That's why I would want to open a kit in front of me before I bought it to make sure I had a good one. Declining industry standards and the shifting of it to companies 1,000s of miles away are one thing, the domination of marketing by minimum wage box shifting operations will be the end of civilization!
Support your local independent.
Outstanding HDF Member
Joined: Oct 2010
Posts: 2,706
Likes: 14
From: Near Frankenmuth, MI
I put Cycle Electric on my old Evo. The stator has a higher temp rating which means it will not break down like the OEM did in 5K. It's windings develop a higher current output even at an idle, and the voltage regulator is not the short to ground style which force the stator to run at maximum at all times.
That being said I used double star washers on both regulator bolts to make better ground contact. I still had issues. A wise EVO owner suggested a secondary ground wire from the regulator bolt to an engine block bolt. When I installed that wire I suddenly was getting full charging voltage. The wiring and connections were all good but for some reason that additional ground wire made a huge difference.
That being said I used double star washers on both regulator bolts to make better ground contact. I still had issues. A wise EVO owner suggested a secondary ground wire from the regulator bolt to an engine block bolt. When I installed that wire I suddenly was getting full charging voltage. The wiring and connections were all good but for some reason that additional ground wire made a huge difference.
Seasoned HDF Member
Joined: Aug 2007
Posts: 8,200
Likes: 3,089
From: NW AR
OK, a Zener diode, yeah, I'll buy that. But Harley regulators have not been like that for a very long time, if ever. I pulled apart regulators back in shovelhead days, like >30 years ago, and there was a modern integrated circuit voltage regulator inside on a PC board.
Seasoned HDF Member
Joined: Sep 2010
Posts: 10,238
Likes: 799
From: Indiana
Man, you're old.....Hi Doc!
Banned
Joined: Jun 2015
Posts: 760
Likes: 3
From: NYC
Thanks
Outstanding HDF Member
Joined: Oct 2010
Posts: 2,706
Likes: 14
From: Near Frankenmuth, MI
Where it bolts to the frame. I thought it was overkill but in my situation it worked. I was told about this by an Evo experienced mechanic.
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
7 Surprising Harley-Davidson Products that Are Not Motorcycles
Verdad Gallardo
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Tourer
Joined: Aug 2006
Posts: 282
Likes: 7
From: Southern MD

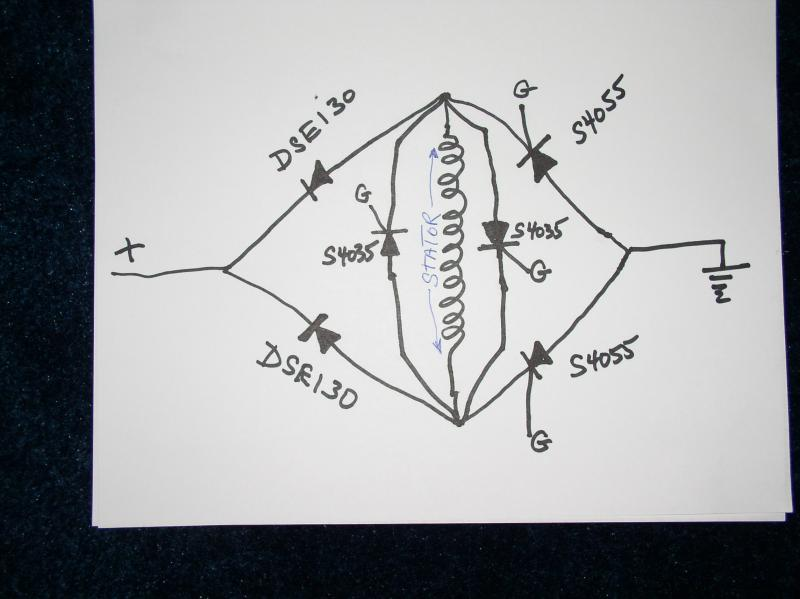

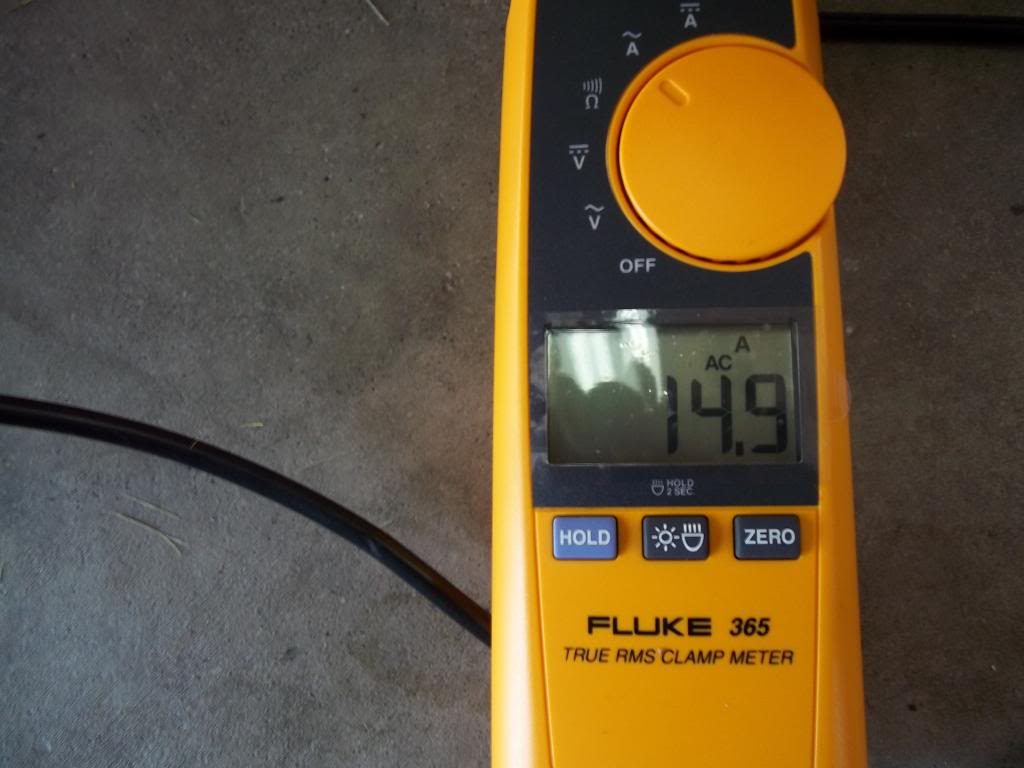

As Dr Hess stated it is easy to measure with a current clamp. I've never done it but a guy on the XL forum did and he has a complete pictorial of his conversion to a series style regulator.
