Old Apr 25, 2021 | 05:06 AM
  #1
EVOrider's Avatar
EVOrider
Thread Starter
|
Stellar HDF Member
Joined: Feb 2007
Posts: 2,558
Likes: 280
From: Russellville, Arkansas
Default Broken Lifter Block

Just as I finished up my own bike....

A friend of mine brought his 1996 Tour Glide in for new lifters, cam, and a Torrington bearing.

Bike has 45,000 miles....first time engine was ever into.

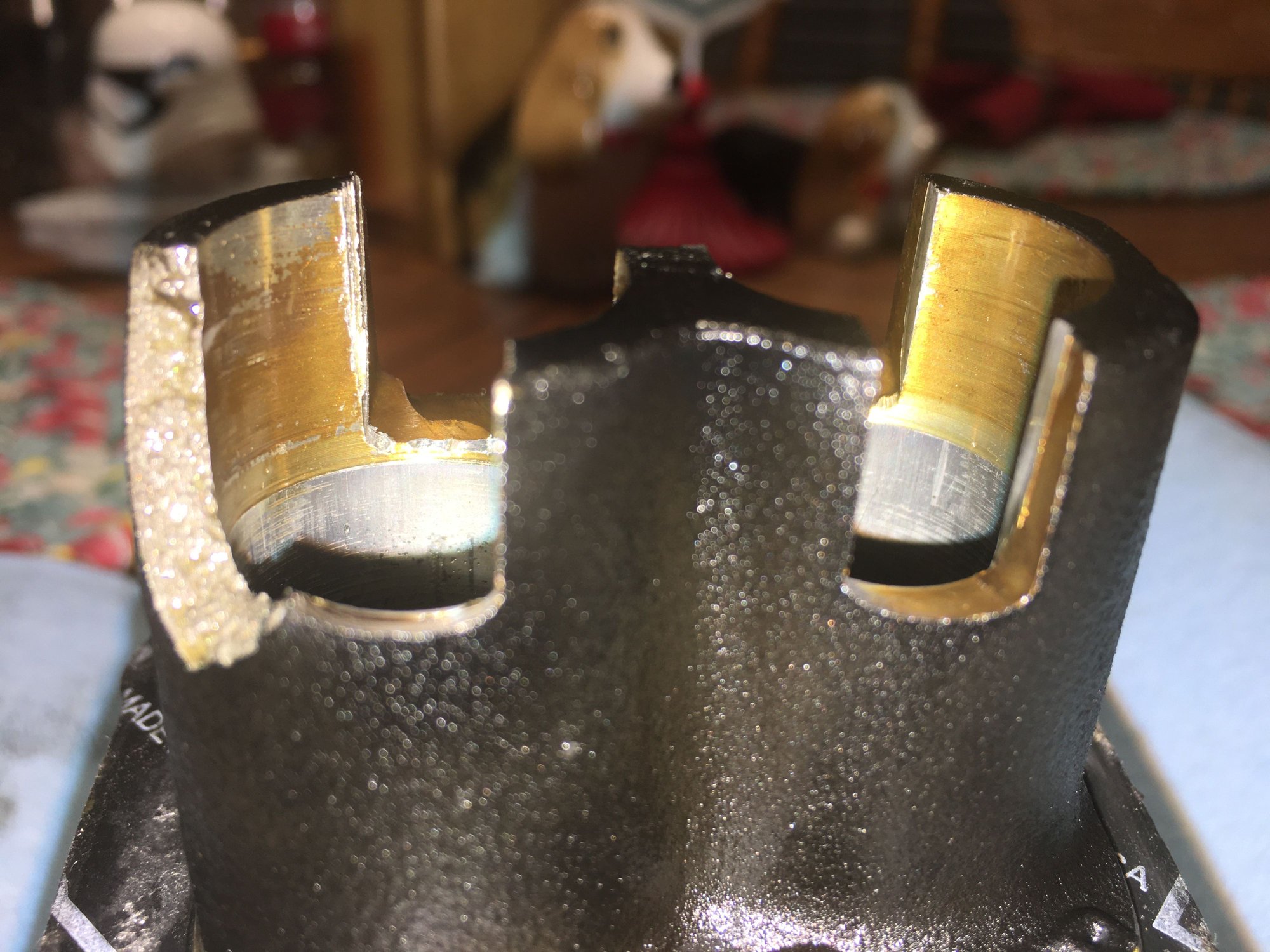

Check out the rear lifter block....


I’ve never seen these break......Glad he brought it in now before it was too late.

Reply
Old Apr 25, 2021 | 06:21 AM
  #2
blumi's Avatar
blumi
Cruiser
Joined: Mar 2017
Posts: 172
Likes: 44
From: Aarau
Default

Aloha,
looks horrible.
Where are the remaining parts of it?
Does it damaged any other parts from the cam drive?

Reply
Old Apr 25, 2021 | 06:36 AM
  #3
EVOrider's Avatar
EVOrider
Thread Starter
|
Stellar HDF Member
Joined: Feb 2007
Posts: 2,558
Likes: 280
From: Russellville, Arkansas
Default

Don’t have the nose cone off yet....will get that off sometime during the week. The rear lifter roller was shot. Once the nose comes off....hopefully the metal chunk didn’t do too much damage in there. Not worried about the cam....new one is going in anyways.

Reply
Old Apr 25, 2021 | 07:48 AM
  #4
RANGER73's Avatar
RANGER73
Club Member
Veteran: Army
Joined: Sep 2010
Posts: 15,429
Likes: 7,122
From: Beyond Fucital
Default

Looks like the pushrods and lifters lash weren't adjusted properly.

Reply
Old Apr 25, 2021 | 08:03 AM
  #5
EVOrider's Avatar
EVOrider
Thread Starter
|
Stellar HDF Member
Joined: Feb 2007
Posts: 2,558
Likes: 280
From: Russellville, Arkansas
Default

Originally Posted by RANGER73
Looks like the pushrods and lifters lash weren't adjusted properly.
Motor has never been touched inside....all 100% factory installed.

Reply
Old Apr 25, 2021 | 08:09 AM
  #6
guido4198's Avatar
guido4198
Grand HDF Member
15 Year Member
Liked
Loved
Community Favorite
Joined: Aug 2008
Posts: 3,599
Likes: 9,913
From: Florida's gorgeous East coast
Default

45,000 mi., never been opened from new..??
Im going to be interested in learning what went that long from the factory and eventually suffered such a failure.
Possible bad casting of the block itself that resulted in a “ fatigue type” failure..??

Reply
Old Apr 25, 2021 | 08:22 AM
  #7
t150vej's Avatar
t150vej
HDF Community Team
20 Year Member
Community Favorite
Top Answer: 3
Joined: Dec 2005
Posts: 5,404
Likes: 2,605
From: NC USA
Community Team
Default

Originally Posted by EVOrider
Just as I finished up my own bike....

A friend of mine brought his 1996 Tour Glide in for new lifters, cam, and a Torrington bearing.

Bike has 45,000 miles....first time engine was ever into.

Check out the rear lifter block....

I’ve never seen these break......Glad he brought it in now before it was too late.
Originally Posted by EVOrider
Motor has never been touched inside....all 100% factory installed.
If it's a '96 and has the Torrington bearing, someone has been in there to install it. It's not factory.

Reply
Old Apr 25, 2021 | 08:26 AM
  #8
Tom84FXST's Avatar
Tom84FXST
Seasoned HDF Member
15 Year Member
Liked
Loved
Community Favorite
Joined: Nov 2009
Posts: 15,705
Likes: 22,718
From: Farmington ,MS
Default

Originally Posted by t150vej
If it's a '96 and has the Torrington bearing, someone has been in there to install it. It's not factory.

Read closer...he brought it in to have one installed...

Reply
