Default How to take apart this adapter
this is ridiculous how difficult is to take apart this tiny adapter and replace it with new, I posted video below


Last edited by falikmike; Jun 21, 2023 at 03:30 AM.
Reply
0
Old Jun 21, 2023 | 03:24 AM
Share
  #2
Andy from Sandy's Avatar
Andy from Sandy
Seasoned HDF Member
Community Influencer
Liked
Top Answer: 3
Top Answer: 5
Joined: Sep 2017
Posts: 12,258
Likes: 4,947
From: England
Default
The link shows it is going to show something by ChristionSchaffer. WTF?

Reply
0
Old Jun 21, 2023 | 03:30 AM
Share
  #3
falikmike's Avatar
falikmike
Thread Starter
|
Tourer
5 Year Member
Joined: Jun 2020
Posts: 477
Likes: 31
From: moon
Default
my bad I updated the video now

Reply
0
Old Jun 21, 2023 | 03:47 AM
Share
  #4
Andy from Sandy's Avatar
Andy from Sandy
Seasoned HDF Member
Community Influencer
Liked
Top Answer: 3
Top Answer: 5
Joined: Sep 2017
Posts: 12,258
Likes: 4,947
From: England
Default
Without a closeup of the connector it does look like a multilock type. At the back of it is a flap or door that needs to be released first.

This link is a picture of a housing with the flap open - https://uk.rs-online.com/web/p/wire-...-plugs/3629165

Reply
0
Old Jun 21, 2023 | 03:49 AM
Share
  #5
falikmike's Avatar
falikmike
Thread Starter
|
Tourer
5 Year Member
Joined: Jun 2020
Posts: 477
Likes: 31
From: moon
Default
Originally Posted by Andy from Sandy
Without a closeup of the connector it does look like a multilock type. At the back of it is a flap or door that needs to be released first.

This link is a picture of a housing with the flap open - https://uk.rs-online.com/web/p/wire-...-plugs/3629165
I doubt it, there is no door I can see

Reply
0
Old Jun 21, 2023 | 03:56 AM
Share
  #6
Andy from Sandy's Avatar
Andy from Sandy
Seasoned HDF Member
Community Influencer
Liked
Top Answer: 3
Top Answer: 5
Joined: Sep 2017
Posts: 12,258
Likes: 4,947
From: England
Default
Post a very good in focus closeup of the connector.

I have to add the usual though that all the connectors used on your bike are described in the service manual.

Reply
0
Old Jun 21, 2023 | 03:57 AM
Share
  #7
falikmike's Avatar
falikmike
Thread Starter
|
Tourer
5 Year Member
Joined: Jun 2020
Posts: 477
Likes: 31
From: moon
Default
Originally Posted by falikmike
I doubt it, there is no door I can see
I can send you manual for my street bob so you can find it but I cant find it inside

Reply
0

Trending Topics

Old Jun 21, 2023 | 04:51 AM
Share
  #8
falikmike's Avatar
falikmike
Thread Starter
|
Tourer
5 Year Member
Joined: Jun 2020
Posts: 477
Likes: 31
From: moon
Default

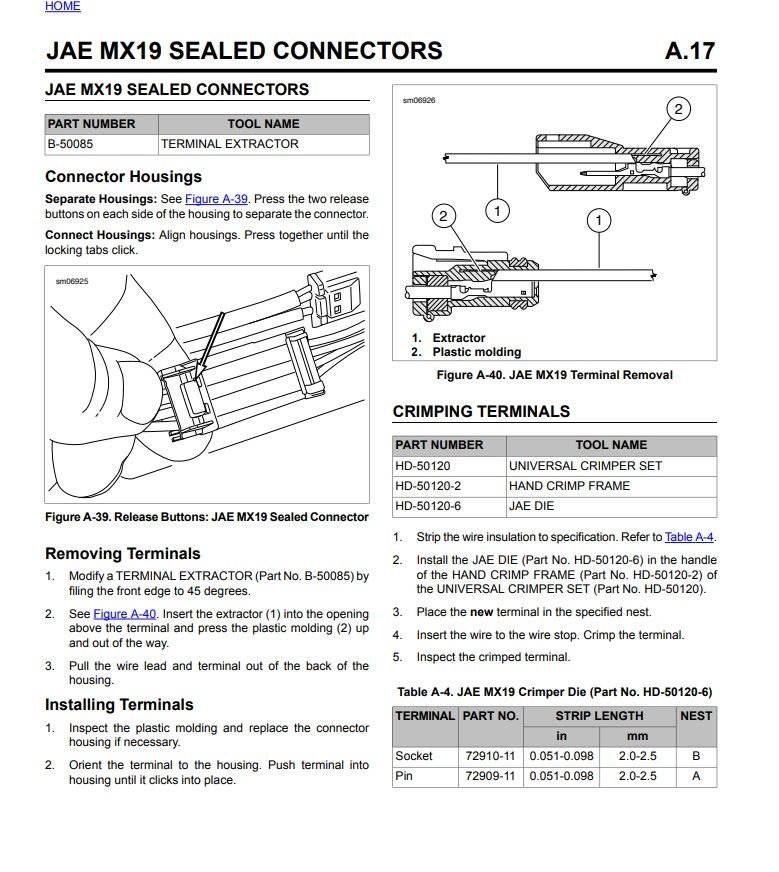

so here is manualbut I have no idea what to do..I inserted the pin I just used the regular safety pin and it says to press the housing or something?
the connector is . JAE MX19 4 PIN

Reply
0
