Please Help me identify this relay.. It's the only one that works.
Hey all, I have an issue going on with my 87 FLSTC..
The starter relay also controls the brake/running light. I have tried all the ones that the dealership says will work, but no brake light or tail light. The only one I have here that worked has no part number on it, but i did do a small diagram of what is on it. Can anyone please ID this relay for me so I can get a replacement? Thanks! Chris
The starter relay also controls the brake/running light. I have tried all the ones that the dealership says will work, but no brake light or tail light. The only one I have here that worked has no part number on it, but i did do a small diagram of what is on it. Can anyone please ID this relay for me so I can get a replacement? Thanks! Chris
Elite HDF Member
Joined: Aug 2013
Posts: 3,789
Likes: 277
From: Hawkeye state
Hey all, I have an issue going on with my 87 FLSTC..
The starter relay also controls the brake/running light. I have tried all the ones that the dealership says will work, but no brake light or tail light. The only one I have here that worked has no part number on it, but i did do a small diagram of what is on it. Can anyone please ID this relay for me so I can get a replacement? Thanks! Chris
Attachment 398592
The starter relay also controls the brake/running light. I have tried all the ones that the dealership says will work, but no brake light or tail light. The only one I have here that worked has no part number on it, but i did do a small diagram of what is on it. Can anyone please ID this relay for me so I can get a replacement? Thanks! Chris
Attachment 398592
Tourer
Joined: Aug 2012
Posts: 482
Likes: 0
From: Vancouver
Your diagram is hard to read. It looks like a three way. The square box with line could mean normally closed when not energized. Then when you start ignition it switches the power to the starter & removes power to lights, makes sense. Once started the relay returns to supply power for lights.
My best guess. Your HD dealer doesn't have this?
My best guess. Your HD dealer doesn't have this?
Tourer
Joined: Aug 2012
Posts: 482
Likes: 0
From: Vancouver
You can test this relay using a meter. Looks like five wires going to five posts. Two posts are your ignition switch energizing the coil. The three other posts are:
One common (common should be 12vdc positive on all the time) then switching between other two posts when starting
One supply to starter when energized 12vdc positive
One supply to lights 12vdc positive. Off during start up
One common (common should be 12vdc positive on all the time) then switching between other two posts when starting
One supply to starter when energized 12vdc positive
One supply to lights 12vdc positive. Off during start up
Seasoned HDF Member
Joined: May 2008
Posts: 21,092
Likes: 12,638
From: South Carolina
You have cross posted this issue all over the forum. Pick a section, hell any section...
The starter relay has nothing to do with the tail light or the brake light, unless you have a botched up mess of a wiring harness.
I explained this in response to your post in the electrical section.
The starter relay has nothing to do with the tail light or the brake light, unless you have a botched up mess of a wiring harness.
I explained this in response to your post in the electrical section.
Thread Starter
|
6th Gear
Joined: Sep 2014
Posts: 10
Likes: 0
From: WV
Go to Napa and ask them to get their relay book or see if they will match the pin config with one they have. All relays I have ever got there have the diagram on it or at least the #'s for each pin which will let you find a match. You could also go online and search standard motor products site or wells mfg and search their relays
Trending Topics
Thread Starter
|
6th Gear
Joined: Sep 2014
Posts: 10
Likes: 0
From: WV
This is not the relay im talking about.. the 2- 87 pins are solid, not broken.
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Southpaw Super Glide: A Left-Hand-Drive 1979 Harley FXE Built to Fit the Rider
Verdad Gallardo
Seasoned HDF Member
Joined: May 2008
Posts: 21,092
Likes: 12,638
From: South Carolina
The starter relay has nothing to do with the tail light or brake light.
The OP is chasing his tail, it is not a relay problem.
Extreme HDF Member
Joined: Aug 2013
Posts: 16,271
Likes: 15,108
From: Somewhere SW

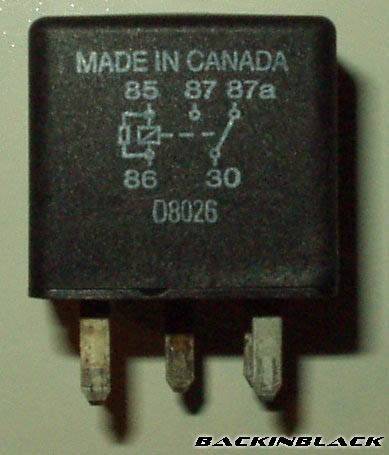

Two terminals control the coil (low amperage) the other two terminals handle the higher current.
The two 87-87a are for a normally open or normally closed configuration, your option.
