Trying to identify case
Thread Starter
|
Novice
Joined: Apr 2014
Posts: 22
Likes: 0
From: NM
Trying to identify case
I posted this in the Shovel section but was told maybe this was the section to try and identify my crankcase. I have searched for days trying to find information but cant find anything, I hope someone can help me out.

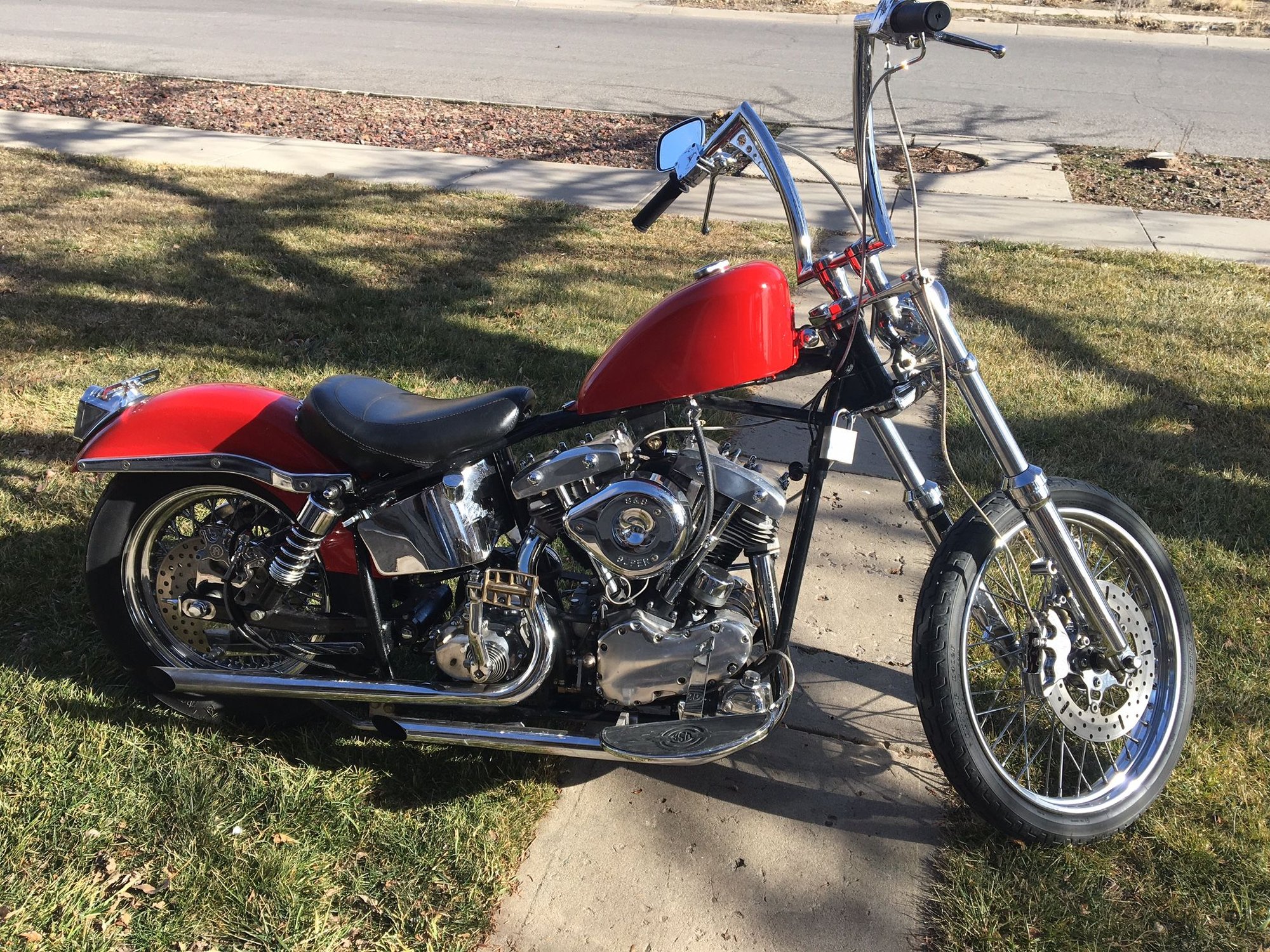

this bike is licensed as a custom build, I can find NO numbers on the case at all. I appreciate any help you may be able to give.
Seasoned HDF Member
Joined: Nov 2006
Posts: 12,878
Likes: 5,449
From: la la land jerzey
its a real blend - seen the MG before cant remember who made it but this is what i see
1 the case is an oddy - the oil pump is 1964 and down - does not have the cover for the alloy primarys with the oil feed
2 the R/S oil line fitting and line - for the top end is usually a welch plug installed after the oil line passage is drilled - this is threaded and feeds the external oil lines going to the heads < feed on the wrong side for a shovel ??? what did they do NO L/S picture showing it
B this tells me the block is a internal oiler knuck or pan - from what i see on the L/S its a 1954 and down design block - no timkin main bearing rollers both sides - Bob pointed out the hi ribs being knucklehead - correct - but pre 1940 and some very few 1941s
C yet is apairs to have a 1965 and UP distributor ( uses one bolt and a U clamp to hold the thing in place and no spud for the handlebar cable yet the block has the small box voltage regulator mount above the generator
C the cam cover 1968 / 69 style - the top center shows that it should have a cam cover with ribs see the lift between the lifter blocks at the cam cover mounting the rib covers protrude in this area NOW this is the spot you need to really pay attention
if you need engine work on this you will need a real old timer as the oiling system with this block should be a side oiler lower unit and block oiling top end
But your cam cover is from yes a side oiler bottom end BUT the block is a top oiler like you have that was re directed to the top oiling top end == been done many times you cant use a 2 cam hose and go shop if you have an issue with it -- trust me on that
1 the case is an oddy - the oil pump is 1964 and down - does not have the cover for the alloy primarys with the oil feed
2 the R/S oil line fitting and line - for the top end is usually a welch plug installed after the oil line passage is drilled - this is threaded and feeds the external oil lines going to the heads < feed on the wrong side for a shovel ??? what did they do NO L/S picture showing it
B this tells me the block is a internal oiler knuck or pan - from what i see on the L/S its a 1954 and down design block - no timkin main bearing rollers both sides - Bob pointed out the hi ribs being knucklehead - correct - but pre 1940 and some very few 1941s
C yet is apairs to have a 1965 and UP distributor ( uses one bolt and a U clamp to hold the thing in place and no spud for the handlebar cable yet the block has the small box voltage regulator mount above the generator
C the cam cover 1968 / 69 style - the top center shows that it should have a cam cover with ribs see the lift between the lifter blocks at the cam cover mounting the rib covers protrude in this area NOW this is the spot you need to really pay attention
if you need engine work on this you will need a real old timer as the oiling system with this block should be a side oiler lower unit and block oiling top end
But your cam cover is from yes a side oiler bottom end BUT the block is a top oiler like you have that was re directed to the top oiling top end == been done many times you cant use a 2 cam hose and go shop if you have an issue with it -- trust me on that
Thread Starter
|
Novice
Joined: Apr 2014
Posts: 22
Likes: 0
From: NM
John, I am still trying to digest your post, seems I have quite the Frankenstein, I love working on bikes but am now afraid that if anything goes wrong I won't have the knowledge to fix it.
Thread Starter
|
Novice
Joined: Apr 2014
Posts: 22
Likes: 0
From: NM
its a real blend - seen the MG before cant remember who made it but this is what i see
1 the case is an oddy - the oil pump is 1964 and down - does not have the cover for the alloy primarys with the oil feed
2 the R/S oil line fitting and line - for the top end is usually a welch plug installed after the oil line passage is drilled - this is threaded and feeds the external oil lines going to the heads < feed on the wrong side for a shovel ??? what did they do NO L/S picture showing it
B this tells me the block is a internal oiler knuck or pan - from what i see on the L/S its a 1954 and down design block - no timkin main bearing rollers both sides - Bob pointed out the hi ribs being knucklehead - correct - but pre 1940 and some very few 1941s
C yet is apairs to have a 1965 and UP distributor ( uses one bolt and a U clamp to hold the thing in place and no spud for the handlebar cable yet the block has the small box voltage regulator mount above the generator
C the cam cover 1968 / 69 style - the top center shows that it should have a cam cover with ribs see the lift between the lifter blocks at the cam cover mounting the rib covers protrude in this area NOW this is the spot you need to really pay attention
if you need engine work on this you will need a real old timer as the oiling system with this block should be a side oiler lower unit and block oiling top end
But your cam cover is from yes a side oiler bottom end BUT the block is a top oiler like you have that was re directed to the top oiling top end == been done many times you cant use a 2 cam hose and go shop if you have an issue with it -- trust me on that
1 the case is an oddy - the oil pump is 1964 and down - does not have the cover for the alloy primarys with the oil feed
2 the R/S oil line fitting and line - for the top end is usually a welch plug installed after the oil line passage is drilled - this is threaded and feeds the external oil lines going to the heads < feed on the wrong side for a shovel ??? what did they do NO L/S picture showing it
B this tells me the block is a internal oiler knuck or pan - from what i see on the L/S its a 1954 and down design block - no timkin main bearing rollers both sides - Bob pointed out the hi ribs being knucklehead - correct - but pre 1940 and some very few 1941s
C yet is apairs to have a 1965 and UP distributor ( uses one bolt and a U clamp to hold the thing in place and no spud for the handlebar cable yet the block has the small box voltage regulator mount above the generator
C the cam cover 1968 / 69 style - the top center shows that it should have a cam cover with ribs see the lift between the lifter blocks at the cam cover mounting the rib covers protrude in this area NOW this is the spot you need to really pay attention
if you need engine work on this you will need a real old timer as the oiling system with this block should be a side oiler lower unit and block oiling top end
But your cam cover is from yes a side oiler bottom end BUT the block is a top oiler like you have that was re directed to the top oiling top end == been done many times you cant use a 2 cam hose and go shop if you have an issue with it -- trust me on that
Your knowledge of bikes amazes me, I am going to take some more pics and post them. Thank you for all the help trying to figure this out.
Seasoned HDF Member
Joined: Nov 2006
Posts: 12,878
Likes: 5,449
From: la la land jerzey
dont be afraid of it someone had real experience when they put it together it was no one hit wonder
if you ever have an issue post up or send me a PM i will help you - service it adjust the valves new set of plugs once a year - drive it to enjoy it
take out the timing plug rotate the motor see if any S&S numbers show up if so post them i will tell you what they are as in a stroker or even stock replacement wheels if all it has is a dot and a line then its oem wheels
if you ever have an issue post up or send me a PM i will help you - service it adjust the valves new set of plugs once a year - drive it to enjoy it
take out the timing plug rotate the motor see if any S&S numbers show up if so post them i will tell you what they are as in a stroker or even stock replacement wheels if all it has is a dot and a line then its oem wheels
Trending Topics
Thread Starter
|
Novice
Joined: Apr 2014
Posts: 22
Likes: 0
From: NM
dont be afraid of it someone had real experience when they put it together it was no one hit wonder
if you ever have an issue post up or send me a PM i will help you - service it adjust the valves new set of plugs once a year - drive it to enjoy it
take out the timing plug rotate the motor see if any S&S numbers show up if so post them i will tell you what they are as in a stroker or even stock replacement wheels if all it has is a dot and a line then its oem wheels
if you ever have an issue post up or send me a PM i will help you - service it adjust the valves new set of plugs once a year - drive it to enjoy it
take out the timing plug rotate the motor see if any S&S numbers show up if so post them i will tell you what they are as in a stroker or even stock replacement wheels if all it has is a dot and a line then its oem wheels
Took out timing plug and saw no numbers, just dot and a line.
Motor runs strong, no smoke, no major leaks. I appreciate all the help John, this will be a great bar hopper and project for the winter.
I took a better pic of the L/S.
