Solenoid question

I had to take the transmission out of my '77 for a rebuild and now it's time to reassemble everything. This is my first time working on an electric start bike and am unfamiliar with some details. So... I bolted up the solenoid to the case and everything seems to be lining up and working ( manually) as it should with the starter shaft. However, I noticed that there is a gap--apprx 'ly 1/16" between the edge of the solenoid body and the primary surface. Is this normal or did I assemble something off kilter? I don't recall if it was like that when I disassembled it.

Jul 4, 2019 | 06:47 PM

johnjzjz

Seasoned HDF Member

Joined: Nov 2006

Posts: 12,878

Likes: 5,449

From: la la land jerzey

its held by 2 bolts at one side and a spacer - some bend out more then others

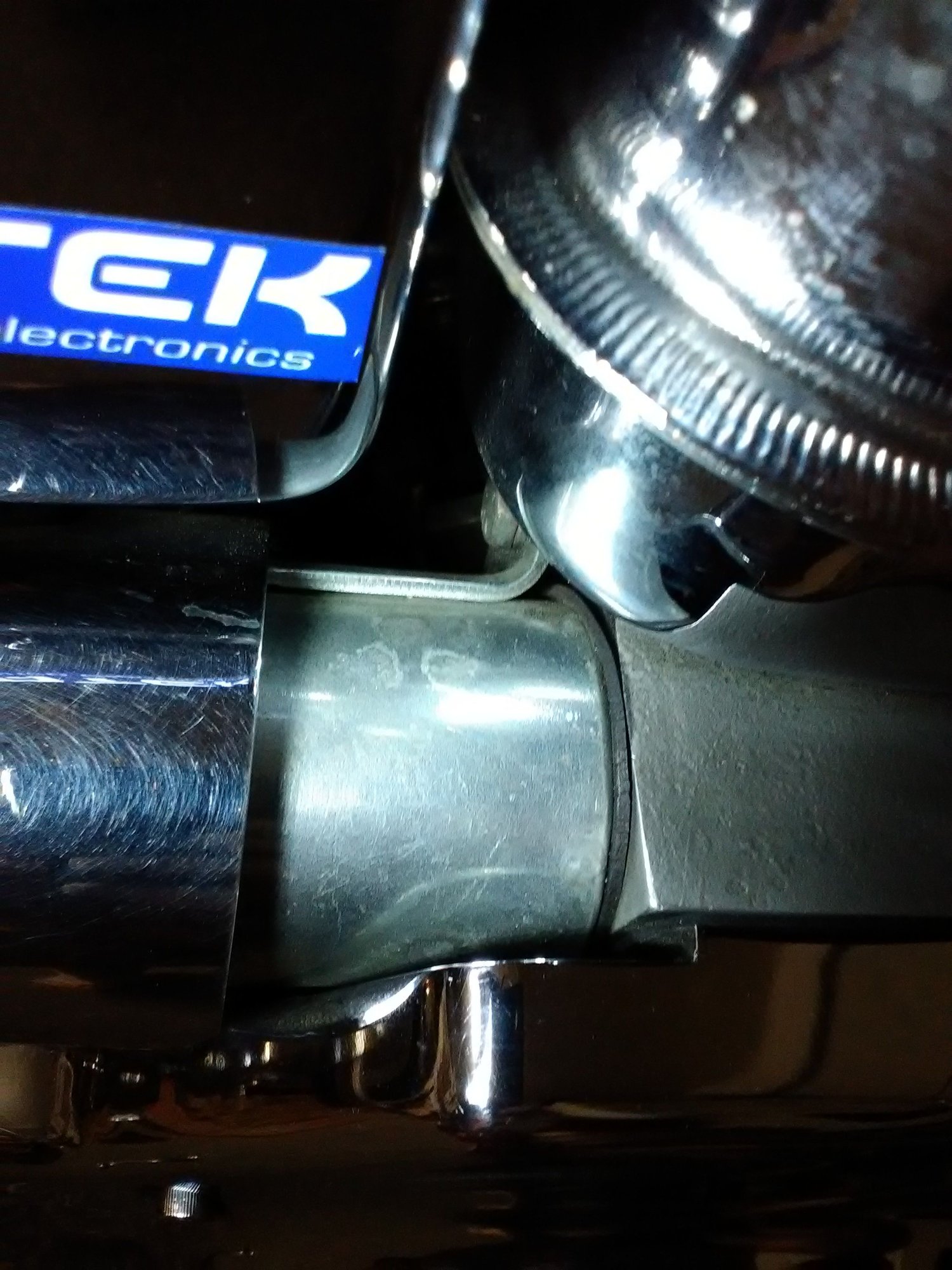

you should post a picture to be on the same page

Jul 4, 2019 | 07:09 PM

doc308

Thread Starter

Cruiser

Joined: Mar 2008

Posts: 187

Likes: 9

Jul 4, 2019 | 07:15 PM

doc308

Thread Starter

Cruiser

Joined: Mar 2008

Posts: 187

Likes: 9

I have one more question re: the wiring on the solenoid: I know that the top, longer stud goes to the battery cable and that the lower shorter stud is wired straight to the starter. The 2 wires coming from the relay: the small connector obviously goes to the small middle stud. The other wire , with the large eyelet goes to which post--the battery or the starter post?

Jul 4, 2019 | 07:19 PM

Bumpandrun

Stellar HDF Member

Joined: Jan 2013

Posts: 2,747

Likes: 419

From: Vermont

Quote:

Originally Posted by doc308

Battery.

Jul 4, 2019 | 07:21 PM

TwiZted Biker

Club Member

Joined: Mar 2009

Posts: 66,122

Likes: 51,434

From: Niles Canyon Ca.

That's a very good fit compared to a lot I see, aligns nice and straight too not cocked to one side.

Jul 4, 2019 | 07:22 PM

glidein wide

Stellar HDF Member

Joined: Jan 2015

Posts: 2,504

Likes: 150

From: ct

The rubber boot has a flange that seals the solenoid on the outside, along with a foam ring. The boot install from the outside and push into the hole.
