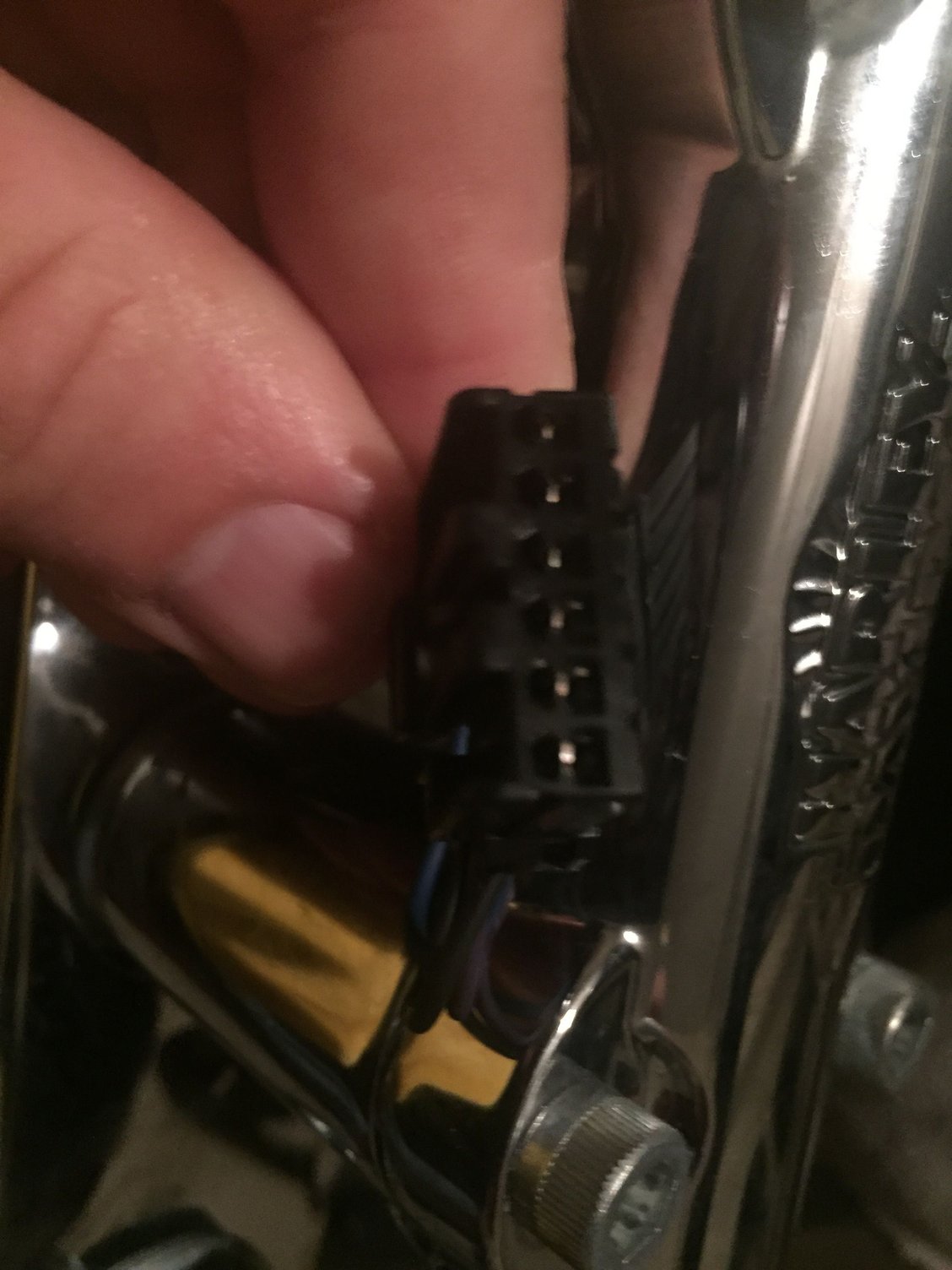

On the front side of the plug there should be a tiny hole or slot above the pin for the wire you want to remove. Insert the end of a straightened paperclip into the hole until it clicks. Push the wire in from the back side another 1/8th of an inch inward while pushing on the paperclip. Then pull the wire out. It will take your a couple times, but once you do it and get the concept, it becomes easy. I had to do this to run the control wires to install my apes.
Wiring for plug as follows;
1) black - right ground
2) violet - right signal
3) blue - right running
4) blue - left running
5) violet with brown stripe - left signal
6) black - left ground
I am not near the bike at the moment but i will look for holes on the other side of the connector as soon as i can.
In my pic the connector is pulled away from the tank all the way up to just below the bar. It is s way duff plug then in your pic. We will see🤗
I was taking a closer look at the Todd 10" 1.5" Mini Apes and i noticed there was a dent. So that really sucked, but then i realized its a releaf for the master cylender. Woo.
I am not near the bike at the moment but i will look for holes on the other side of the connector as soon as i can.
In my pic the connector is pulled away from the tank all the way up to just below the bar. It is s way duff plug then in your pic.

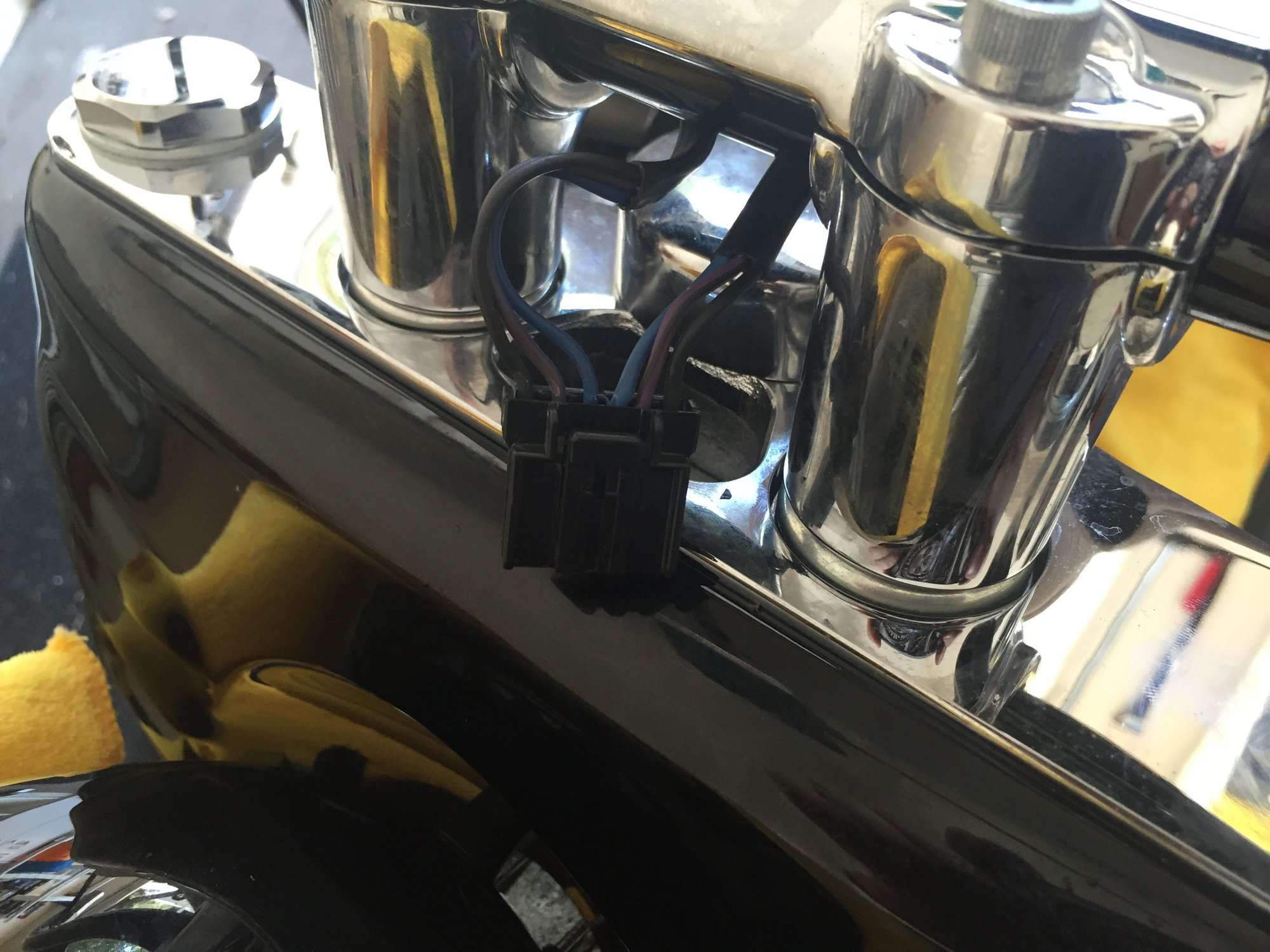

Yeah, the wires in my pic are for the controls. I posted it to show the wires pulled from the plugs for you. Here is my turn signal plug (that is identical to yours) where it plugs in under the tank on my Deluxe...
