I am installing OEM foot controls on a 84 FXST. I source mostly all oem parts according to the parts manual of ebay or DK. I am not real happy with the way the shift side looks and I'm not sure what it should look like. I think Wide Glides are the same set up for the 81-86 years.
If someone can get me a pic of the linkage showing connections I would really appreciate it.
If someone can get me a pic of the linkage showing connections I would really appreciate it.
Seasoned HDF Member
Joined: Sep 2008
Posts: 14,160
Likes: 11,249
From: San Diego, CA
I am installing OEM foot controls on a 84 FXST. I source mostly all oem parts according to the parts manual of ebay or DK. I am not real happy with the way the shift side looks and I'm not sure what it should look like. I think Wide Glides are the same set up for the 81-86 years.
If someone can get me a pic of the linkage showing connections I would really appreciate it.
If someone can get me a pic of the linkage showing connections I would really appreciate it.
These are 1985 Wide Glides off the internet.... maybe they will give you an idea of what it looks like, until someone can give specific pics of the connections...
Since you mentioned 1984 thru 1989.... For comparison.... here is my 1989 Heritage shift linkage....
Last edited by hattitude; Feb 13, 2023 at 03:01 PM.

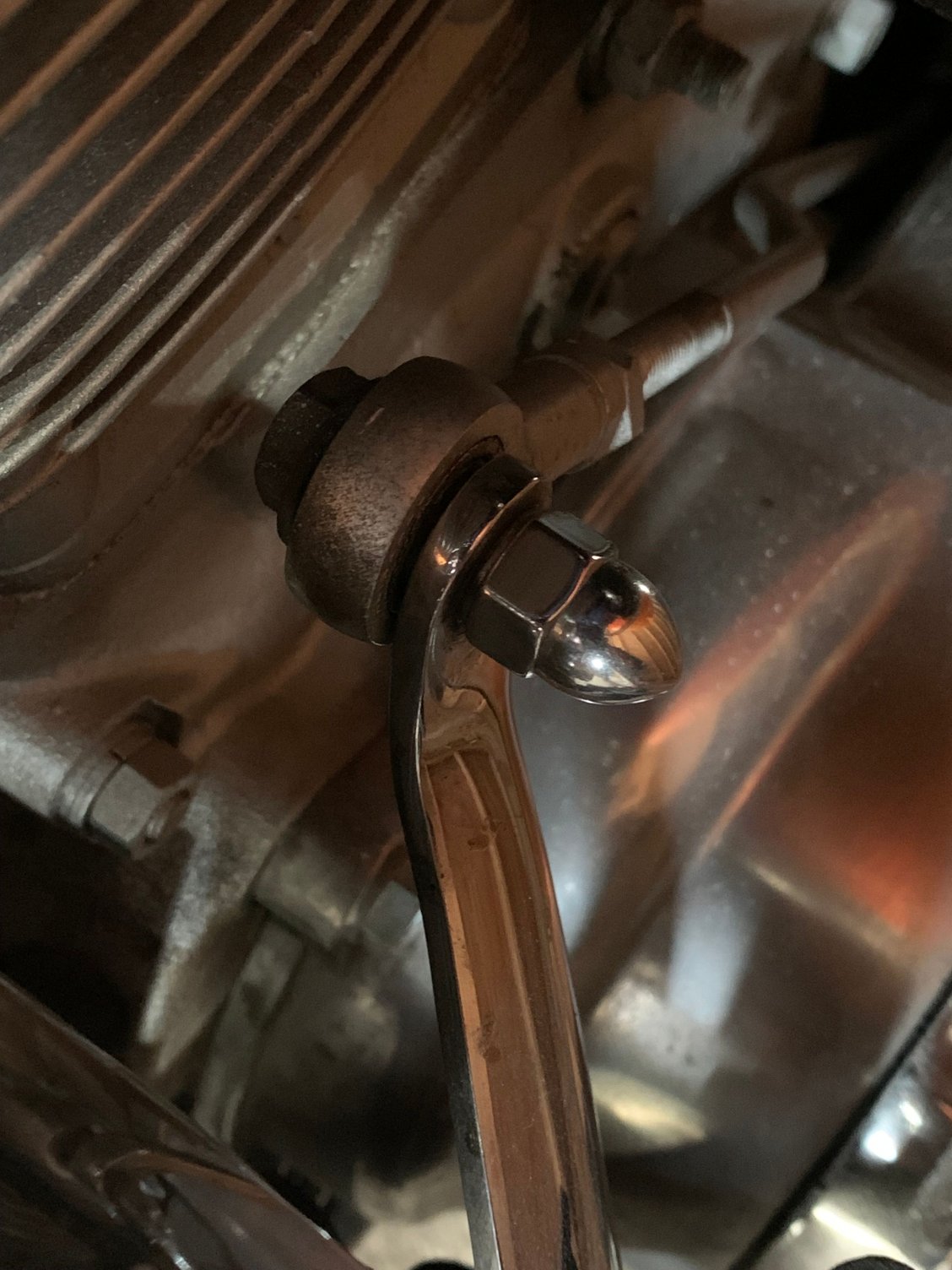

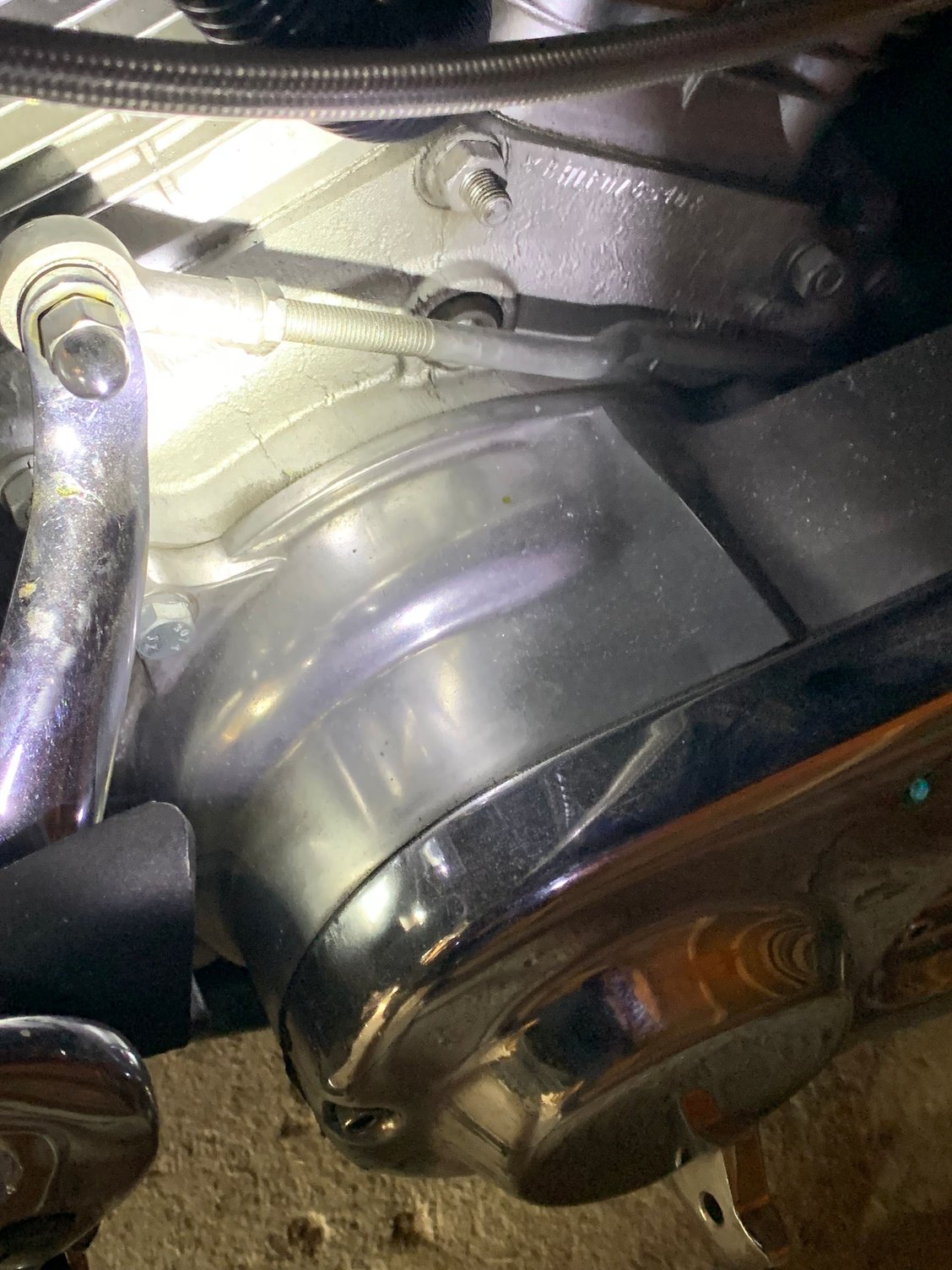

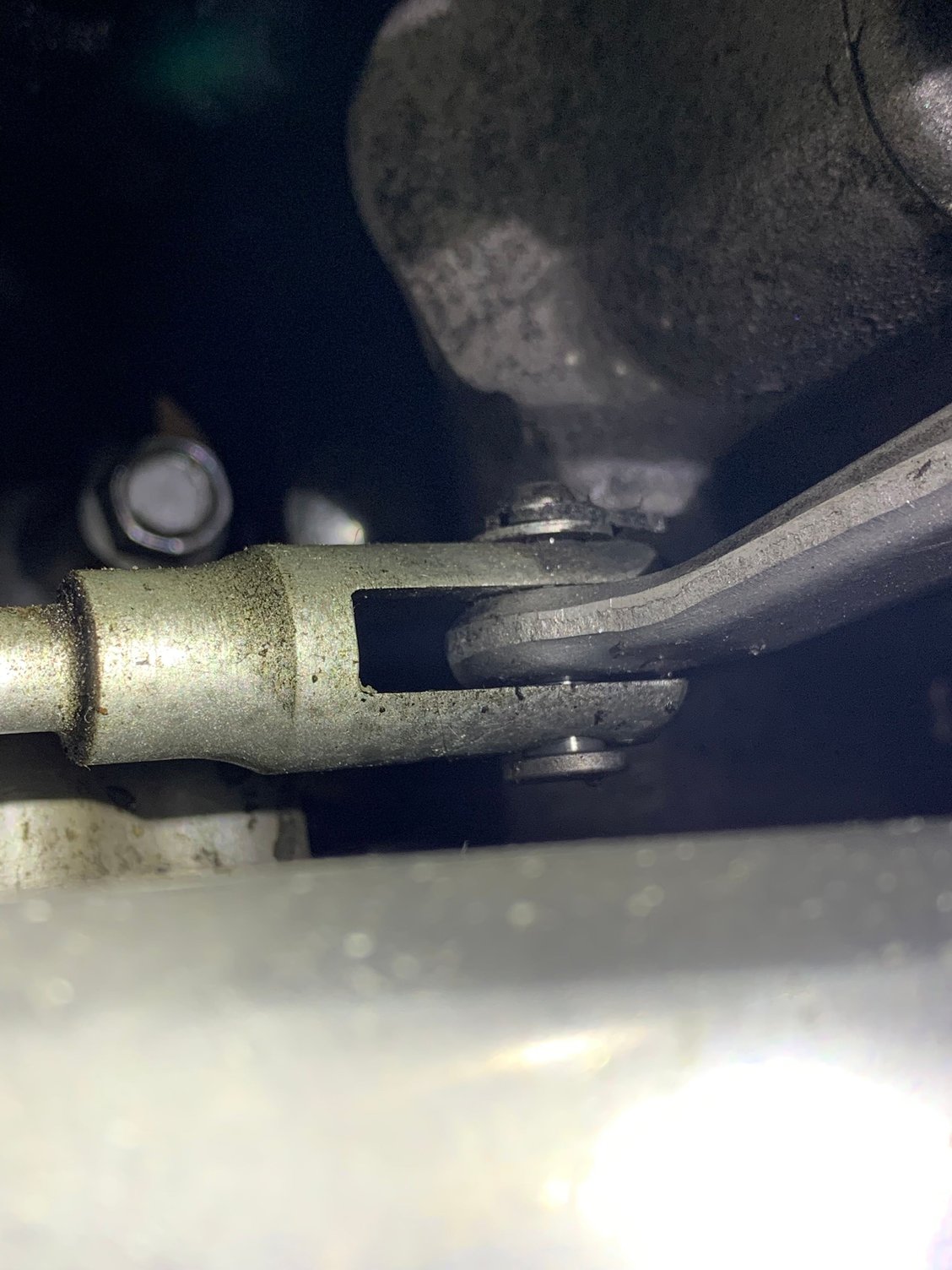

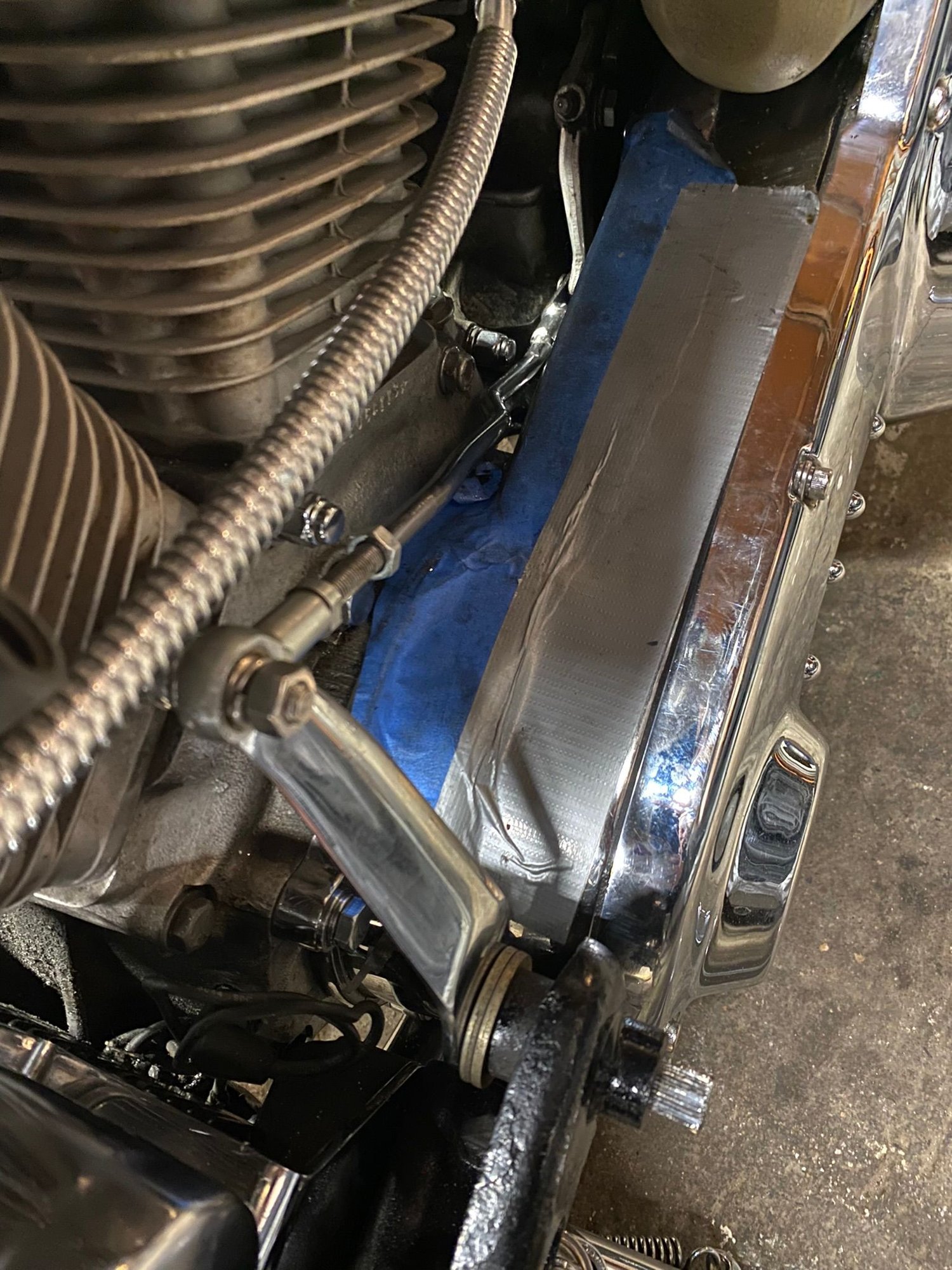

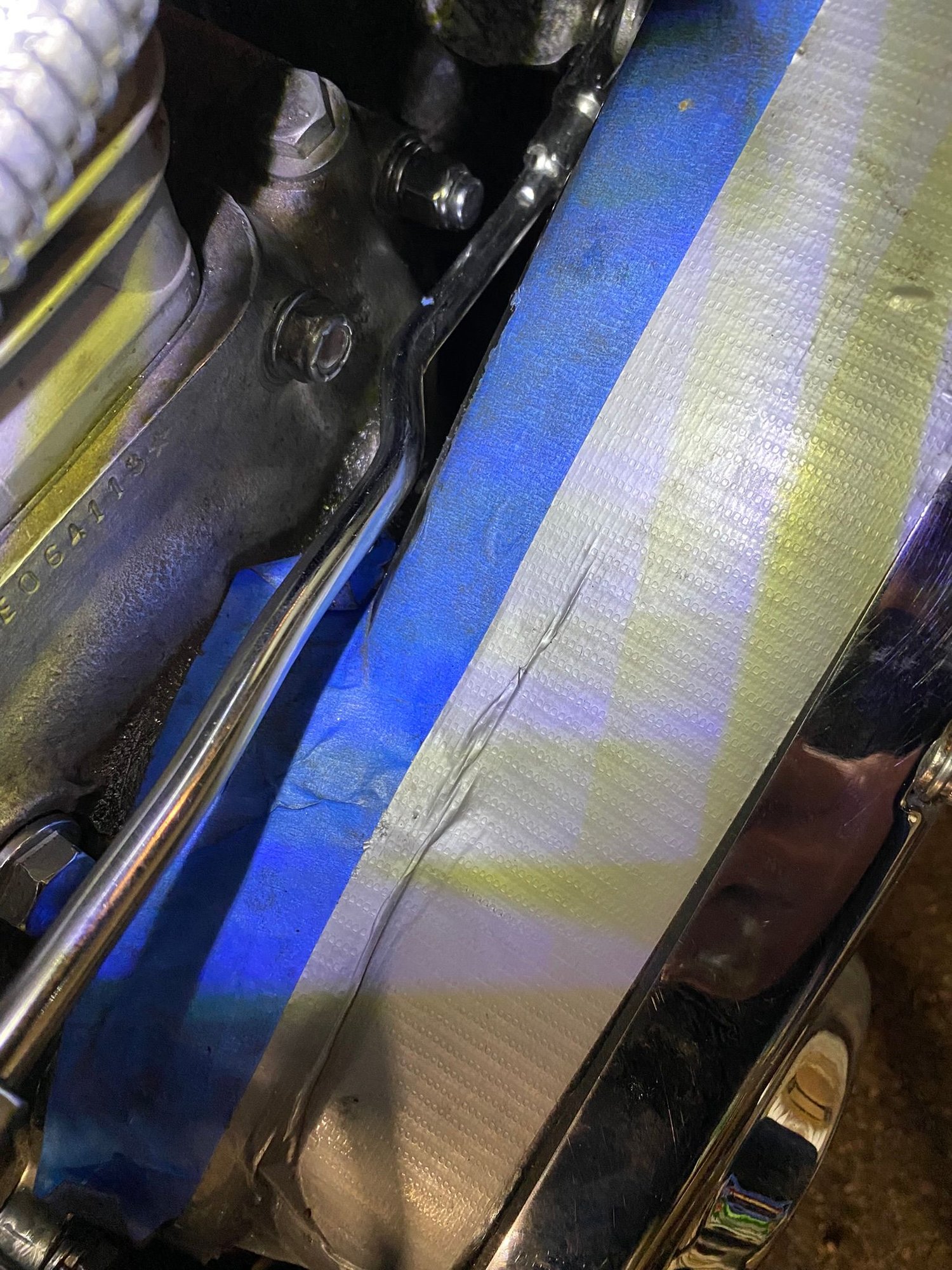

Thank you. I was at work and couldn't do much searching. It looks like the pieces I have. Just waiting on the outer shift lever (part that toe peg bolts to). On my bike the long rod just seems tight in there when I bolt it to the inner shift lever that passes through the bracket. In these three pics it looks like that lever should point at 01:00. I was just out there looking at it. Looks like there are chrome acorn nuts on the engine that might be getting in the way of the shift rod. Got to go play with it some more. Thanks again.
Your heritage looks totally different. I ordered everything by part number. it should just be a matter of getting them aligned. One thing I don't see on the parts lists is a spring that was attached to the shift lever assembly that bolts to the shifter. The l shaped part. There was a spring attached where that and the long shift rod connect pulling down to the frame rail. I can't see what that was for unless it was needed with he aftermarket controls. We'll see.
Seasoned HDF Member
Joined: Sep 2008
Posts: 14,160
Likes: 11,249
From: San Diego, CA
Your heritage looks totally different. I ordered everything by part number. it should just be a matter of getting them aligned. One thing I don't see on the parts lists is a spring that was attached to the shift lever assembly that bolts to the shifter. The l shaped part. There was a spring attached where that and the long shift rod connect pulling down to the frame rail. I can't see what that was for unless it was needed with he aftermarket controls. We'll see.
The Heritage shift linkage is totally different....
You mentioned, "I am not real happy with the way the shift side looks."
I offered it only as a comparison, in case the Heritage-Style linkage is what you were expecting to see, versus the other style linkage....
I didn't mean to confuse the issue...
Last edited by hattitude; Feb 14, 2023 at 09:20 AM.
The Heritage shift linkage is totally different....
You mentioned, "I am not real happy with the way the shift side looks."
I offered it only as a comparison, in case the Heritage-Style linkage is what you were expecting to see, versus the other style linkage....
I didn't mean to confuse the issue...
You mentioned, "I am not real happy with the way the shift side looks."
I offered it only as a comparison, in case the Heritage-Style linkage is what you were expecting to see, versus the other style linkage....
I didn't mean to confuse the issue...
