Crankcase threaded holes
Thread Starter
|
Stage III
Joined: Mar 2010
Posts: 3
Likes: 0
Crankcase threaded holes

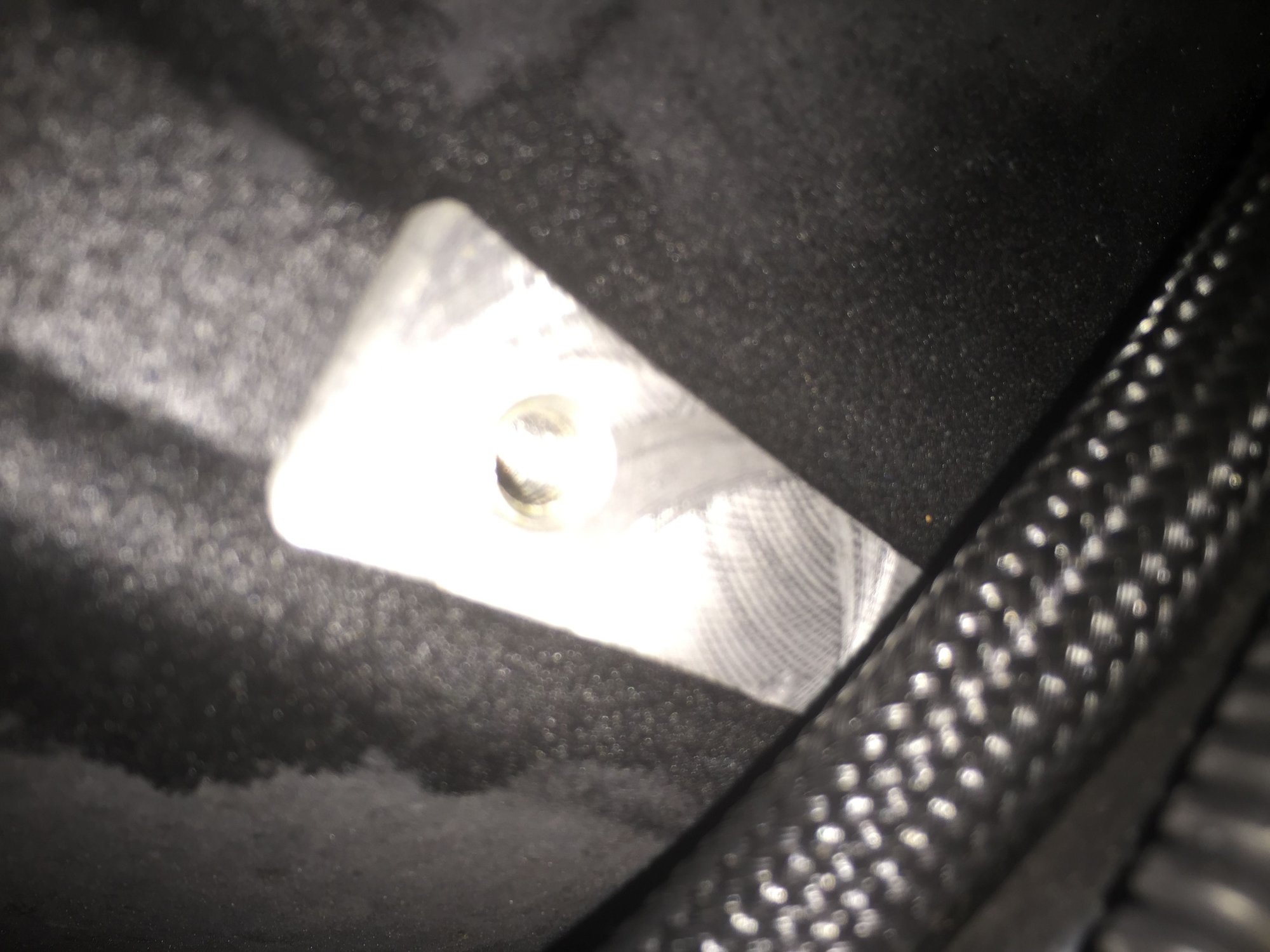

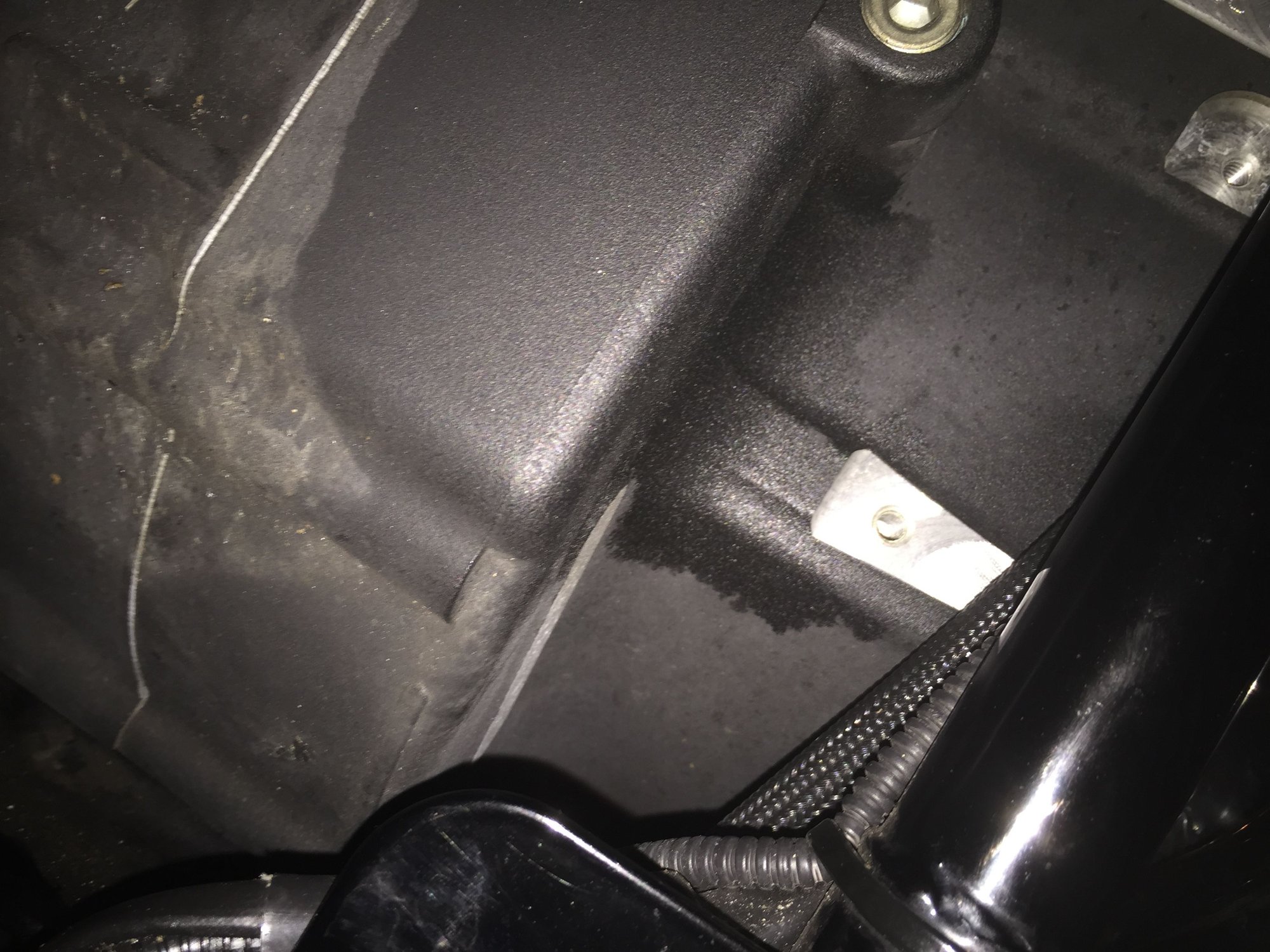

I have a 2013 Ultra. I was cleaning the bike up today (oil airfilter blowby had run down the right side) and noticed two threaded holes in a milled out flanged area on the bottom right side of the crankcase, directly above the frame. I can't seem to find anything on this forum that addresses this, or what normally goes there, or what it's for. A shop manual is on the to do list, but any insight would be appreciated.
Someone in a post had made a reference to freeze plugs being in this general area, but without a manual I cannot confirm that. I basically just want to make sure that something vital hasn't rattled off, which I would be hard pressed to believe that two bolts wiggled free...and as a daily rider i haven't noticed anything different.
thanks!
Jessie
Someone in a post had made a reference to freeze plugs being in this general area, but without a manual I cannot confirm that. I basically just want to make sure that something vital hasn't rattled off, which I would be hard pressed to believe that two bolts wiggled free...and as a daily rider i haven't noticed anything different.
thanks!
Jessie
Seasoned HDF Member
Joined: Mar 2010
Posts: 38,526
Likes: 6,406
From: Honah Lee
If I am looking at that correctly, that is a drain hole for the cam case separate from the crank area(except thru the main bearing) for checking to see return side of the oil pump is OK if a sumping condition is indicated. It is a NPT tapered plug. It is very easy if you over tighten to break case, so it's best left alone. If not use sealer, and after it bottoms, a little more. The reason the cam case is separate from the crank area is for proper venting on a twin cam.
Last edited by Jackie Paper; Oct 1, 2014 at 08:26 PM.
Road Warrior
Joined: Mar 2010
Posts: 1,290
Likes: 7
From: D/FW Texas
[QUOTE=thomasjpt8;13276689]I have a 2013 Ultra...Someone in a post had made a reference to freeze plugs being in this general area, but without a manual I cannot confirm that. QUOTE] are you serious? on an air cooled engine?
Seasoned HDF Member
Joined: Jan 2006
Posts: 11,471
Likes: 2,998
From: Charleston, SC
I have no idea what would go there but my 09 has the same stuff in the same place.
Nothing is attached to it. So.... normal I guess.
Might be something that is used in another platform like a dyna or something. No biggie.
Nothing is attached to it. So.... normal I guess.
Might be something that is used in another platform like a dyna or something. No biggie.
Stellar HDF Member
Joined: Aug 2012
Posts: 2,664
Likes: 184
From: Indiana, USA
look at the H-D engine stand, maybe these are the tapped holes to mount the cases to the stand......
Trending Topics
Seasoned HDF Member
Joined: Dec 2005
Posts: 19,894
Likes: 8,002
From: poway
Those holes (3 actually) are for an exhaust bracket on the Dyna models.. Dyna models mount the whole exhaust system to the motor / tranny...
