2014 touring bag latches

Hey all. I've been in the process of putting some stripped down 2014 ultra hard bags together. I am stumped at the latching mechanism. I believe Ihave all of the parts to do it, but seem to be stuck because I have no pictures to go off of and all the online videos I've found just talk about how to take the overall structure apart. Anyone have a good how-to thread to put the latching system together from scratch?

Aug 17, 2016 | 08:21 PM

steelerdude1

Grand HDF Member

Joined: Oct 2010

Posts: 4,618

Likes: 290

From: Johnstown, PA

Not sure if this will help.

Aug 17, 2016 | 09:55 PM

matte

Thread Starter

Stellar HDF Member

Joined: Apr 2006

Posts: 2,926

Likes: 962

From: Texas

Have that and I appreciate the help. But it doesn't go deep into the locking mechanisms. Thanks for the effort though

Aug 17, 2016 | 10:52 PM

Ibfuelish

Road Captain

Joined: May 2014

Posts: 641

Likes: 30

From: Clovis, CA

As in, the cylinder lock? or the cabling that locks the lid?

Aug 18, 2016 | 05:25 AM

matte

Thread Starter

Stellar HDF Member

Joined: Apr 2006

Posts: 2,926

Likes: 962

From: Texas

Quote:

Originally Posted by Ibfuelish

As in, the cylinder lock? or the cabling that locks the lid?

I think all of them. I have the main piece that has the cabling runs through. Also have two other plastic pieces that screw into the unit. And the party the latch connects into. Just can't figure out how the latch gets the components to move.

Aug 18, 2016 | 03:32 PM

14GuineaPig

Stellar HDF Member

Joined: Sep 2013

Posts: 3,492

Likes: 610

From: USA

Aug 19, 2016 | 09:29 AM

matte

Thread Starter

Stellar HDF Member

Joined: Apr 2006

Posts: 2,926

Likes: 962

From: Texas

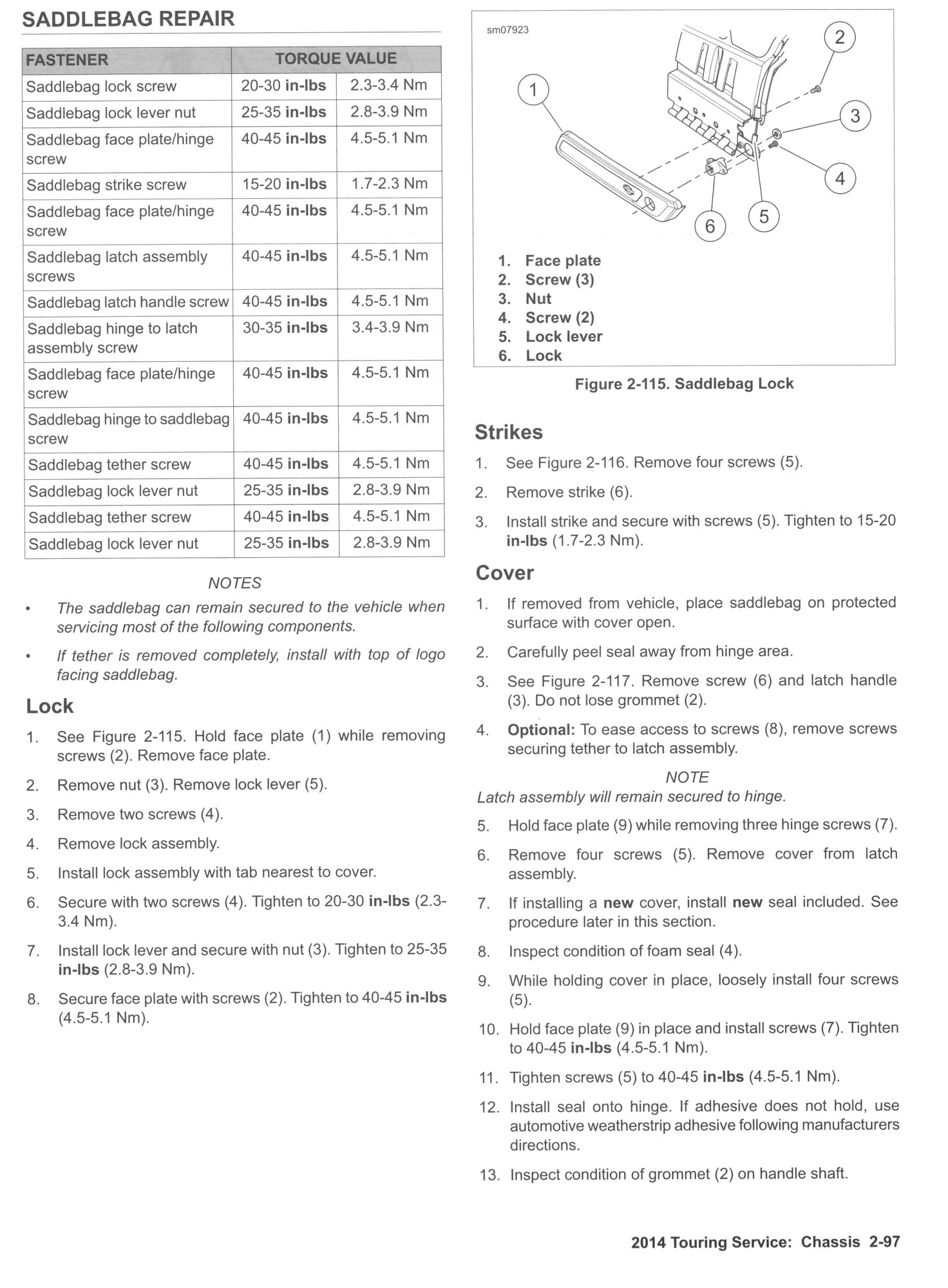

Thanks a bunch for those last diagrams. They didn't answer my question, but I realized yesterday what I was looking for. The latch area specifically has 3 extra pieces, one of which I had set aside a week ago and forgot was there. So all fixed!

Those last images were helpful for the screws though!
