Removing primary case - question
HDF Community Team
Joined: Jun 2006
Posts: 12,763
Likes: 2,597
From: san antonio
You just need to cut that notch and insert a chisel into the notch and strike the chisel; the race is very brittle and will snap and pull off easily. Post a picture of the notch you have cut; let's take a look. The race has to come off and, at this point, you only have two options; the Baker shaft bump or the Dremel method. The Dremel method is quite common and had been done many times; your best bet at this point.
EDIT: There is a third option but also requires use of Dremel tool. Cut two notches, about half way through the race 180* apart; exactly opposite from each other; like 3:00 and 9:00. Using a split puller, use those two notches for the split puller to grab the race and pull it off.
However, since you have to use a Dremel tool, might as well go with the first Dremel option; faster and doesn't require a puller. Just be careful with the Dremel tool; use a metal cutting blade the tool will eat through the race pretty quick, so use a light hand and take your time. The notch should be at a 45* angle as shown the previously posted photo. Both Dremel methods are shown in my post #64.
Last edited by djl; Nov 6, 2016 at 09:51 AM.
HDF Community Team
Joined: Jun 2006
Posts: 12,763
Likes: 2,597
From: san antonio
Progress! Onward and upward! Now, removing that main shaft/fifth gear seal; challenging. Get a small flat blade screw driver, wedge it into the seal and work your way around trying to pry it out. You will swear that it will never come out but it will. Once you see a little movement, concentrate on both sides of that area.
Thread Starter
|
Seasoned HDF Member
Joined: Dec 2012
Posts: 6,664
Likes: 502
From: Orange County
Got it all together, and it won't start, just getting a loud click from the starter solenoid. Tried rocking it back and forth in gear. Got a battery tender on it now.
We'll, the battery tender got the battery charged up enough to start. But, it still leaks. Must be the inner primary seal. I can see it running down the case, when I look under the bike.
We'll, the battery tender got the battery charged up enough to start. But, it still leaks. Must be the inner primary seal. I can see it running down the case, when I look under the bike.
Last edited by Road Star; Nov 6, 2016 at 11:43 AM.
Club Member
Joined: Jun 2007
Posts: 45,429
Likes: 2,897
From: Bedford UK
Well done for getting this far. There are plenty of 'click' threads in here, which between them should help you solve that, just use Advanced Search for 'click' in titles, plus D1gger's Sticky above.
Thread Starter
|
Seasoned HDF Member
Joined: Dec 2012
Posts: 6,664
Likes: 502
From: Orange County
How far does the race go onto the trans main shaft? just up far enough so you can get the tool on to remove it?
Going to put a stock bearing, race and seal, and try that.
Going to put a stock bearing, race and seal, and try that.
HDF Community Team
Joined: Jun 2006
Posts: 12,763
Likes: 2,597
From: san antonio

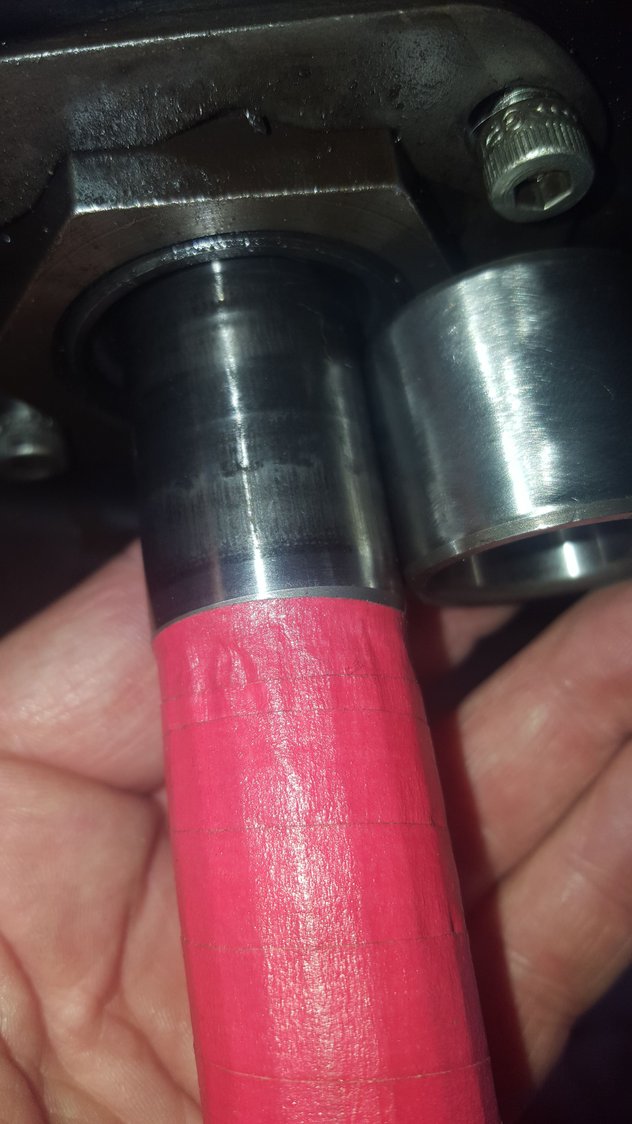

You must also wrap the main shaft splines with some painters tape or something similar as the splines are very sharp and it is very easy to nick the main shaft seal when slipping the inner primary case back into place. Also pay attention to how the IPB seal is installed; it is directional. The seal is clearly inscribed with "Oil This Side" and should be so installed.
