Midmount Rear Brake Pedal 'Loose'

Reply Subscribe

Thread Tools

Search this Thread

Aug 15, 2018 | 07:03 PM

MMH

Thread Starter

Tourer

Joined: Apr 2007

Posts: 438

Likes: 57

Midmount Rear Brake Pedal 'Loose'

I have a 2008 Street Bob w/ a rear brake pedal that is 'loose'. What I mean by this is it is really wiggling around on the pin that is attached to the mid-mount peg mount. The pin itself can move axially in and out of the peg mount a little bit, and, the brake lever itself can slide on the pin (it looks like there should be an e-clip to axially constrain it, but there is not). Also, there appears to be radial clearance between the brake lever and the pin.

I do have a service manual but the closest figure that I can find is for the rear brake master cylinder, which does show the brake lever, but not the pin that it mounts to. This does not look that as if it is that hard to get to, but I was hoping to see a figure w/ all the parts in the service manual.

Although this does not seem like an imminent safety issue (parts loose, but constrained and the lever cannot bind up), the 'looseness' is only going to get worse so I want to address it ASAP.

Aug 15, 2018 | 07:57 PM

seniorsuperglideE8

Supporter

Joined: Jan 2007

Posts: 15,788

Likes: 5,625

From: along the shore of Mishigami

I use Ronnie's HD for parts drawings. Click on the parts finder and the drawing should answer your question.

Aug 16, 2018 | 04:42 AM

misfitJason

Seasoned HDF Member

Joined: Dec 2010

Posts: 6,849

Likes: 1,389

From: Florida

The brake pedal just rides on the "pin" sticking out from the mid mount. It uses a wavy washer to take up the slack and then it's held in place by a circlip. It's possible that your circlip came off

Aug 16, 2018 | 05:31 AM

MMH

Thread Starter

Tourer

Joined: Apr 2007

Posts: 438

Likes: 57

Quote:

Originally Posted by misfitJason

The brake pedal just rides on the "pin" sticking out from the mid mount. It uses a wavy washer to take up the slack and then it's held in place by a circlip. It's possible that your circlip came off

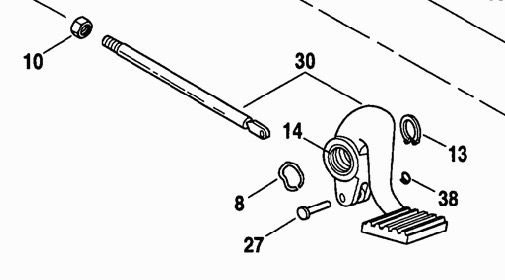

Using the HD parts drawings (such as ronnies mentioned above) I see a lockwasher and a clamp called out. The lockwasher appears to be where the wavy washer would be and the clamp appears to be just a c-clip. I may have to go to a HD dealer and look at some mid mounts myself & figure out which (if any) of my parts are missing

Aug 17, 2018 | 09:07 AM

misfitJason

Seasoned HDF Member

Joined: Dec 2010

Posts: 6,849

Likes: 1,389

From: Florida

Better yet. Why don't you just post some close of pics and we will tell you what's wrong

Sep 12, 2018 | 07:21 PM

MMH

Thread Starter

Tourer

Joined: Apr 2007

Posts: 438

Likes: 57

Figured out what the problem is - the big was dropped (not by me, I bought the bike not too long ago) and the pin that the brake pedal rotates around and is attached the the bracket is loose on the bracket. Must have been damaged when the bike was dropped. New bracket on order and problem will be resolved!

Sep 23, 2018 | 07:21 AM

MMH

Thread Starter

Tourer

Joined: Apr 2007

Posts: 438

Likes: 57

Quote:

Originally Posted by misfitJason

The brake pedal just rides on the "pin" sticking out from the mid mount. It uses a wavy washer to take up the slack and then it's held in place by a circlip. It's possible that your circlip came off

This is what happened. It looked like the pin that is integrated into the mount itself was loose because the plastic bushing that is between the pedal and pin split and half of it migrated out making it look like the pin itself was loose. I drove the bushing back in and replaced the circlip and all is tight. In addition to being split, the bushing is severely wore and should be replaced. I cannot find a PN for this bushing in the Harley Service Parts catalog. Can anyone get me a part number?
