Female 2 wire plug behind headlight?
Thread Starter
|
Intermediate
Joined: Mar 2006
Posts: 30
Likes: 9

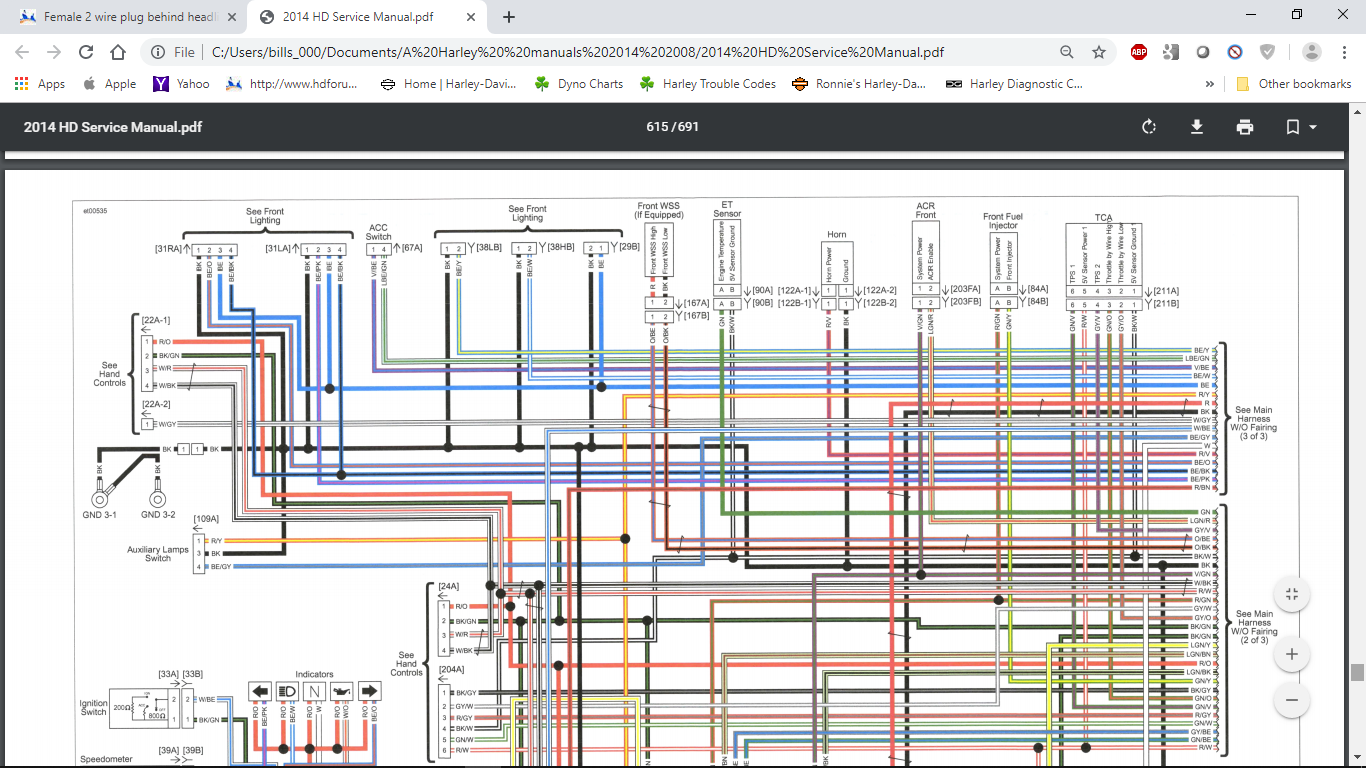

Yes... stock passing lamps. Looking at the wiring diagrams... it looks like the blue and black wires are for passing lamps. This seems to be an accessory plug for something else .
Seasoned HDF Member
Joined: May 2008
Posts: 21,173
Likes: 12,740
From: South Carolina
No, don`t hack up the wiring harness...
The bike has a P&A connector under the left side cover, it can supply switched or unswitched power, whichever you want depending on which wires you connect to.
You make up a Molex MX-150 (gray) connector with the wires at the appropriate location in the connector, run the wires up to where ever you want. The power can be controlled by the ignition switch or by the switch on the back of the fork tin.
The bike has a P&A connector under the left side cover, it can supply switched or unswitched power, whichever you want depending on which wires you connect to.
You make up a Molex MX-150 (gray) connector with the wires at the appropriate location in the connector, run the wires up to where ever you want. The power can be controlled by the ignition switch or by the switch on the back of the fork tin.
Thread Starter
|
Intermediate
Joined: Mar 2006
Posts: 30
Likes: 9
Ok.... it looks like it is the front fender tip lamp connector. Diagram has it as connector 32A. If I could source the Male half of this plug I could make up a short lead(12") rather than running all the way from the left side panel accessory location.
Seasoned HDF Member
Joined: May 2008
Posts: 21,173
Likes: 12,740
From: South Carolina
Looks like it is the position lamp connector, 29 B.
Look at the wiring diagram, it shows a position lamp connector for FLHR, Blue and Black wires.
You may not find a mating connector, it is designed to go onto a component that has spade connectors (a lamp).
Look at the wiring diagram, it shows a position lamp connector for FLHR, Blue and Black wires.
You may not find a mating connector, it is designed to go onto a component that has spade connectors (a lamp).
Last edited by Dan89FLSTC; Jul 23, 2019 at 12:40 PM.
Grand HDF Member
Joined: Apr 2010
Posts: 3,590
Likes: 1,151
From: Brandon,Fl
Look about 6'' back from your headlight plug for a orange wire with a white stripe and a black wire ( they should have a blade connector on them ). Orange will be positive and black will be negative, they are a switched power supply.....
