Problem with timing an Evo

Thread Tools

Search this Thread

Old Mar 7, 2023 | 01:48 PM
Share
  #31
nutsandbolts5212's Avatar
nutsandbolts5212
Thread Starter
|
Road Warrior
Veteran: Navy
15 Year Member
Liked
Joined: Sep 2009
Posts: 1,426
Likes: 821
From: Shitcago, Illinois
Default
Originally Posted by Max Headflow
You'll have to take it apart. It might have mucked up the valve seal and could possibly have caused the valve to sick.. Don't know for sure...

Call larry or text him a pic..
I just did, waiting for a response. I'll take some more photos when I get it apart.

Ride safe!!

Reply
0
Old Mar 7, 2023 | 01:52 PM
Share
  #32
wfolarry's Avatar
wfolarry
Tourer
15 Year Member
Liked
Loved
Community Favorite
Joined: Apr 2007
Posts: 412
Likes: 281
From:
Default
It looks like the condom to me too. Strange.
Bring the head over & it's a quick fix.

Reply
4
Old Mar 7, 2023 | 02:39 PM
Share
  #33
nutsandbolts5212's Avatar
nutsandbolts5212
Thread Starter
|
Road Warrior
Veteran: Navy
15 Year Member
Liked
Joined: Sep 2009
Posts: 1,426
Likes: 821
From: Shitcago, Illinois
Default

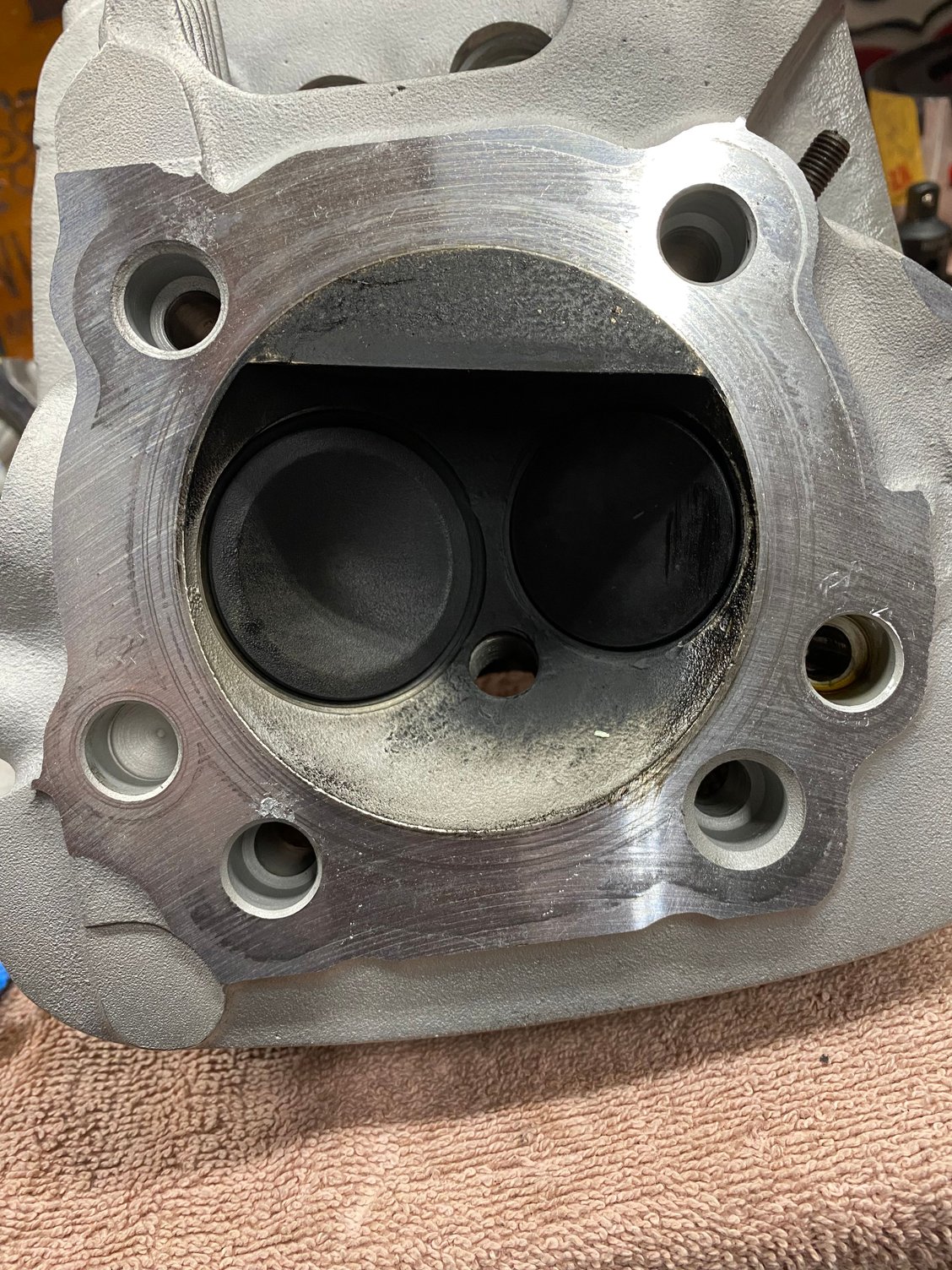

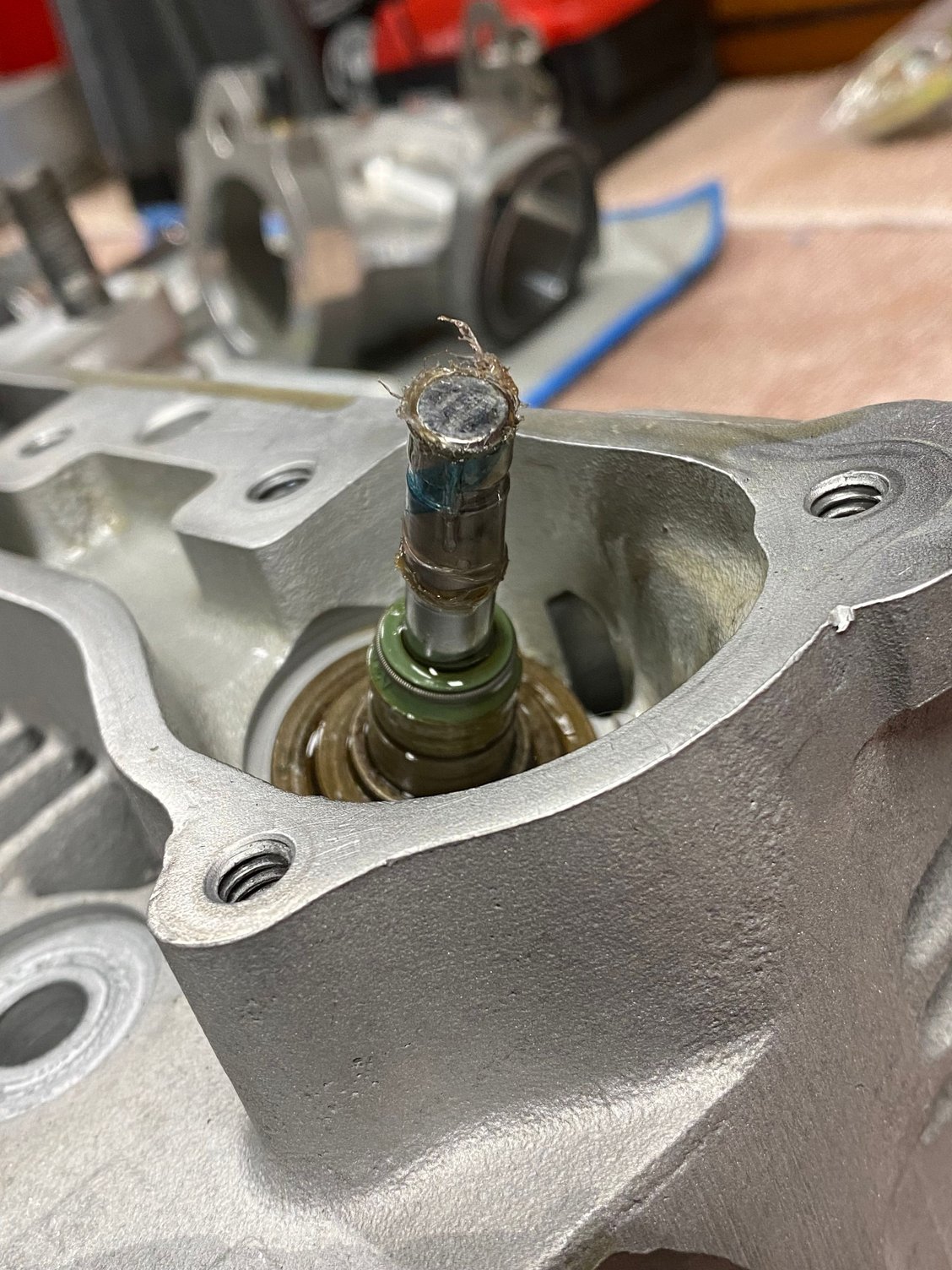

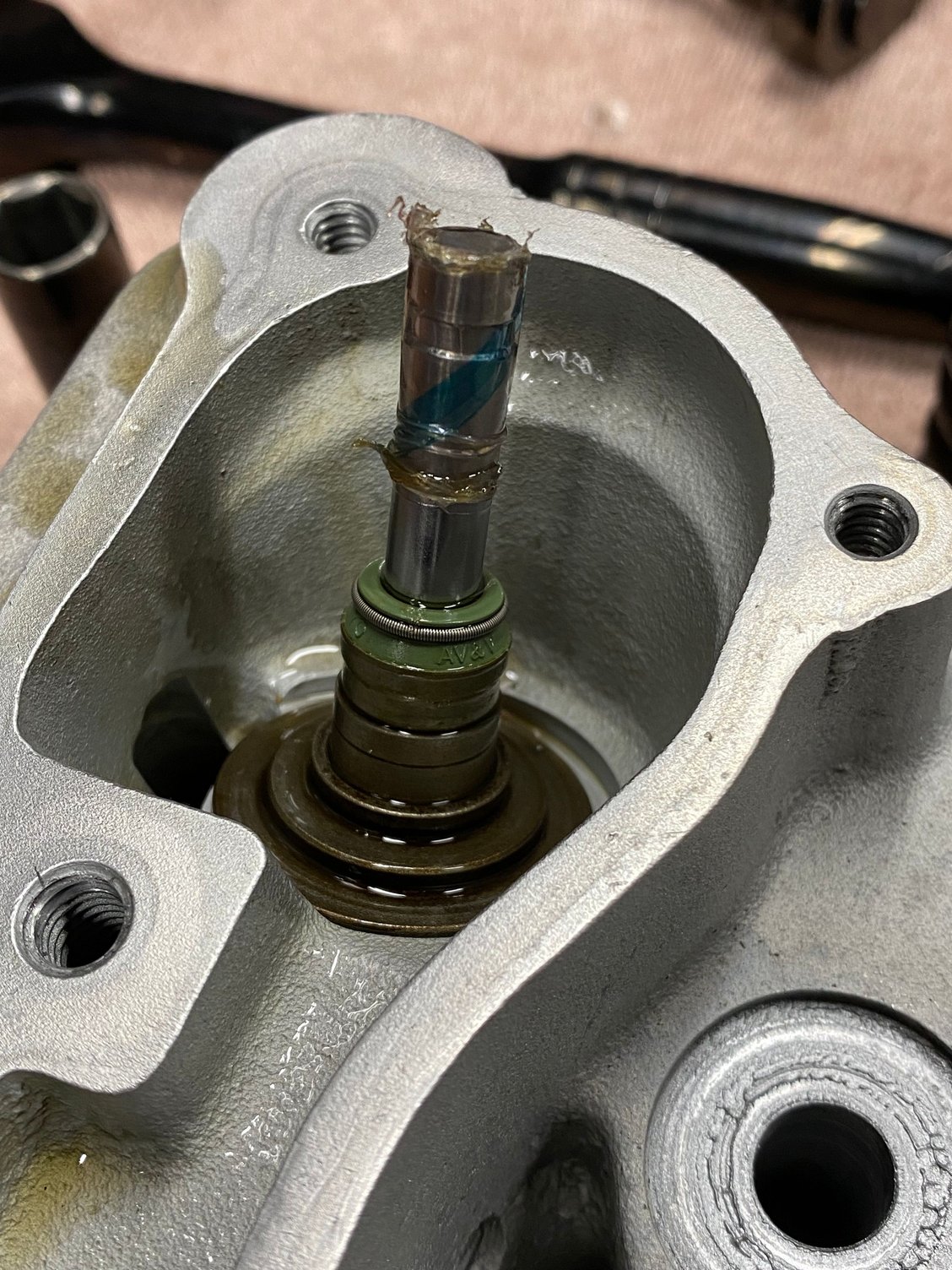

Here are some photos



Ride safe!

Reply
0
Old Mar 7, 2023 | 03:11 PM
Share
  #34
nutsandbolts5212's Avatar
nutsandbolts5212
Thread Starter
|
Road Warrior
Veteran: Navy
15 Year Member
Liked
Joined: Sep 2009
Posts: 1,426
Likes: 821
From: Shitcago, Illinois
Default

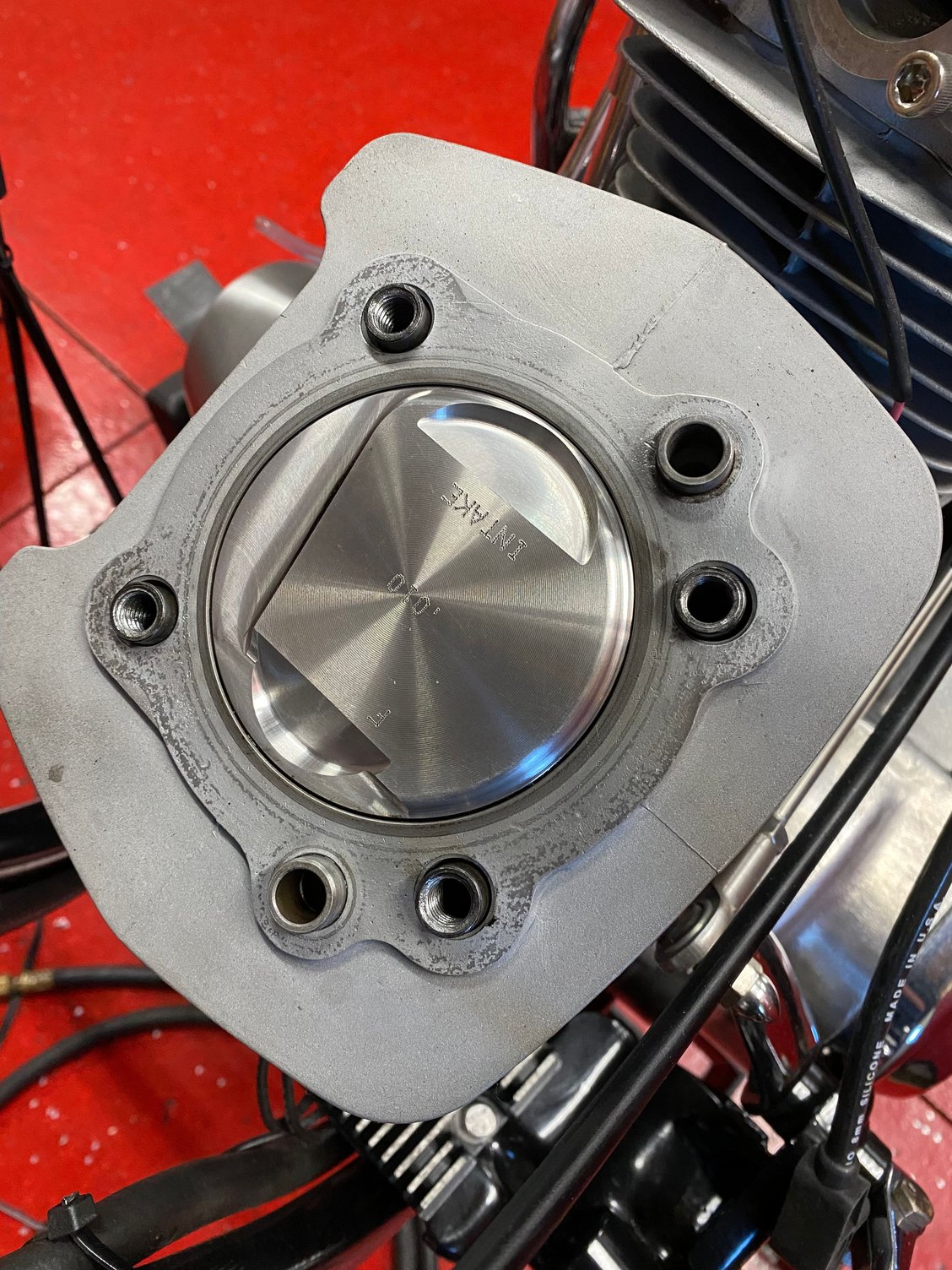

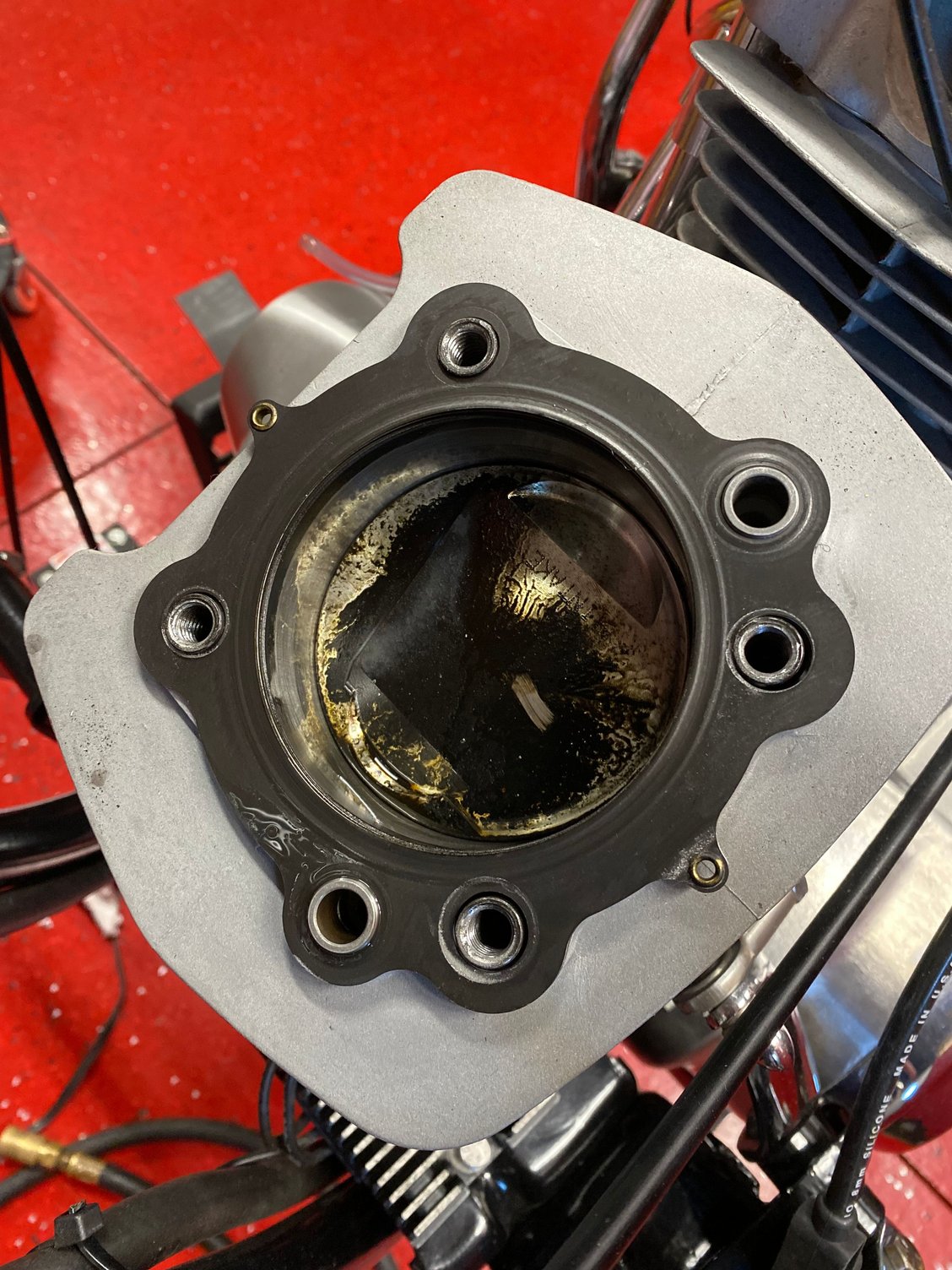

Here we go




Ride safe!

Reply
0
Old Mar 7, 2023 | 03:20 PM
Share
  #35
Max Headflow's Avatar
Max Headflow
Seasoned HDF Member
Joined: Dec 2005
Posts: 19,899
Likes: 8,006
From: poway
Default

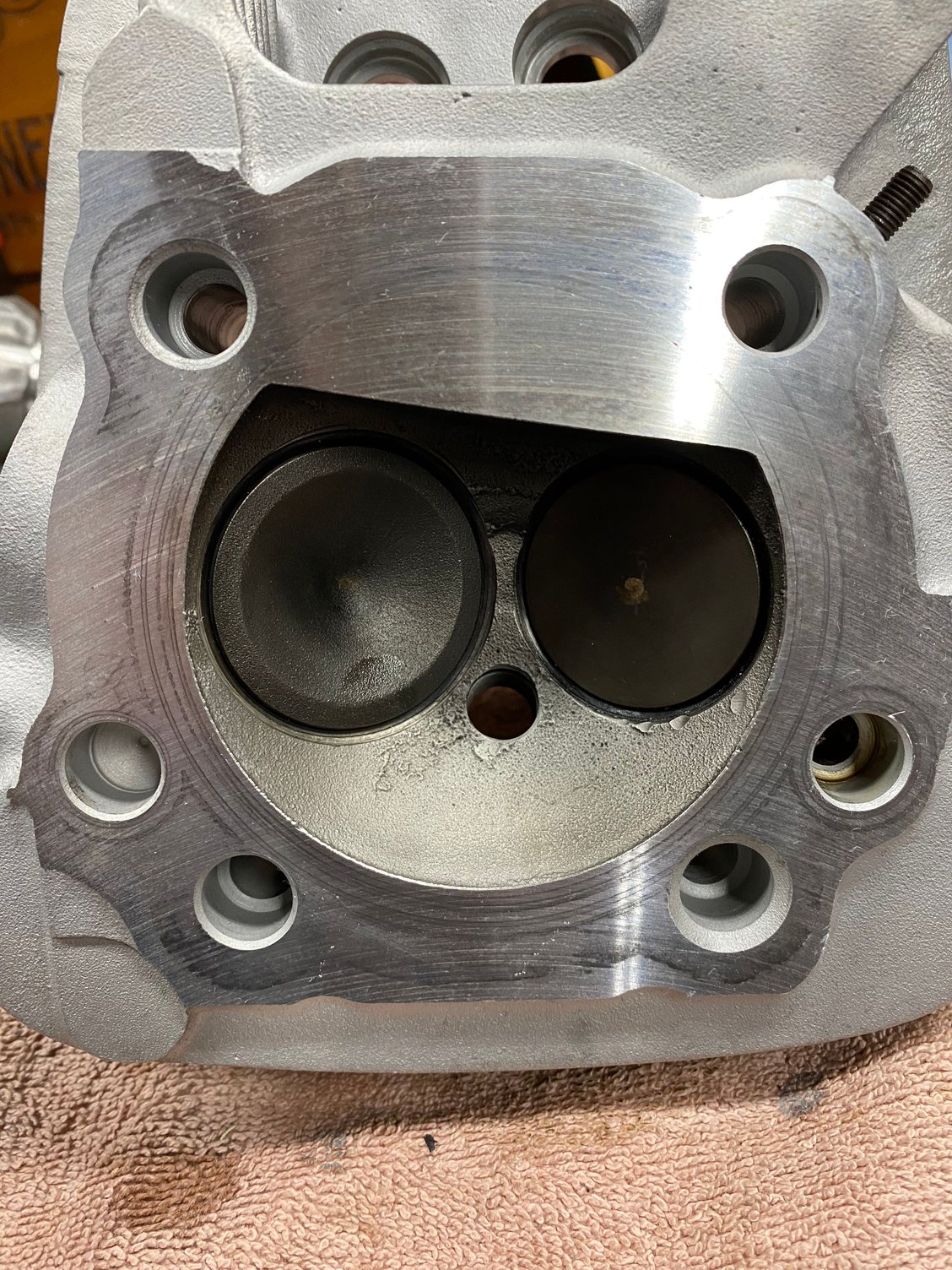

Looking at the head gasket seat on the surface of the head, you weren't doing something like putting O rings on the head to cylinder dowels?

Your cylinder studs look back asswards also...

Reply
0
Old Mar 7, 2023 | 03:26 PM
Share
  #36
Max Headflow's Avatar
Max Headflow
Seasoned HDF Member
Joined: Dec 2005
Posts: 19,899
Likes: 8,006
From: poway
Default

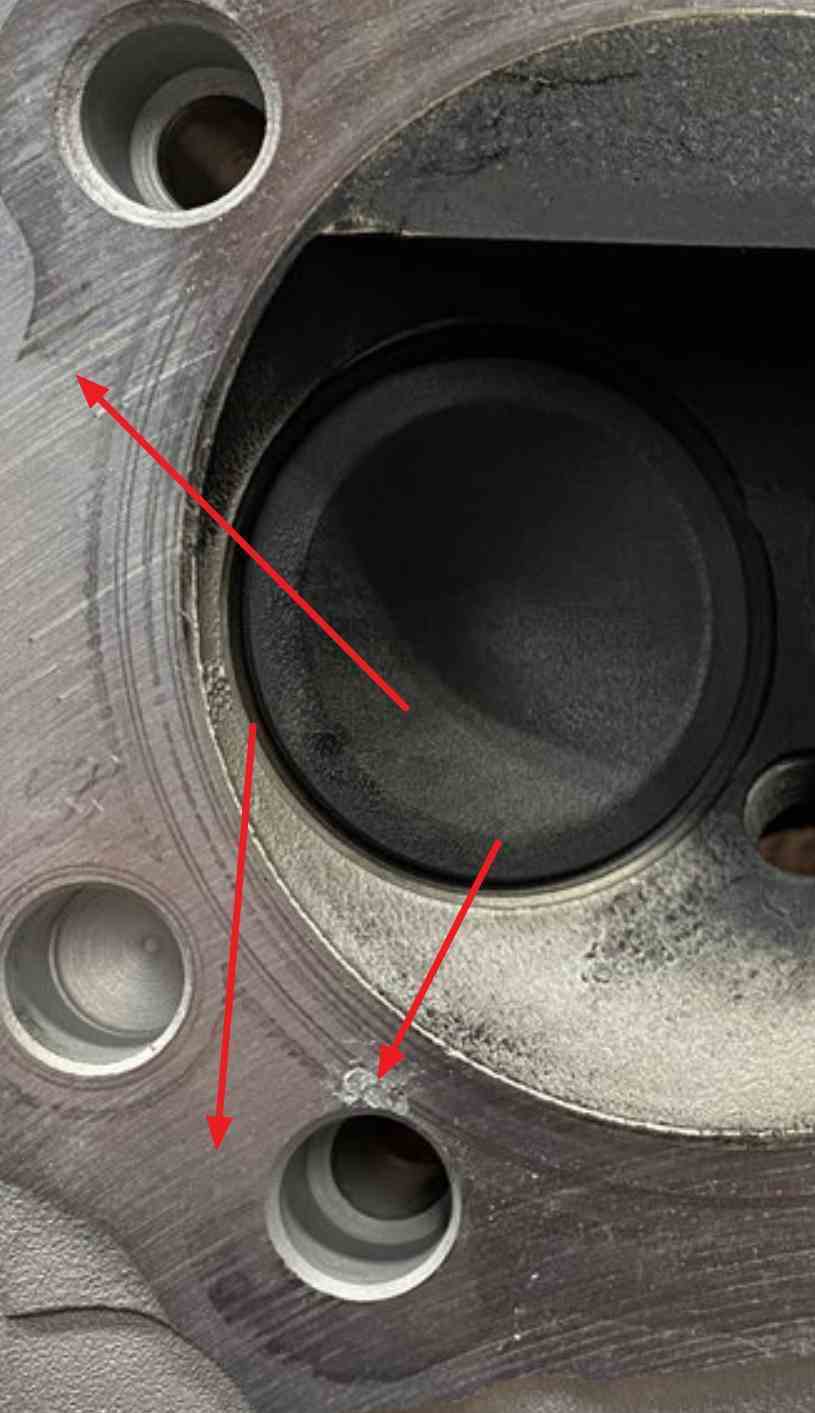

Marks from the HG seem to disappear near the dowel.. That other mark near the dowel is curious..



Reply
0
Old Mar 7, 2023 | 04:52 PM
Share
  #37
nutsandbolts5212's Avatar
nutsandbolts5212
Thread Starter
|
Road Warrior
Veteran: Navy
15 Year Member
Liked
Joined: Sep 2009
Posts: 1,426
Likes: 821
From: Shitcago, Illinois
Default
What do you mean by the cylinder studs looking back asswards? They are the originals. Only used the cometic gasket for the head gasket, no o-rings.

That curious looking stuff was some white powder residue, not sure about that. It wiped right off.

Ride safe!

Reply
0
Old Mar 7, 2023 | 05:00 PM
Share
  #38
nutsandbolts5212's Avatar
nutsandbolts5212
Thread Starter
|
Road Warrior
Veteran: Navy
15 Year Member
Liked
Joined: Sep 2009
Posts: 1,426
Likes: 821
From: Shitcago, Illinois
Default
Ok, all cleaned up and going back together. Any suggestions before I start??




Ride safe!

Reply
0
HD Forum Stories

The Best of Harley-Davidson for Lifelong Riders

story-0

7 Times Harley-Davidson Chucked Tradition Out the Window

 Verdad Gallardo
story-1

7 Surprising Harley-Davidson Products that Are Not Motorcycles

 Verdad Gallardo
story-2

8 Best Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-3

10 Worst Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-4

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

 Verdad Gallardo
story-5

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

 Verdad Gallardo
story-6

Harley-Davidson Reveals Super Cool Cafe Racer Concept

 Verdad Gallardo
story-7

Engraved Rebellion: Inside Bundnerbike's Glam Rock II

 Verdad Gallardo
story-8

10 Motorcycles You Should Never Buy

 Joe Kucinski
story-9

10 Things Harley-Davidson Needs to Fix in 2026

 Verdad Gallardo
Old Mar 7, 2023 | 05:23 PM
Share
  #39
Hey Man's Avatar
Hey Man
Seasoned HDF Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2015
Posts: 10,284
Likes: 7,766
From: West Central FL
Default
Originally Posted by nutsandbolts5212
Hey guys, I'm trying to set the timing correctly on this Evo. I have installed a Dynatek S ignition and after following the timing set up instructions provided the bike is still running rough. I have an S&S E carb with an initial basic set up done per S&S. When the bike is running I can hear the timing is off, some white smoke from the exhaust, and when I close the choke she sputters and dies. This is the first start or starts on a complete motor rebuild. Can the timing be adjusted while the motor is running?
Any advice appreciated and thanks in advance?
Ride safe!
Your slow jet might be plugged.

Originally Posted by nutsandbolts5212
Here are the plugs and I'm running rich. Took a camera down the front spark plug hole and have what appears to be a gas/oil mix on top of the piston. The rear is fine.



Ride safe!
Most likely from running it too long with the enrichener on.


Originally Posted by nutsandbolts5212
Also, the carb was set up per S&S basic set up proceedures.

Ride safe!
Turn off your accelerator pump before making carb adjustments.

Reply
0
Old Mar 7, 2023 | 06:19 PM
Share
  #40
nutsandbolts5212's Avatar
nutsandbolts5212
Thread Starter
|
Road Warrior
Veteran: Navy
15 Year Member
Liked
Joined: Sep 2009
Posts: 1,426
Likes: 821
From: Shitcago, Illinois
Default
Originally Posted by Hey Man
Your slow jet might be plugged.

Brand spanking new carb and checked them just in case, all good on the jets.

Most likely from running it too long with the enrichener on.

Yes that's what others said too. Thanks

Turn off your accelerator pump before making carb adjustments.
Yes I will and thanks again.

Ride safe!

Last edited by nutsandbolts5212; Mar 7, 2023 at 06:26 PM.
Reply
0
