Starter issues
HDF Community Team
Joined: Dec 2005
Posts: 5,442
Likes: 2,638
From: NC USA
The only way you can get that reading is if the engine/trans/inner assembly is not properly grounded... period!
You need to go back over your ground connections (with the positive disconnected) and I'm not familiar with the exact locations on the model, but it's something like - battery (-) to starter mounting bolt, another cable or strap from inner primary to frame. They HAVE to be clean and tight.
When you get all in order and if you get a spark reconnecting the battery terminal, disconnect the main cable from the starter and try again.
Last edited by t150vej; Sep 18, 2020 at 02:16 PM.
Thread Starter
|
Advanced
Joined: Aug 2020
Posts: 69
Likes: 4
From: CA
Forget dropping $100. an another meter for now, you have other (and more simple problems)
The only way you can get that reading is if the engine/trans/inner assembly is not properly grounded... period!
You need to go back over your ground connections (with the positive disconnected) and I'm not familiar with the exact locations on the model, but it's something like - battery (-) to starter mounting bolt, another cable or strap from inner primary to frame.
When you get all in order and if you get a spark reconnecting the battery terminal, disconnect the main cable from the starter and try again.
The only way you can get that reading is if the engine/trans/inner assembly is not properly grounded... period!
You need to go back over your ground connections (with the positive disconnected) and I'm not familiar with the exact locations on the model, but it's something like - battery (-) to starter mounting bolt, another cable or strap from inner primary to frame.
When you get all in order and if you get a spark reconnecting the battery terminal, disconnect the main cable from the starter and try again.
HDF Community Team
Joined: Dec 2005
Posts: 5,442
Likes: 2,638
From: NC USA
Still, no way you can get a voltage reading on the engine/trans/inner from the battery negative unless the assembly is not grounded. Trust me!
Checking continuity won't get you where you need be on those connections. You can get a good, low ohm reading but when under load, they will go away.
It could be a bad cable, rather than a bad connection. They can and will break/corrode inside the insulation, usually at or near an end terminal. Heck, your entire problem could simply be a bad cable and nothing more.
If you have some jumper cables, connect one of them from the battery negative to somewhere on the engine (where ever you can) or a heavy wire from a bolt to the battery negative just to check. Be aware, anything smaller than a 8 gauge will get real hot, real quick if you operate the starter.
Try that..........
Seasoned HDF Member
Joined: Aug 2007
Posts: 8,205
Likes: 3,092
From: NW AR
Yes, that's the meter I am talking about. It's really nice. The DC amp meter is just so handy to have. Like, how much is your car alternator charging? Clamp it around the negative battery cable and measure the current flow. How much current is that starter drawing? Clamp it around the cable and crank it. It has an Inrush setting so you can see the max at start too. Really nice. Not saying you necessarily need it now, but it is very hand to have.
Yeah, the inner primary should not read +12v. Sounds like the ground is missing. Disconnect the battery. Measure the resistance between the negative battery cable and the primary. Should be very low.
Yeah, the inner primary should not read +12v. Sounds like the ground is missing. Disconnect the battery. Measure the resistance between the negative battery cable and the primary. Should be very low.
Last edited by Dr.Hess; Sep 18, 2020 at 02:44 PM.
HDF Community Team
Joined: Dec 2005
Posts: 5,442
Likes: 2,638
From: NC USA
I advised against that meter mainly out of envy - I don't have one
... yet.
Thread Starter
|
Advanced
Joined: Aug 2020
Posts: 69
Likes: 4
From: CA
Yes, that's the meter I am talking about. It's really nice. The DC amp meter is just so handy to have. Like, how much is your car alternator charging? Clamp it around the negative battery cable and measure the current flow. How much current is that starter drawing? Clamp it around the cable and crank it. It has an Inrush setting so you can see the max at start too. Really nice. Not saying you necessarily need it now, but it is very hand to have.
Yeah, the inner primary should not read +12v. Sounds like the ground is missing. Disconnect the battery. Measure the resistance between the negative battery cable and the primary. Should be very low.
Yeah, the inner primary should not read +12v. Sounds like the ground is missing. Disconnect the battery. Measure the resistance between the negative battery cable and the primary. Should be very low.
I also am known to have a spending problem when it comes to my bikes and tools, needless to say I just got home from harbor freight and now I gotta learn how to use this thing

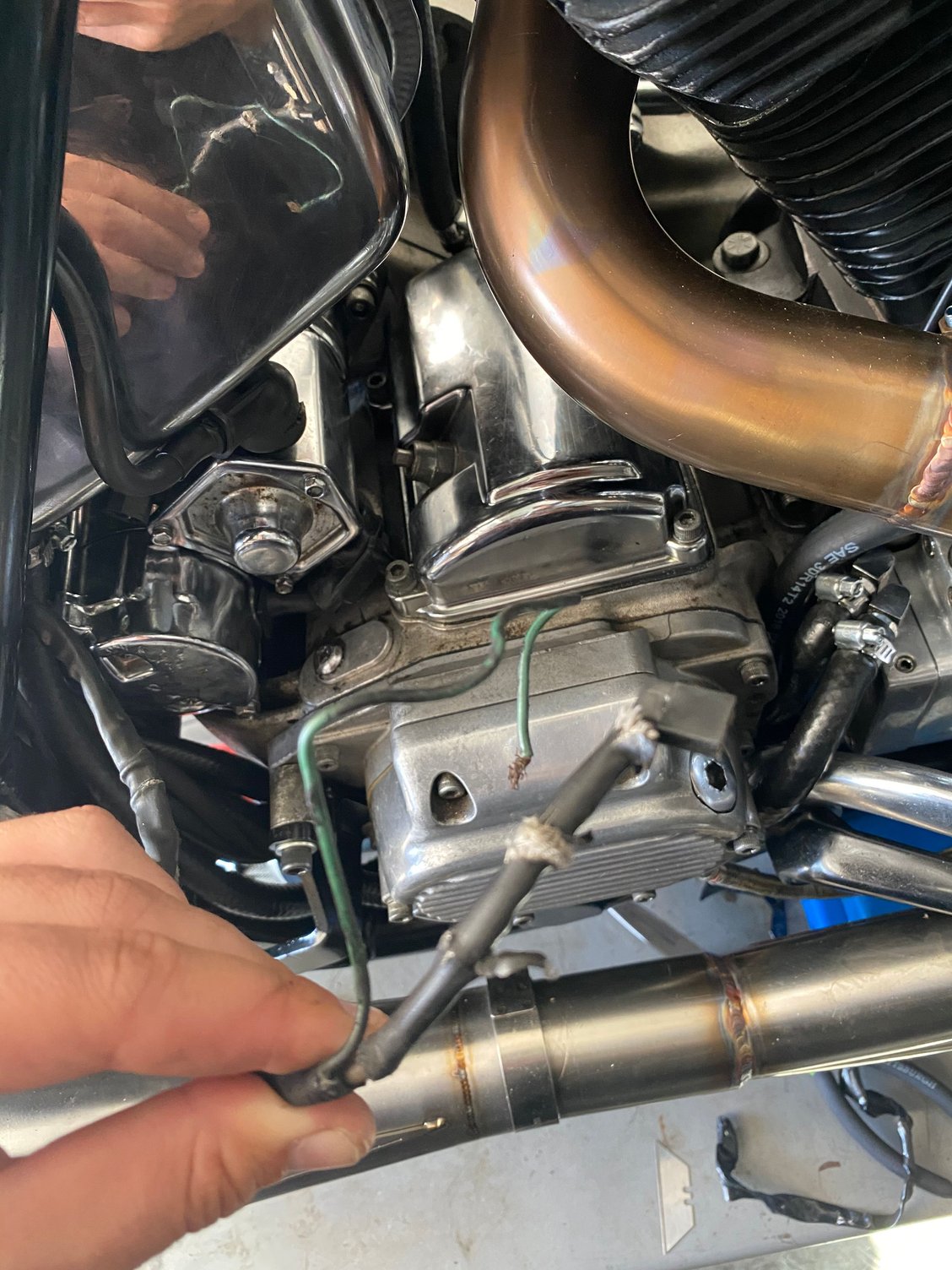

Thread Starter
|
Advanced
Joined: Aug 2020
Posts: 69
Likes: 4
From: CA
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
Jason Momoa Is Turning Classic Harleys Into PHEVs
Verdad Gallardo
Harley-Davidson Fat Boy Becomes a Dark, Decepticon-Inspired Custom
Verdad Gallardo
6 Weirdest Harley-Davidsons Ever Sold to the Public
Verdad Gallardo
7 Times Harley-Davidson Chucked Tradition Out the Window
Verdad Gallardo
7 Surprising Harley-Davidson Products that Are Not Motorcycles
Verdad Gallardo
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Seasoned HDF Member
Joined: May 2008
Posts: 21,234
Likes: 12,836
From: South Carolina
I think post #120 tells us what we need to know.
Solenoid wire disconnected, start button pressed, relay clicks (normal)
Solenoid wire connected, start button pressed, bike power drops.
Defect in starter solenoid body or motor, or the battery has no poop.
Solenoid wire disconnected, start button pressed, relay clicks (normal)
Solenoid wire connected, start button pressed, bike power drops.
Defect in starter solenoid body or motor, or the battery has no poop.
