FLH wiring problems
Thread Starter
|
Cruiser
Joined: Oct 2020
Posts: 215
Likes: 77
From: Georgia
I will loosen a clamp to see if there are O-rings in there. I wonder if that could be why it seems to be cold natured, it has to warm up for a bit before you can go. I have never run an S&S carb and figured that was the issue.
Thread Starter
|
Cruiser
Joined: Oct 2020
Posts: 215
Likes: 77
From: Georgia
Glad you are making progress. Looks like the yellow wire is/was being used as a ground wire? You can see the black wire from the horn and going into your harness for the horn button. If so the ground wire cannot be connected to the same spot where the horn wire goes to the button.
And on a side note, what is stcking out atop your fork stem cover?
And on a side note, what is stcking out atop your fork stem cover?
Seasoned HDF Member
Joined: Nov 2009
Posts: 15,705
Likes: 22,718
From: Farmington ,MS
Blue "trailer connectors" are always trouble, and unless your going to an AMCA event there is no reason to keep them...Harley had recalls for electrical fires during this era... and all these pics show the reasons why...
Several aftermarket companies make nice wiring harnesses that eliminate all problems, and you can pick up some extra features like self cancelling turn signals while your at it...
No reason to keep a known problems because it is "original"...especially if you plan on riding the bike more than showing it...YMMV
Thread Starter
|
Cruiser
Joined: Oct 2020
Posts: 215
Likes: 77
From: Georgia
Blue "trailer connectors" are always trouble, and unless your going to an AMCA event there is no reason to keep them...Harley had recalls for electrical fires during this era... and all these pics show the reasons why...
Several aftermarket companies make nice wiring harnesses that eliminate all problems, and you can pick up some extra features like self cancelling turn signals while your at it...
No reason to keep a known problems because it is "original"...especially if you plan on riding the bike more than showing it...YMMV
Several aftermarket companies make nice wiring harnesses that eliminate all problems, and you can pick up some extra features like self cancelling turn signals while your at it...
No reason to keep a known problems because it is "original"...especially if you plan on riding the bike more than showing it...YMMV
For now, I want to get everything working so it will pass inspection and I can take my mc license test on the bike. I have never had a street bike in the 13 yrs I have been in Atlanta, only a race bike, so I have to get a GA Motorcycle license. Go figure, I have a race license but can't ride on the street without riding through some orange cones.
Seasoned HDF Member
Joined: Oct 2005
Posts: 7,481
Likes: 3,677
From: Santa Klaus County, Cali
I personally like crimp connectors and shrink tube. That is probably what I will eventually use, I don't like those blue connectors. I work on too many trailers at work where those things lose connection over time.
For now, I want to get everything working so it will pass inspection and I can take my mc license test on the bike. I have never had a street bike in the 13 yrs I have been in Atlanta, only a race bike, so I have to get a GA Motorcycle license. Go figure, I have a race license but can't ride on the street without riding through some orange cones.
For now, I want to get everything working so it will pass inspection and I can take my mc license test on the bike. I have never had a street bike in the 13 yrs I have been in Atlanta, only a race bike, so I have to get a GA Motorcycle license. Go figure, I have a race license but can't ride on the street without riding through some orange cones.
I have a race license but can't ride on the street without riding through some orange cones.
Wow, that really bites on the m/c licensing.
Thread Starter
|
Cruiser
Joined: Oct 2020
Posts: 215
Likes: 77
From: Georgia

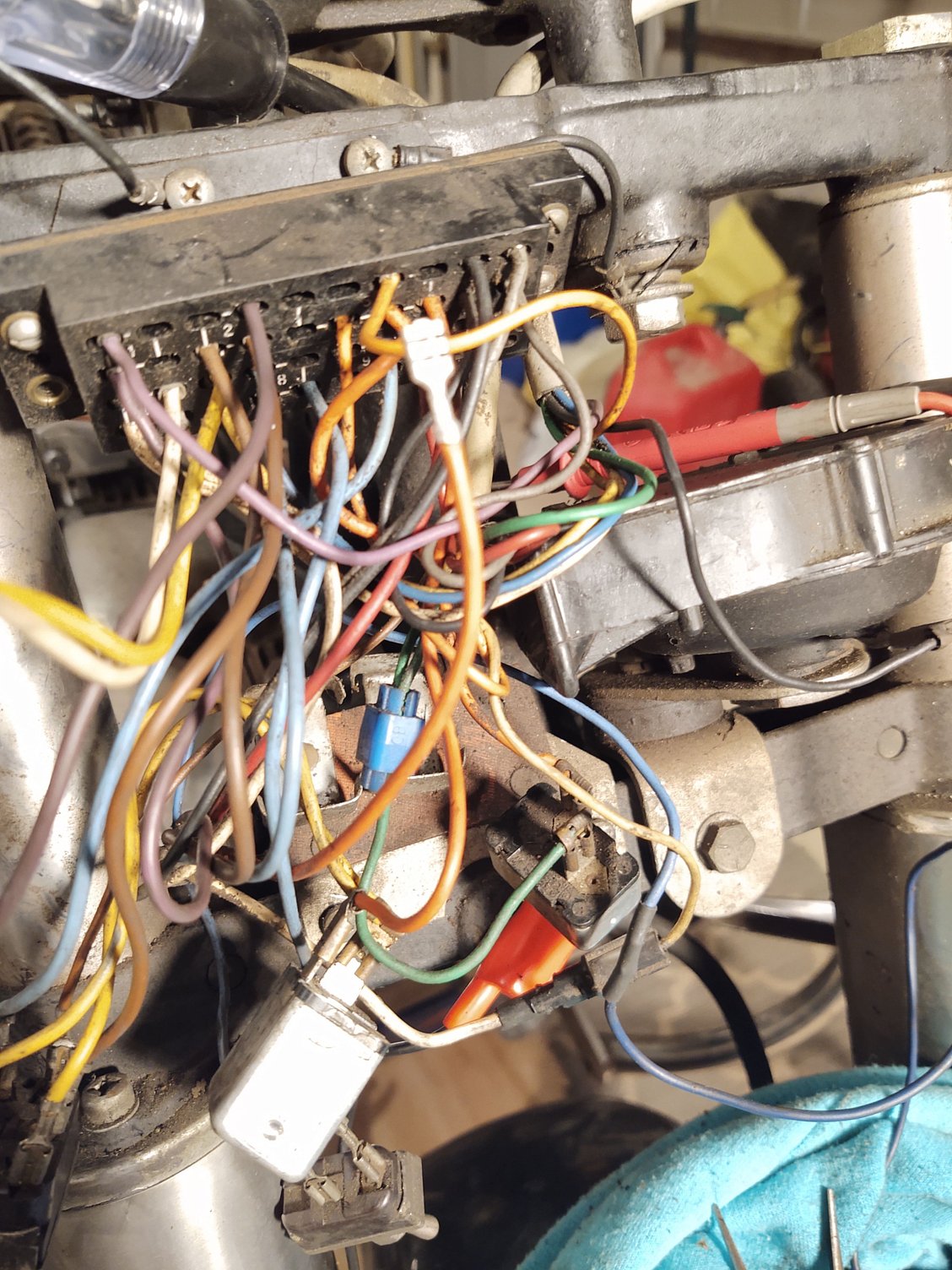

I pulled the nacelle and went through all the wires on the terminal block and flashers and here is what I found. When I plug the orange wire from the circuit breaker into the terminal block the breaker trips. I unplugged all the wires one at a time and unplugged the power wire to each flasher and switch one at a time and every time the breaker tripped, so I can't figure out where the short is but I am startng to suspect the terminal block.
When I plug that orange wire into block 3 the cb trips. I can't find anything that seems to be shorted in the nacelle. I ran a jumper from the circuit breaker to the flashers and got lights on the rear, the front turn signal wires and not connected
Seasoned HDF Member
Joined: Oct 2005
Posts: 7,481
Likes: 3,677
From: Santa Klaus County, Cali
There are 8 positions for the orange wires on the #3 position on the terminal block. You are only using half of them. You need to see if you can get power w/o tripping the cb. The panel could be a dead stick or it may be just a simple matter of finding the short in the #3 position and plugging into a different part of the #3 block..
Have a buddy with a 76 FLH. Wiring was a bit f'd up. He'd turn on the switch and the bike would start cranking w/o pressing the start button. Turned out to be a short in the panel. We were able to isolate the short and adjsut the position of the wires w/in the panel. Worth a try and can save a few bucks.
Just think of that panel as a rather crude circuit board
Have a buddy with a 76 FLH. Wiring was a bit f'd up. He'd turn on the switch and the bike would start cranking w/o pressing the start button. Turned out to be a short in the panel. We were able to isolate the short and adjsut the position of the wires w/in the panel. Worth a try and can save a few bucks.
Just think of that panel as a rather crude circuit board
Last edited by panz4ever; Oct 16, 2020 at 12:29 AM.
Seasoned HDF Member
Joined: Nov 2006
Posts: 12,878
Likes: 5,448
From: la la land jerzey
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Southpaw Super Glide: A Left-Hand-Drive 1979 Harley FXE Built to Fit the Rider
Verdad Gallardo
The Best and Worst Harley-Davidson Moves of 2025
Verdad Gallardo
Thread Starter
|
Cruiser
Joined: Oct 2020
Posts: 215
Likes: 77
From: Georgia
I was suspicious of the front bls but disconnected the red wire at block 10 and it still tripped the breaker. This would have killed the power to the switch, correct?
Thread Starter
|
Cruiser
Joined: Oct 2020
Posts: 215
Likes: 77
From: Georgia
There are 8 positions for the orange wires on the #3 position on the terminal block. You are only using half of them. You need to see if you can get power w/o tripping the cb. The panel could be a dead stick or it may be just a simple matter of finding the short in the #3 position and plugging into a different part of the #3 block..
Have a buddy with a 76 FLH. Wiring was a bit f'd up. He'd turn on the switch and the bike would start cranking w/o pressing the start button. Turned out to be a short in the panel. We were able to isolate the short and adjsut the position of the wires w/in the panel. Worth a try and can save a few bucks.
Just think of that panel as a rather crude circuit board
Have a buddy with a 76 FLH. Wiring was a bit f'd up. He'd turn on the switch and the bike would start cranking w/o pressing the start button. Turned out to be a short in the panel. We were able to isolate the short and adjsut the position of the wires w/in the panel. Worth a try and can save a few bucks.
Just think of that panel as a rather crude circuit board
If this is the case, am I looking on Ebay for one? My nearest dealer doesn't seem at all interested in looking for parts for my bike.
