FLH wiring problems
Seasoned HDF Member
Joined: Jul 2014
Posts: 8,565
Likes: 3,318
From: Cental, MI
Folks always have a hard time with using the Correct Stuff there...and then they dream up all kinds of "fixes" for the Problems they Cause..
Just a heads-up.. Yer gonna hear all kinds of crazy Fixes, and methods... when in fact... the Stock Setup works Just Fine.. Where Stock depends Entirely, on the Correct Components...
The Most Likely in Fact!!!
Seasoned HDF Member
Joined: Oct 2005
Posts: 7,481
Likes: 3,677
From: Santa Klaus County, Cali
So I can plug the orange power wire into any lug in block #3? I will try that tonight. I was wondering about last night after I had given up and hit the shower. It does sound like I could have a bad terminal block though, right?
If this is the case, am I looking on Ebay for one? My nearest dealer doesn't seem at all interested in looking for parts for my bike.
If this is the case, am I looking on Ebay for one? My nearest dealer doesn't seem at all interested in looking for parts for my bike.
Thread Starter
|
Cruiser
Joined: Oct 2020
Posts: 215
Likes: 77
From: Georgia
Then those are Not the correct clamps that I see ... unless it is the angle of the pohoto or something... the clamps for Rubberbands should be Split.
Folks always have a hard time with using the Correct Stuff there...and then they dream up all kinds of "fixes" for the Problems they Cause..
Just a heads-up.. Yer gonna hear all kinds of crazy Fixes, and methods... when in fact... the Stock Setup works Just Fine.. Where Stock depends Entirely, on the Correct Components...
The Most Likely in Fact!!!
Folks always have a hard time with using the Correct Stuff there...and then they dream up all kinds of "fixes" for the Problems they Cause..
Just a heads-up.. Yer gonna hear all kinds of crazy Fixes, and methods... when in fact... the Stock Setup works Just Fine.. Where Stock depends Entirely, on the Correct Components...
The Most Likely in Fact!!!
Racepress, I will get better photos of the intake this weekend. I need to remove those big *** black zip ties that they had holding the fuel line. They would need to come off to remove the manifold anyway, and then I can get a better pic from the other side.
I will keep you all updated. Thank you so much for taking time to help me figure this out!
Advanced
Joined: Aug 2019
Posts: 53
Likes: 16
From: New Berlin, Wisconsin USA
That looks like a good winter project. Can we see some pictures of the whole bike?
Continuity testing is important. To check the quality of the connection, the voltage drop test gives more information. Just connect a battery and voltmeter in line with the circuit you are checking.
Continuity testing is important. To check the quality of the connection, the voltage drop test gives more information. Just connect a battery and voltmeter in line with the circuit you are checking.
Stellar HDF Member
Joined: Mar 2017
Posts: 2,580
Likes: 2,155
From: australia
Black wires matter?
Thread Starter
|
Cruiser
Joined: Oct 2020
Posts: 215
Likes: 77
From: Georgia
You guys are good. This was obviously the short.
Have power to the switches now but #1 and #2 on the termnal block are dead, no power at all. All the other blocks are hot.
The 4 way flasher is getting hot so I unplugged it, looks like I need that.
The directional flasher with the green wire has 12 v in but looks like only about 6v out. This doesn't seem right.
The front brake light switch was a crumbling mess, but I have power to it. Is this part of the switch or part of the mc?
I am making progress, just slowly. Started cleaning up some of the wires to the turn signals and passing lights, I can plug the wires to the turn signals into another block and get lights, so the wiring to them seems to be in tact.
I need another drink, this gets stressful. At least I will know a bit about the wiring on the thing when I am done.
Here is a better pic of the intake
I can't tell you guys how much I appreciate the help. This is an awesome group, glad I found it.
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Southpaw Super Glide: A Left-Hand-Drive 1979 Harley FXE Built to Fit the Rider
Verdad Gallardo
Seasoned HDF Member
Joined: Jul 2014
Posts: 8,565
Likes: 3,318
From: Cental, MI
You guys are good. This was obviously the short.
Have power to the switches now but #1 and #2 on the termnal block are dead, no power at all. All the other blocks are hot.
The 4 way flasher is getting hot so I unplugged it, looks like I need that.
The directional flasher with the green wire has 12 v in but looks like only about 6v out. This doesn't seem right.
The front brake light switch was a crumbling mess, but I have power to it. Is this part of the switch or part of the mc?
I am making progress, just slowly. Started cleaning up some of the wires to the turn signals and passing lights, I can plug the wires to the turn signals into another block and get lights, so the wiring to them seems to be in tact.
I need another drink, this gets stressful. At least I will know a bit about the wiring on the thing when I am done.
Here is a better pic of the intake
I can't tell you guys how much I appreciate the help. This is an awesome group, glad I found it.
The threaded Body of the switch is still in there... Right hand Threaded...lefty Loosey..

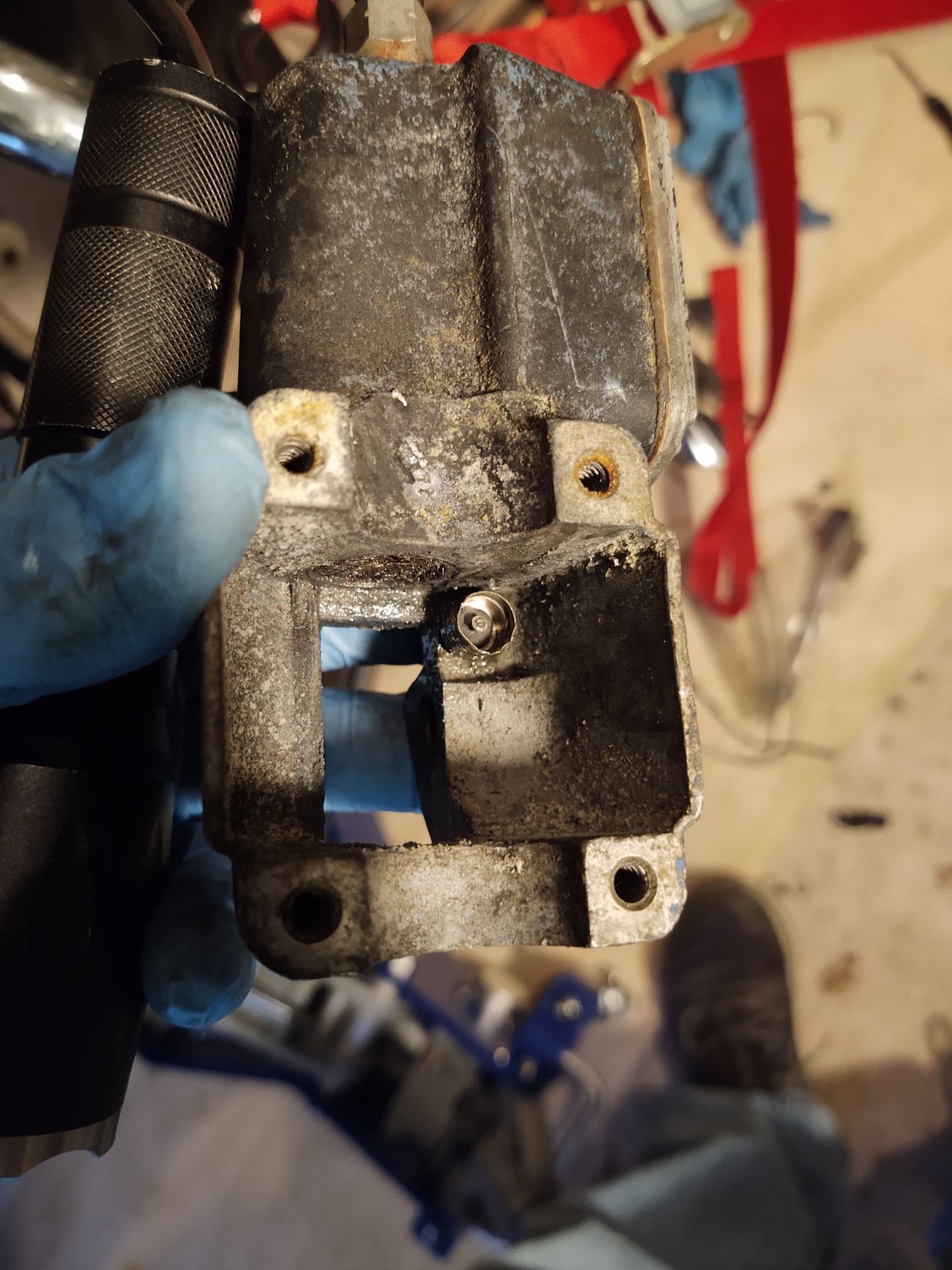

How in theee hell did that switchhousing get so Corroded.??? was this bike a Flood Victim????
Someone Did Not know what they were doing, with that Intake
I would remove that at this Point. Heaven Knows what is under there... Betting a Rubberband Setup, but????
Those clamps are for O-ring
Humor me and see what is Under there... you are going to need to anyway..
Last edited by Racepres; Oct 17, 2020 at 09:33 AM.
