handlebar wiring Deutch connectors

Thread Tools

Search this Thread

Old Feb 6, 2023 | 07:55 PM
Share
  #1
82flh's Avatar
82flh
Thread Starter
|
Tourer
Joined: Nov 2007
Posts: 387
Likes: 18
From: CLARKSVILLE,TN
Default handlebar wiring Deutch connectors
anyone know what size i need handlebar wiring Deutch connectors for under gas tank for wiring handlebar controls...i counted 18 splices in 6 wires...lol i ripped it all out ran new wire thru the bars...want to plug them back in its a 2005 fxst standard

Reply
0
Old Feb 7, 2023 | 12:42 AM
Share
  #2
daltana's Avatar
daltana
Advanced
Photogenic
Liked
Loved
Community Favorite
Joined: Jan 2023
Posts: 95
Likes: 45
From: Palm Coast FL
Default

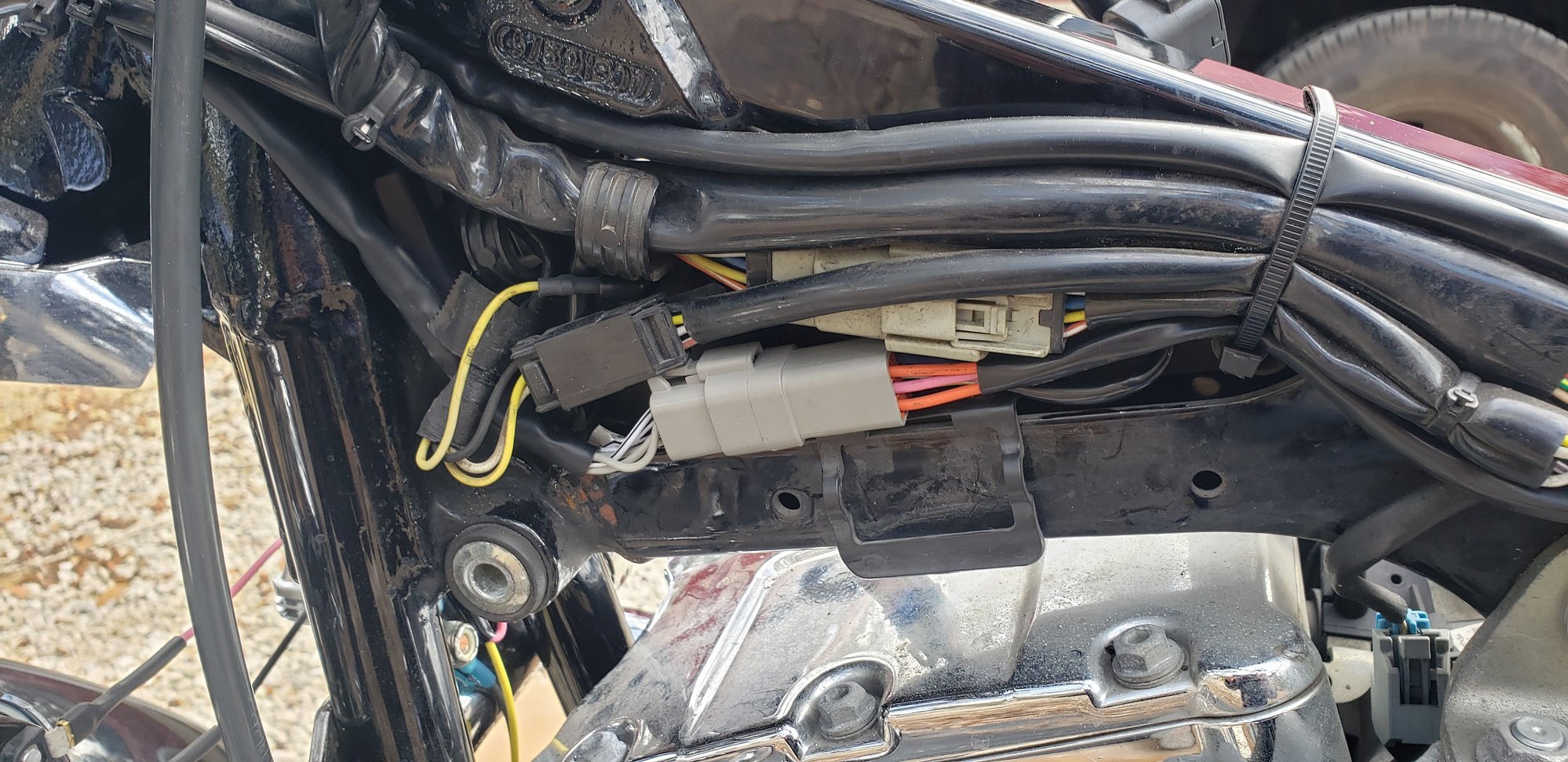

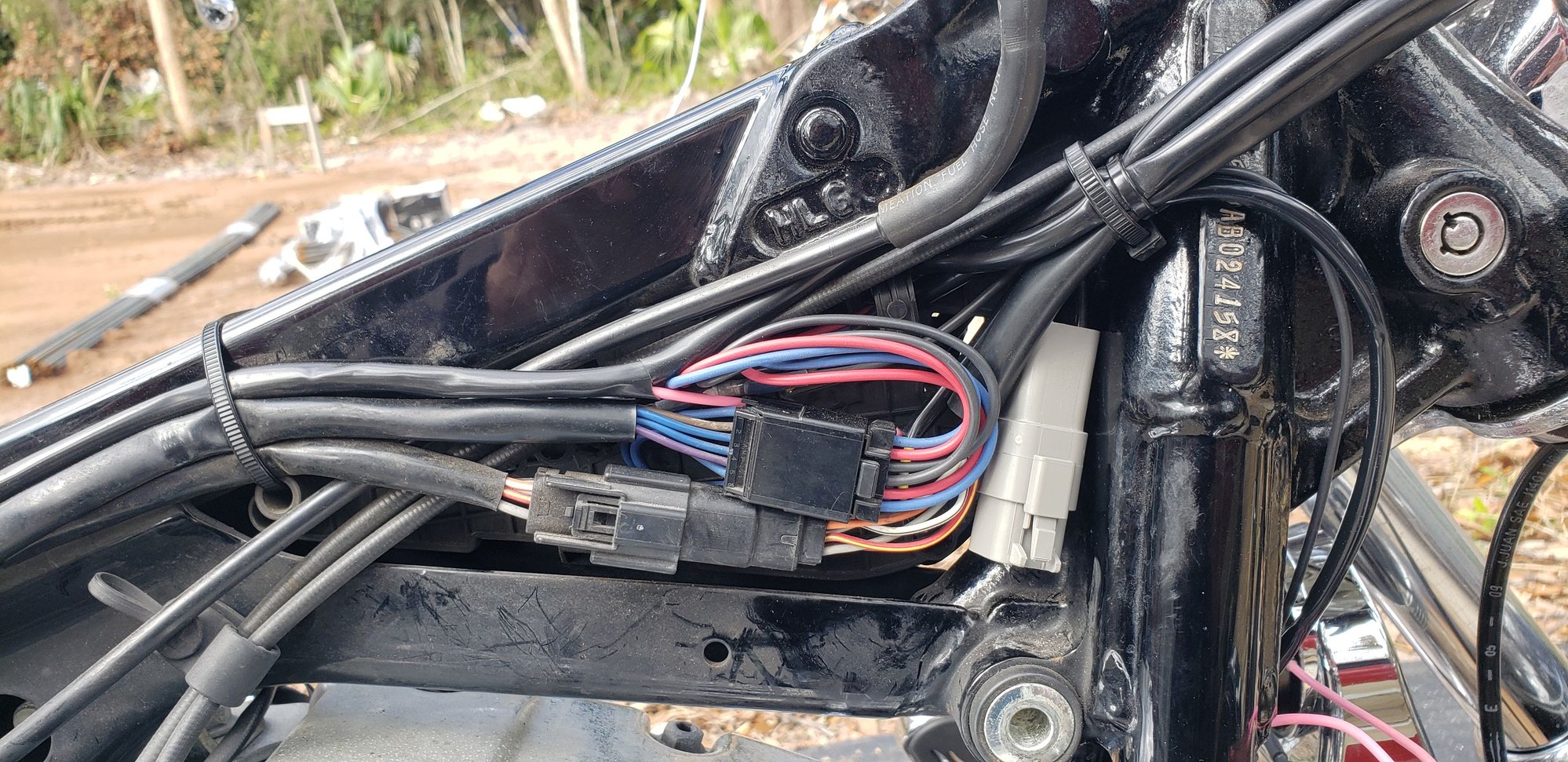

16 is a common size but it could be 20. I could mail you some 16 pins and sockets so you could check fitment. I just did some wiring mods on my 2010 fxstc.


Reply
0
Old Feb 7, 2023 | 06:39 AM
Share
  #3
Architect's Avatar
Architect
Seasoned HDF Member
15 Year Member
Joined: Apr 2010
Posts: 9,570
Likes: 7,943
From: Long Island, New York
Default
The Factory Service Manual has an excellent wiring diagram that calls out all of the connectors, which would tell you which one you need. The dealership sells them but the Bay or other sources maybe cheaper. Good luck.

Reply
0
Old Feb 7, 2023 | 07:09 AM
Share
  #4
Dan89FLSTC's Avatar
Dan89FLSTC
Seasoned HDF Member
Veteran: Navy
Active Streak: 30 Days
Top Answer: 3
Top Answer: 5
Joined: May 2008
Posts: 21,175
Likes: 12,748
From: South Carolina
Default
Here is where I have bought parts from, all have excellent service and ship promptly:

Namz

Deutsch Connector Store

DigiKey

Last edited by Dan89FLSTC; Feb 7, 2023 at 07:14 AM.
Reply
0
