Another Dreaded Click, Click...

Thread Tools

Search this Thread

Old Aug 5, 2023 | 02:14 PM
Share
  #171
mikey95hd's Avatar
mikey95hd
Thread Starter
|
Cruiser
Joined: Jul 2023
Posts: 143
Likes: 22
From: California
Default
Originally Posted by Dan89FLSTC
The starter motor should not crank with the key switchin the off position.

Let`s start tracing the wiring for the ignition switch.

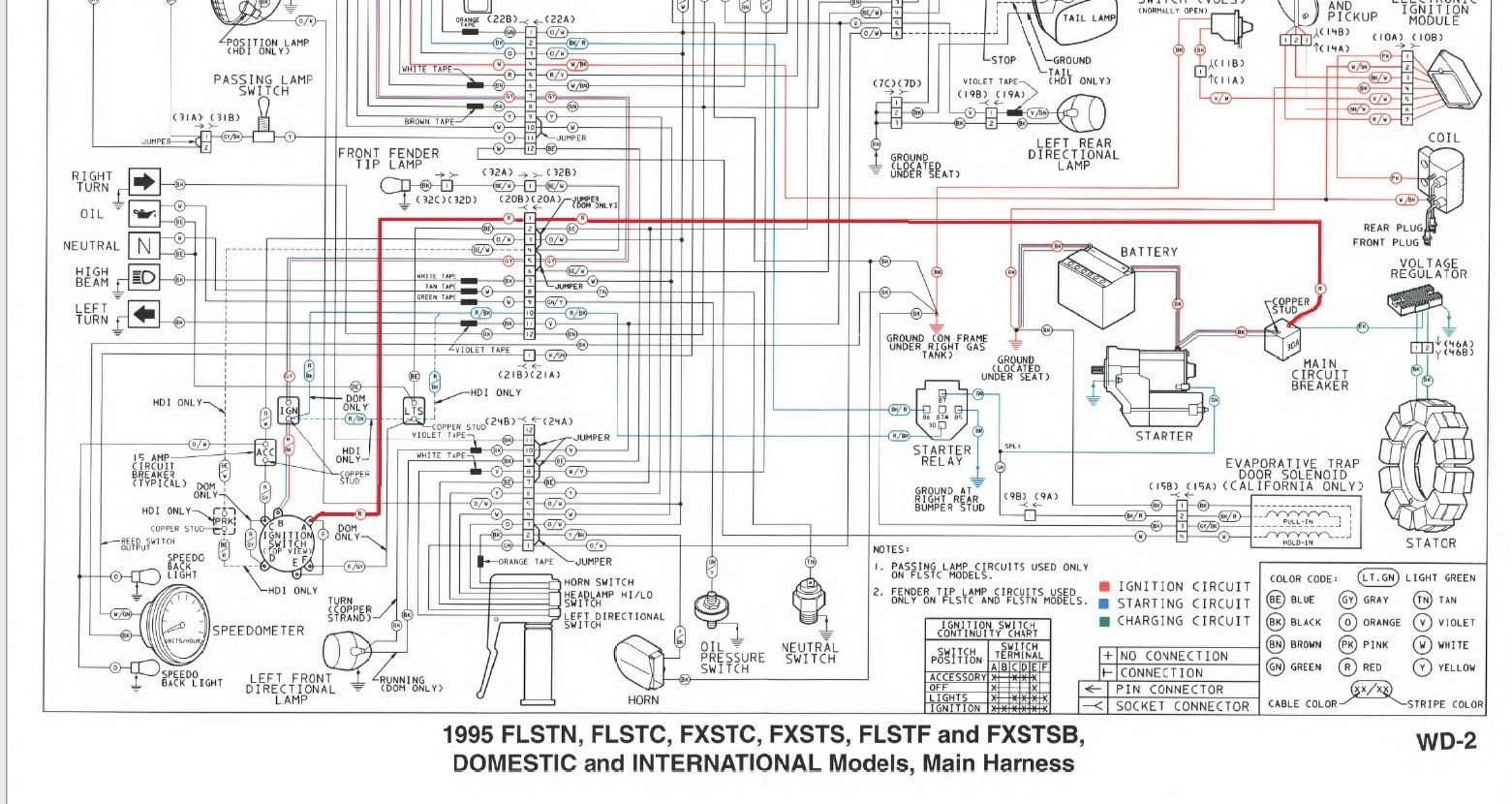

First, trace the wire that runs from the main breaker copper stud to the ignition switch tab "A".

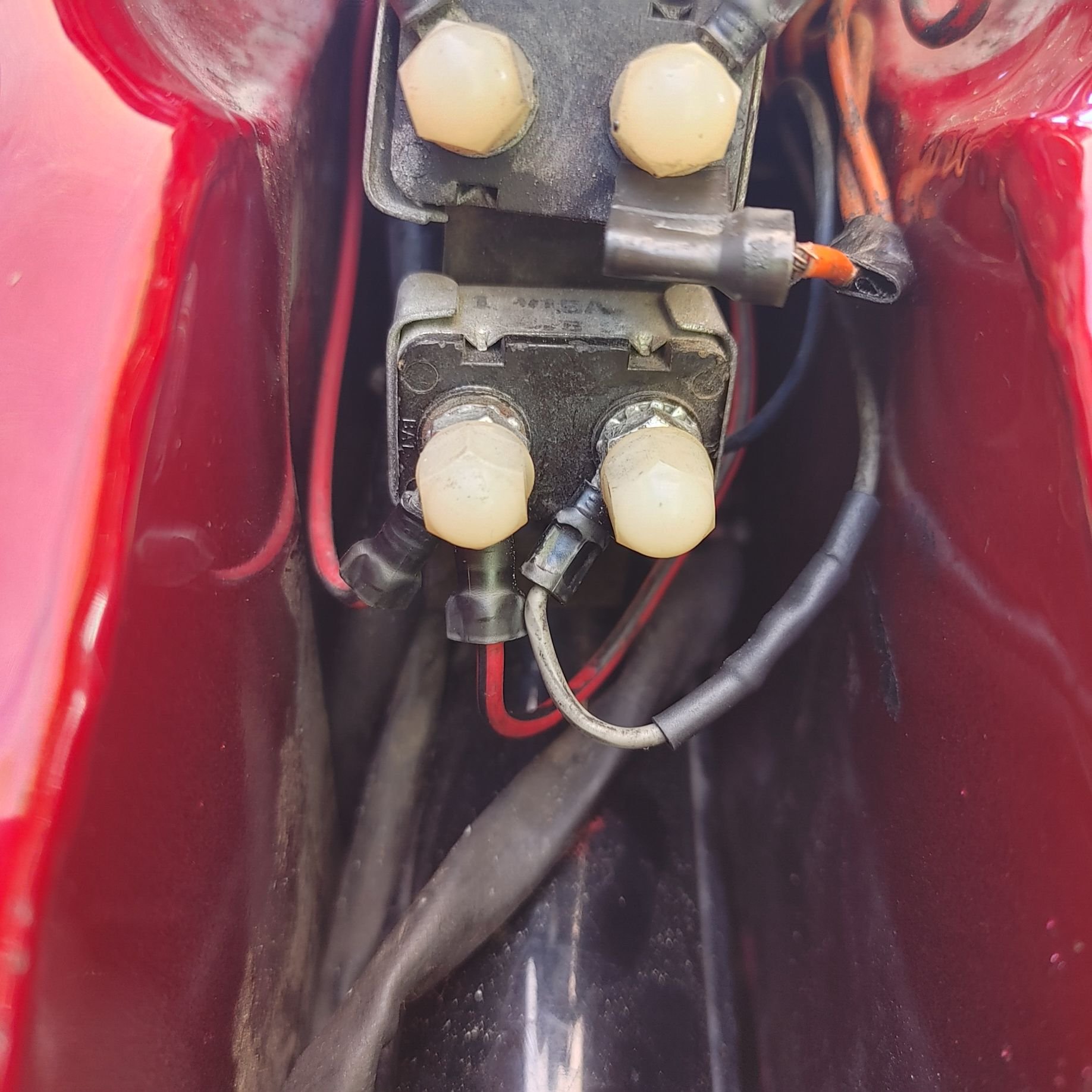

​​​​​​​That wire goes to the silver stud. Not the copper.
Should I disable the circuit we added to pin 30 from the silver stud on the main breaker?

Last edited by mikey95hd; Aug 5, 2023 at 02:26 PM.
Reply
0
Old Aug 5, 2023 | 02:35 PM
Share
  #172
Dan89FLSTC's Avatar
Dan89FLSTC
Seasoned HDF Member
Veteran: Navy
Active Streak: 30 Days
Top Answer: 3
Top Answer: 5
Joined: May 2008
Posts: 21,029
Likes: 12,550
From: South Carolina
Default
Silver stud is correct, I goofed up my text, it has been edited to silver stud.

Reply
0
Old Aug 5, 2023 | 02:38 PM
Share
  #173
mikey95hd's Avatar
mikey95hd
Thread Starter
|
Cruiser
Joined: Jul 2023
Posts: 143
Likes: 22
From: California
Default
Originally Posted by Dan89FLSTC
Silver stud is correct, I goofed up my text, it has been edited to silver stud.
Do you want me to check voltage at "A" or at the circuit breaker?

Reply
0
Old Aug 5, 2023 | 02:40 PM
Share
  #174
Dan89FLSTC's Avatar
Dan89FLSTC
Seasoned HDF Member
Veteran: Navy
Active Streak: 30 Days
Top Answer: 3
Top Answer: 5
Joined: May 2008
Posts: 21,029
Likes: 12,550
From: South Carolina
Default

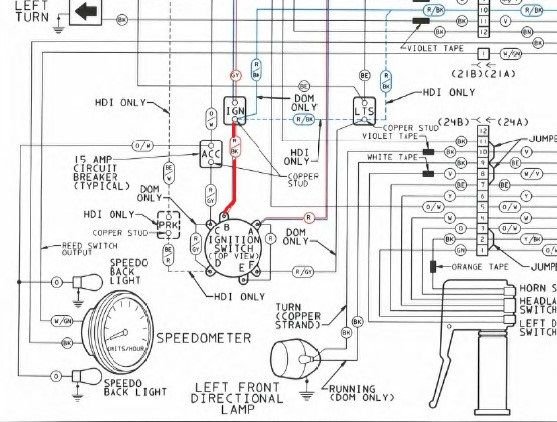

Next wire to check:



Last edited by Dan89FLSTC; Aug 5, 2023 at 02:44 PM.
Reply
0
Old Aug 5, 2023 | 03:14 PM
Share
  #175
mikey95hd's Avatar
mikey95hd
Thread Starter
|
Cruiser
Joined: Jul 2023
Posts: 143
Likes: 22
From: California
Default
Originally Posted by Dan89FLSTC
Next wire to check:

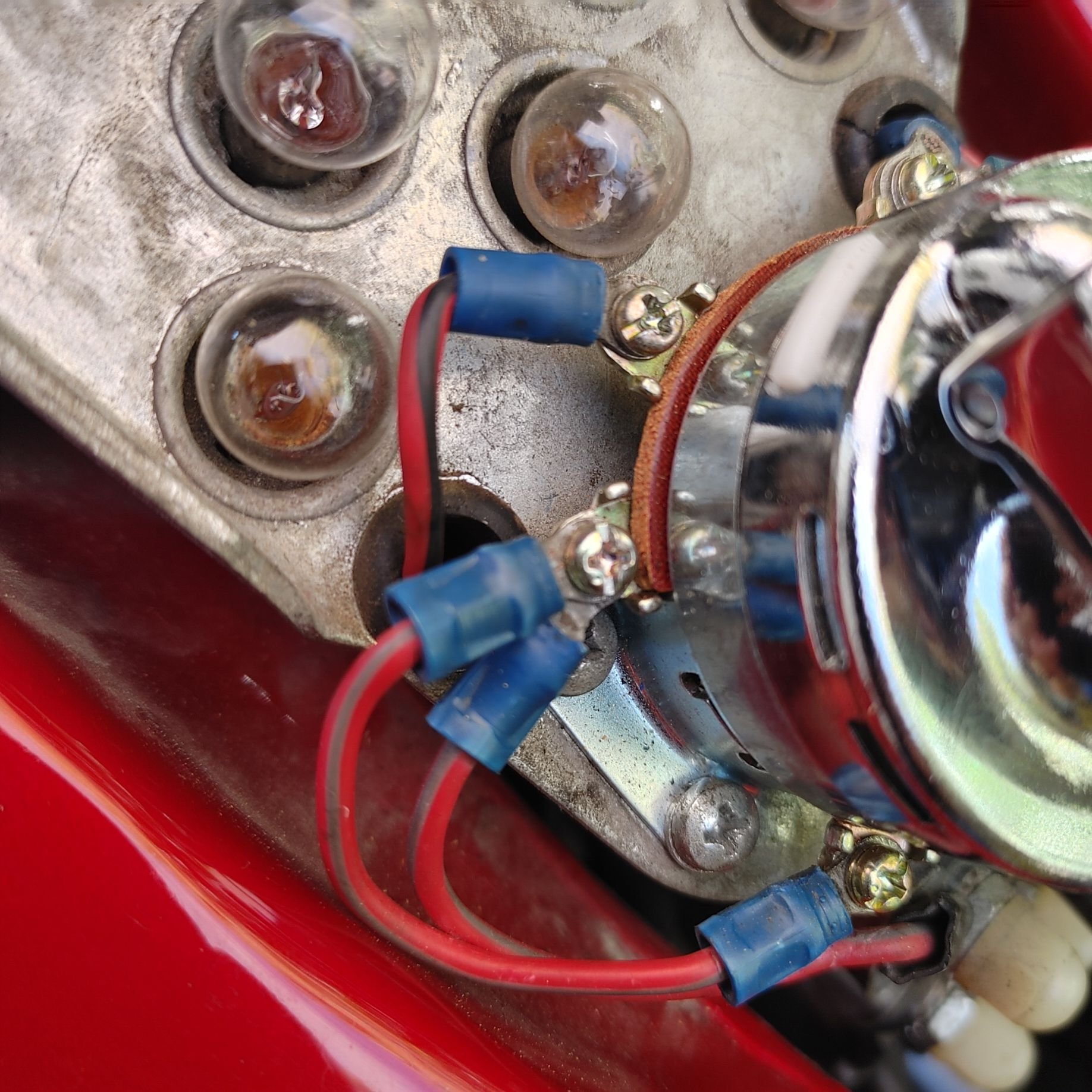

That one looks good, also have cleaned all the wires at the ignition switch.
12.46 volts at battery, 12.46 at "A", and 12.46 at "E"., With key in on position drops to 11.99...

Last edited by mikey95hd; Aug 5, 2023 at 04:52 PM.
Reply
0
Old Aug 5, 2023 | 05:30 PM
Share
  #176
Dan89FLSTC's Avatar
Dan89FLSTC
Seasoned HDF Member
Veteran: Navy
Active Streak: 30 Days
Top Answer: 3
Top Answer: 5
Joined: May 2008
Posts: 21,029
Likes: 12,550
From: South Carolina
Default
Keep in mind, there is something wired wrong somewhere, so look carefully when you trace the wires.

Next wire to check:


Last edited by Dan89FLSTC; Aug 5, 2023 at 05:31 PM.
Reply
0
Old Aug 5, 2023 | 05:43 PM
Share
  #177
mikey95hd's Avatar
mikey95hd
Thread Starter
|
Cruiser
Joined: Jul 2023
Posts: 143
Likes: 22
From: California
Default
Originally Posted by Dan89FLSTC
Keep in mind, there is something wired wrong somewhere, so look carefully when you trace the wires.

Next wire to check:

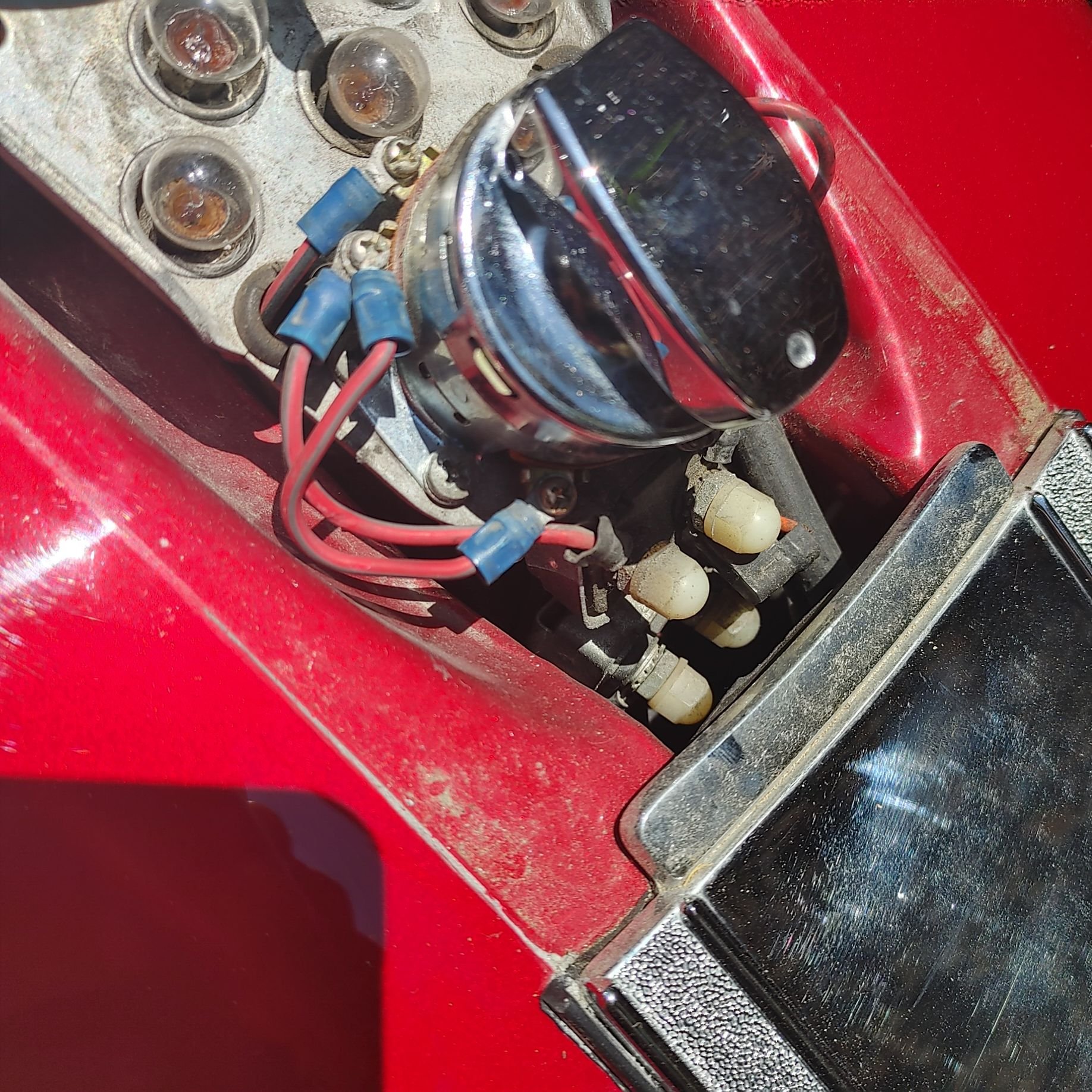

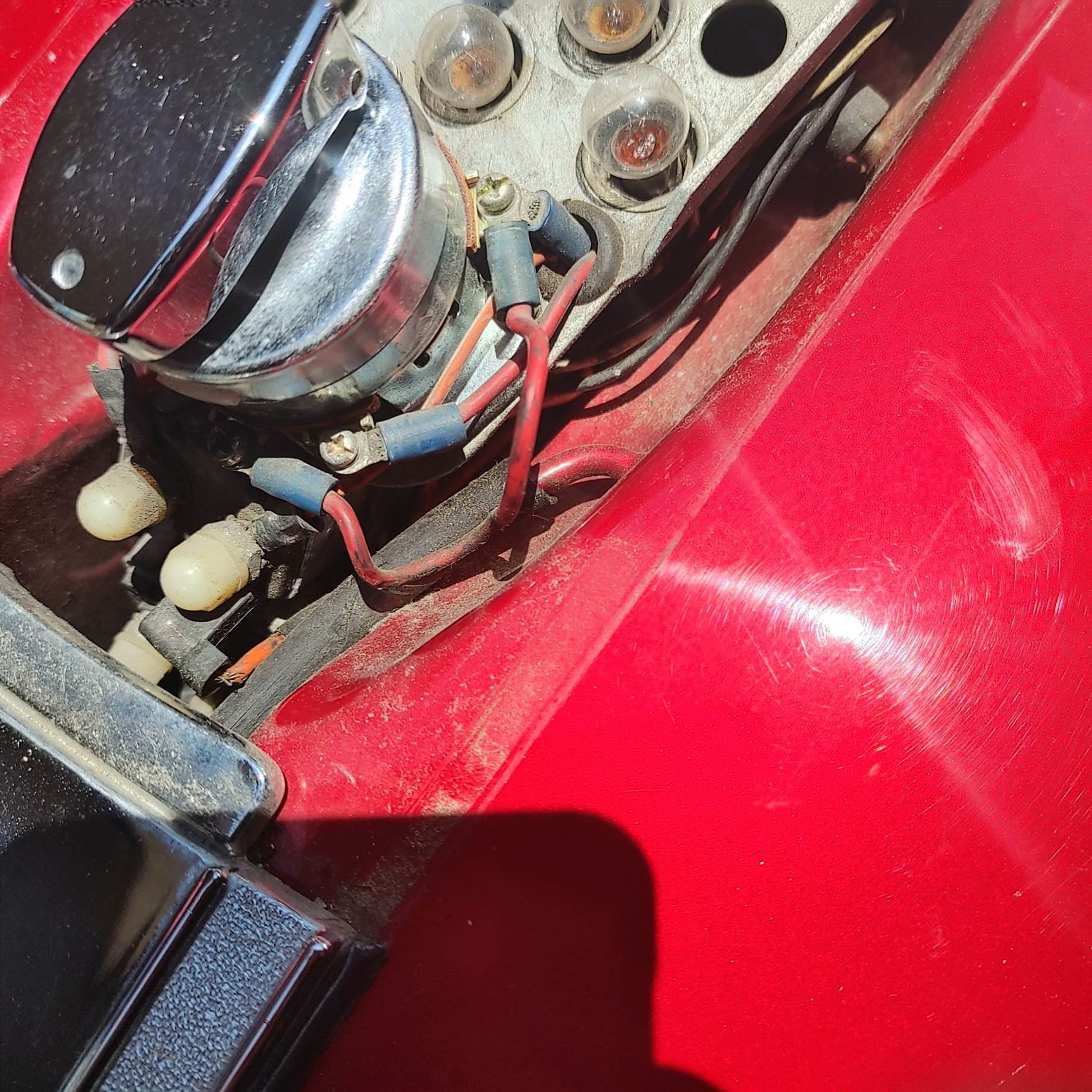

That wire looks to be connected properly.

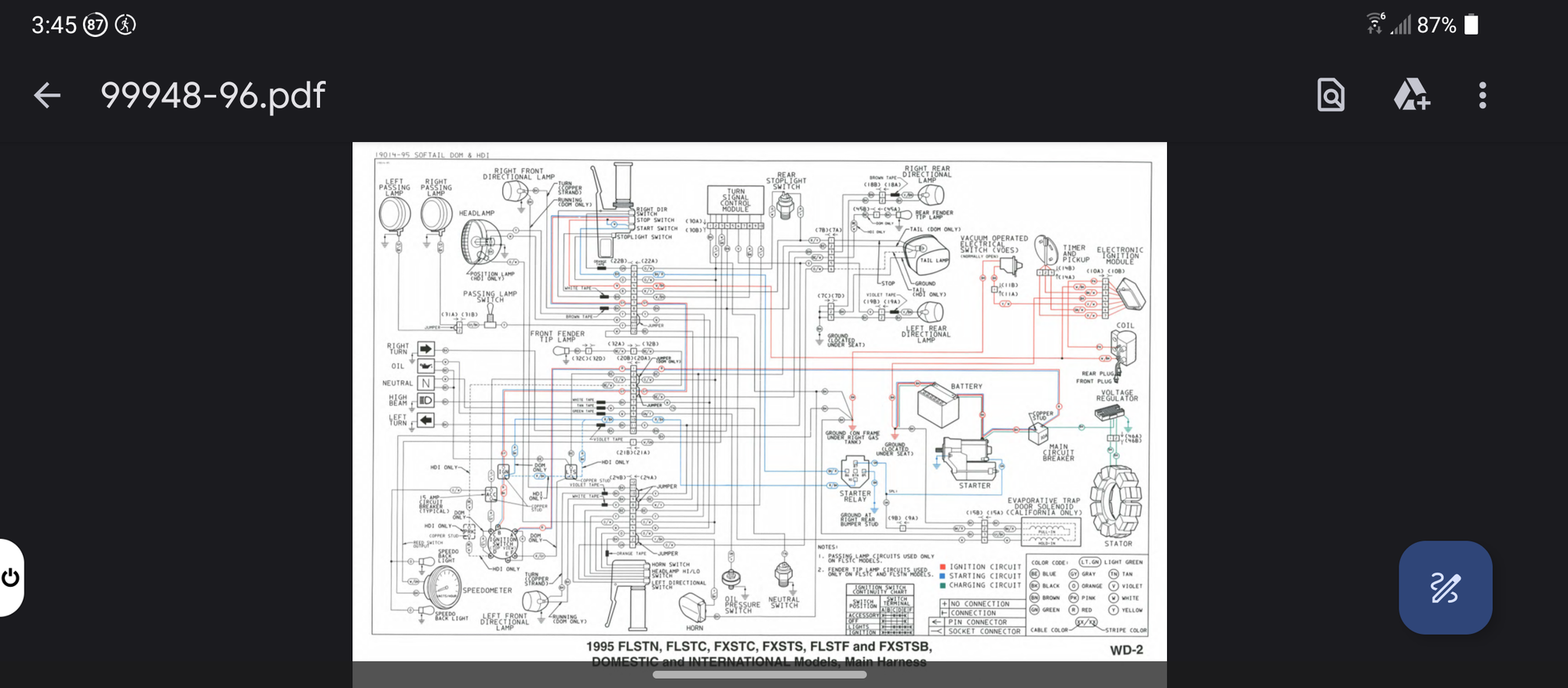

Also found the gray wire, had tape around it. So took tape off and looked like a mess, so I cut and spliced the wire. Also looking carefully for anything that looks wrong...and looking at the wiring diagram.



Also fired it up with the wire attached, from pin 30 to silver stud, I put a switch on the added circuit. Turned it to run position, fired right up, and killed circuit with switch, voltage regulator and stator are putting out battery now reads 12.79 volts.

Last edited by mikey95hd; Aug 5, 2023 at 06:05 PM.
Reply
0
Old Aug 5, 2023 | 06:20 PM
Share
  #178
mikey95hd's Avatar
mikey95hd
Thread Starter
|
Cruiser
Joined: Jul 2023
Posts: 143
Likes: 22
From: California
Default

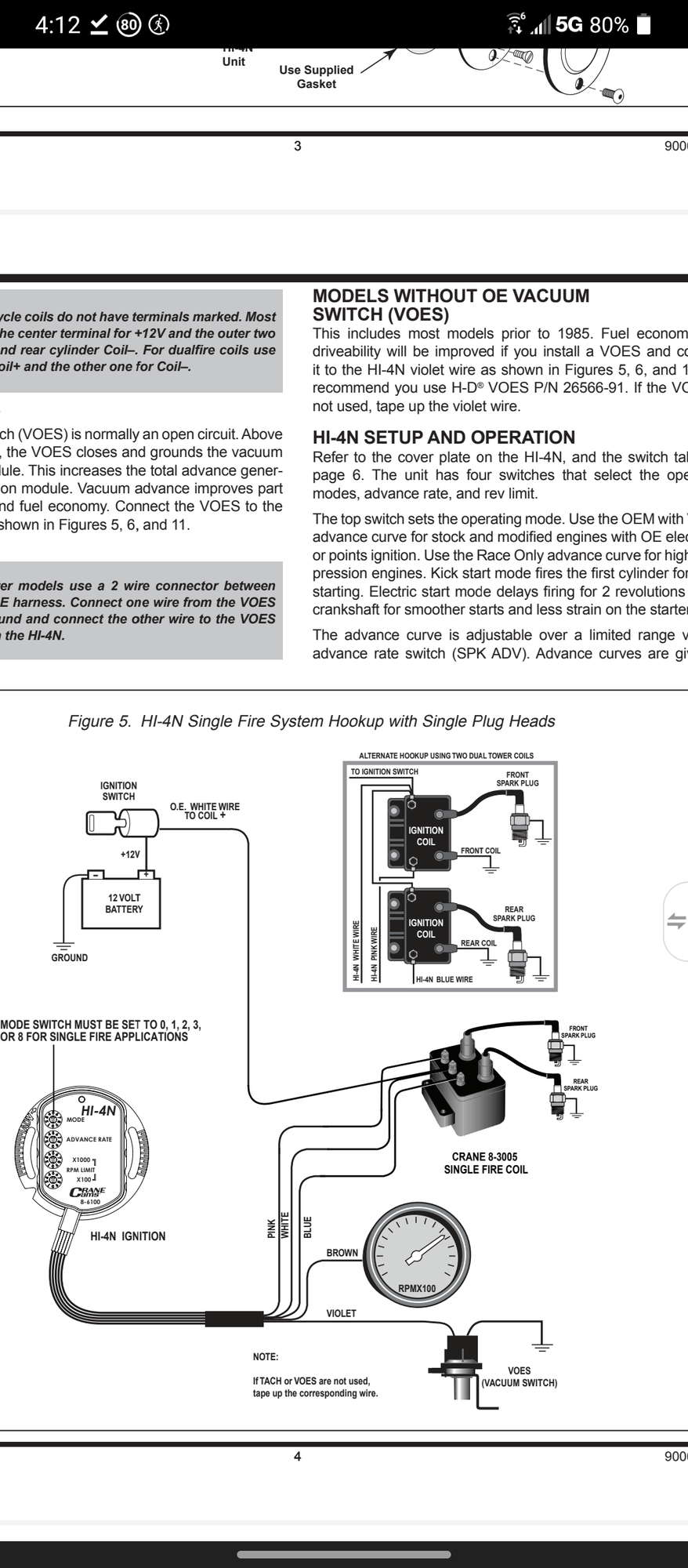

Also the ignition is not stock, it has the single fire S&S HI-4N.

Reply
0
HD Forum Stories

The Best of Harley-Davidson for Lifelong Riders

story-0

8 Best Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-1

10 Worst Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-2

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

 Verdad Gallardo
story-3

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

 Verdad Gallardo
story-4

Harley-Davidson Reveals Super Cool Cafe Racer Concept

 Verdad Gallardo
story-5

Engraved Rebellion: Inside Bundnerbike's Glam Rock II

 Verdad Gallardo
story-6

10 Motorcycles You Should Never Buy

 Joe Kucinski
story-7

10 Things Harley-Davidson Needs to Fix in 2026

 Verdad Gallardo
story-8

Southpaw Super Glide: A Left-Hand-Drive 1979 Harley FXE Built to Fit the Rider

 Verdad Gallardo
story-9

The Best and Worst Harley-Davidson Moves of 2025

 Verdad Gallardo
Old Aug 5, 2023 | 06:37 PM
Share
  #179
mikey95hd's Avatar
mikey95hd
Thread Starter
|
Cruiser
Joined: Jul 2023
Posts: 143
Likes: 22
From: California
Default
Also the ignition is not stock, it has the single fire S&S HI-4N.


Last edited by mikey95hd; Aug 5, 2023 at 06:38 PM.
Reply
0
Old Aug 5, 2023 | 08:14 PM
Share
  #180
mikey95hd's Avatar
mikey95hd
Thread Starter
|
Cruiser
Joined: Jul 2023
Posts: 143
Likes: 22
From: California
Default
At least it runs, that is making progress,...still can't figure out why it's running with the ignition switch in the off position. Haven't found anything yet with the wiring harness being wrong.

Reply
0
