HID Install Instructions
Tools Needed:
Phillips Screw Driver
T20 Torx Screw Driver
Install Time: Look at my post times. I was able to do the install, take pics and write everything up in 19 minutes.
REMEMBER - DO NOT TOUCH THE BULB WITH YOUR FINGERS!
If you can play this game, you can do this with your eyes closed.
1. Unscrew phillips screw at bottom of the bezel and pull bezel off from the bottom. There is a clip that holds it in place at the top.
2. Remove the 4, T20 Torx Screws. Becareful removing the last, the headlight will want to fall forward.
3. Remove the rubber plug on top of the lightbulb and then the clip that hold the bulb in place. You CAN push all your wires through that plug as seen in my pictures. DO NOT TOUCH THE HID BULB. The oil from your fingers will cause almost immediate failure.

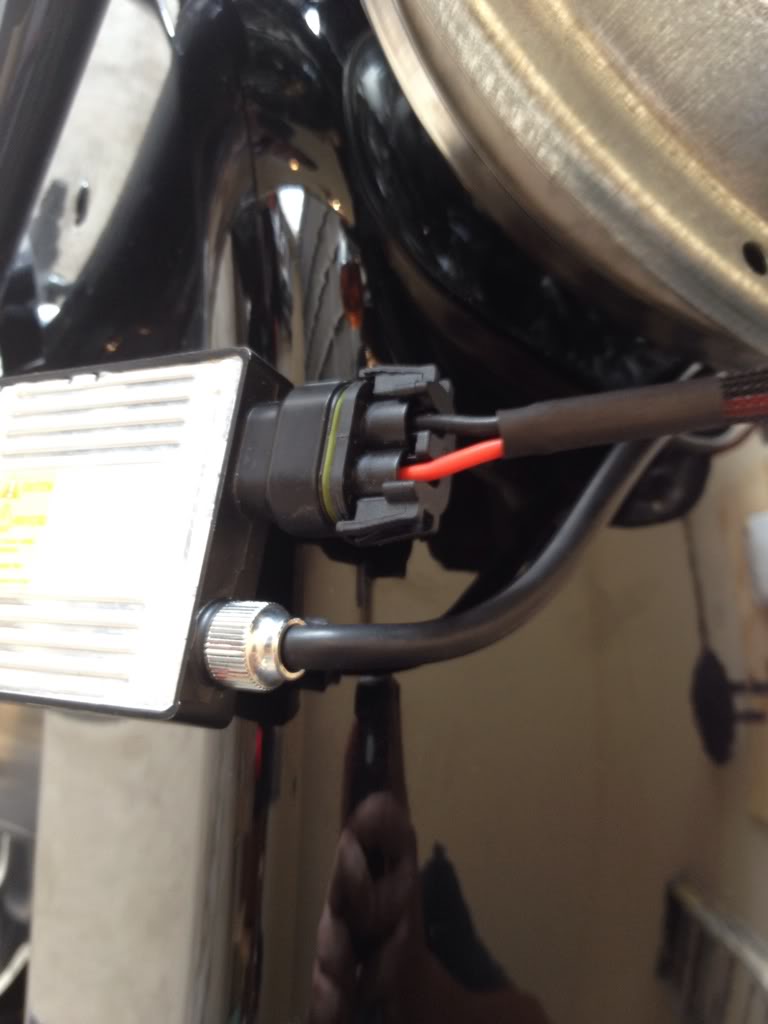

Once the new HID bulb is in the headlamp housing, plug the rest of the wires together, they only fit ONE way and all are keyed. The 2 prong plug will fit into the the factory harness. See pictures below.
I shoved the ballast and ignitor in the left side of the fairing. I would recommend using double sided velcro though so that you can detach/reattach if you need to remove your fairing.
Final Product
Tools Needed:
Phillips Screw Driver
T20 Torx Screw Driver
Install Time: Look at my post times. I was able to do the install, take pics and write everything up in 19 minutes.
REMEMBER - DO NOT TOUCH THE BULB WITH YOUR FINGERS!
If you can play this game, you can do this with your eyes closed.
1. Unscrew phillips screw at bottom of the bezel and pull bezel off from the bottom. There is a clip that holds it in place at the top.
2. Remove the 4, T20 Torx Screws. Becareful removing the last, the headlight will want to fall forward.
3. Remove the rubber plug on top of the lightbulb and then the clip that hold the bulb in place. You CAN push all your wires through that plug as seen in my pictures. DO NOT TOUCH THE HID BULB. The oil from your fingers will cause almost immediate failure.
Once the new HID bulb is in the headlamp housing, plug the rest of the wires together, they only fit ONE way and all are keyed. The 2 prong plug will fit into the the factory harness. See pictures below.
I shoved the ballast and ignitor in the left side of the fairing. I would recommend using double sided velcro though so that you can detach/reattach if you need to remove your fairing.
Final Product
Last edited by 5W0P3; Feb 15, 2012 at 12:36 PM.
Cruiser
Joined: Nov 2011
Posts: 207
Likes: 0
From: Little Elm, TX
That's what I thought. I think I'm actually going to buy like 5 kits and keep them with me and when people ask me where I got it, i'll sell it to them right then and there with free install! lol
Road Captain
Joined: Feb 2007
Posts: 500
Likes: 0
From: Tyler, Texas
So 5WOP3 did you run the black and red all the way to the battery or use the hot wire thats ziptied to the headlight harness??
Nice right up, clarify this last part and it SHOULD be made a sticky IMO.
