Which HID kit??
Cruiser
Joined: Nov 2011
Posts: 207
Likes: 0
From: Little Elm, TX
OEM Harness Wires: IIRC (white/yellow may be backwards, i'm googling now and will update if i'm wrong, but either way its the same.)
Yellow - High Beam
White - Low Beam
Black - Ground
HID Harness
Red - Power
Black - Negative
Cruiser
Joined: Nov 2011
Posts: 207
Likes: 0
From: Little Elm, TX
I would plug those in the harness just like my red/black ones are.
Grand HDF Member
Joined: Dec 2007
Posts: 4,999
Likes: 55
From: Bay Area
I just bought 3 sets, a dual light set for my RG, and one for a streetglide and an xr1200. All the harnesses are the same, meaning they have 2 head light leads coming off the headlight plug (like for a car set up). Are your guys harness the same or did you get a single light harness for the DDM kit?
Cruiser
Joined: Nov 2011
Posts: 207
Likes: 0
From: Little Elm, TX
I just bought 3 sets, a dual light set for my RG, and one for a streetglide and an xr1200. All the harnesses are the same, meaning they have 2 head light leads coming off the headlight plug (like for a car set up). Are your guys harness the same or did you get a single light harness for the DDM kit?
Grand HDF Member
Joined: Dec 2007
Posts: 4,999
Likes: 55
From: Bay Area
I think they just sent me 3 wiring harness for a dual light set up. It was Chinese New Year maybe they were sauced when they filled the order.
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Southpaw Super Glide: A Left-Hand-Drive 1979 Harley FXE Built to Fit the Rider
Verdad Gallardo
The Best and Worst Harley-Davidson Moves of 2025
Verdad Gallardo
Road Captain
Joined: Feb 2007
Posts: 500
Likes: 0
From: Tyler, Texas

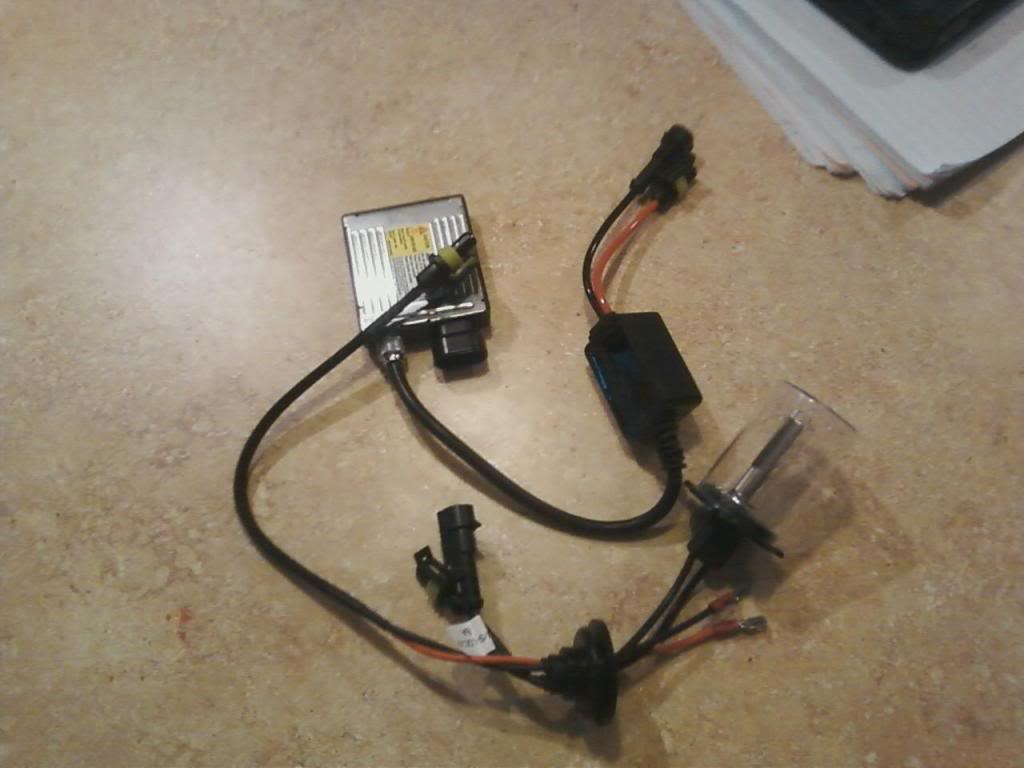

I dont know, my **** sounds different. Here is a pic. I dont see anything like what yall have. Its a 35W H4 kit. Sorry but I dont see anything the 3 way factory Harley light will plug into here. If you match stuff up the both the single wires with weatherpack connectors seem to go together and the double oval type weatherpack connector coming off the light seems to go into ballast. That only leaves those two single red and blacks with spade connectors on them. Do they just "stick" in the Harley plug?? Thats sounds pretty mickey mouse to me!! Sorry Im alittle pissed right now because Im not at home to look and trying to describe this off a pic my wife sent me.
