Jun 25, 2018 | 06:12 AM

#71

Yzzyx

Cruiser

Joined: Dec 2015

Posts: 239

Likes: 76

From: Arkansas

Quote:

Originally Posted by modular

The plate relocation kit is from Blackmill. He is a sponsor here.

Yeah, I know who makes it. I was just curious how it looks up close where it mounts. I wanted to see how “finished” it looked before spending that much $.

Jun 25, 2018 | 06:35 AM

#72

Merkur34

5th Gear

Joined: May 2018

Posts: 9

Likes: 1

From: Ohio

[QUOTE=realsteel;17446640]Hi All,
Just got our New fatbob back on the road after getting a custom lowered shock made to lower it 1" 1/2 and dropped the forks though an extra 1/2". Its for the wife who is only 5 foot 2. Now has a softer spring and uses same preload adjuster. Also fitted a tail tidy, removed the cats from headers and drilled the street cannons out. We fitted a Power vision from Fuel Moto as well. Have a Question regarding auto tune. How many tunes and how long for each to get it nearly right before I send back to Fuel Moto? Anyway heres a couple of pics so far.

Any helpful info for removing the cats? Did you gut them or put in test pipes

Jun 25, 2018 | 07:56 AM

#73

modular

Thread Starter

Supporter

Joined: Apr 2010

Posts: 2,434

Likes: 292

From: Earth

Quote:

Originally Posted by Yzzyx

Yeah, I know who makes it. I was just curious how it looks up close where it mounts. I wanted to see how “finished” it looked before spending that much $.

Trust me, it’s a high quality piece.

Jun 25, 2018 | 03:44 PM

#74

Gillham

Intermediate

Joined: Feb 2011

Posts: 45

Likes: 6

From: Billerica, MA

Quote:

Originally Posted by Yzzyx

Yeah, I know who makes it. I was just curious how it looks up close where it mounts. I wanted to see how “finished” it looked before spending that much $.

It's completely powder coated, and even includes a notch out for the Custom Dynamics LED plate. The only thing that's kind of odd, is the furniture pads used as a cushion between the bracket and your fender. Simple, but it works. +1 on it being a finished piece. I made my own bracket out of some Simpson Ties and a bicycle tube, for significantly less money - but it bounced too much for my liking. So I just ended up buying the Blackmill kit.

Jun 25, 2018 | 04:12 PM

#75

adm

Seasoned HDF Member

Joined: Apr 2014

Posts: 5,814

Likes: 2,554

From: UK

Yeah - it is a nice piece of kit. Kind of expensive for a bit of bent and powder coated metal, but it does the job perfectly and Eric includes hardware for pretty much all possible fitment options.

I would say the new ones are slightly better as they fit sandwiched between the fender and the....well what the hell do you call the inner fender mounting plates. Maybe that? The older ones sat on the inside of the IFMPs and secured with a locknut. Solid though....

Jun 26, 2018 | 02:17 AM

#76

realsteel

Novice

Joined: Sep 2008

Posts: 18

Likes: 6

From: Victoria

Quote:

Any helpful info for removing the cats? Did you gut them or put in test pipes

I removed pipes . Tac weld a flat piece to either end and then cut one out at a time (sorry for large pics)

Finished pipes

Plates to each side and clamped to bench

Jun 26, 2018 | 12:17 PM

#77

Truble

Tourer

Joined: Jul 2015

Posts: 462

Likes: 37

From: Mississippi

Quote:

Originally Posted by Yzzyx

I saw a Harley orange 107 Fat Bob at the Nashville HD dealer today. I didn’t know they came in that color.

modular: Would you take a picture or three of your license plate holder so I can see how it attaches and stuff? I’m curious how “finished” it looks from various angles. Thanks!

I don't think that's a stock color if it was I would've bought that take a picture next time you're out thanks brother😎

Jun 26, 2018 | 01:29 PM

#78

blackmill

Sponsor

Joined: Mar 2018

Posts: 268

Likes: 52

From: California

Quote:

Originally Posted by Yzzyx

Yeah, I know who makes it. I was just curious how it looks up close where it mounts. I wanted to see how “finished” it looked before spending that much $.

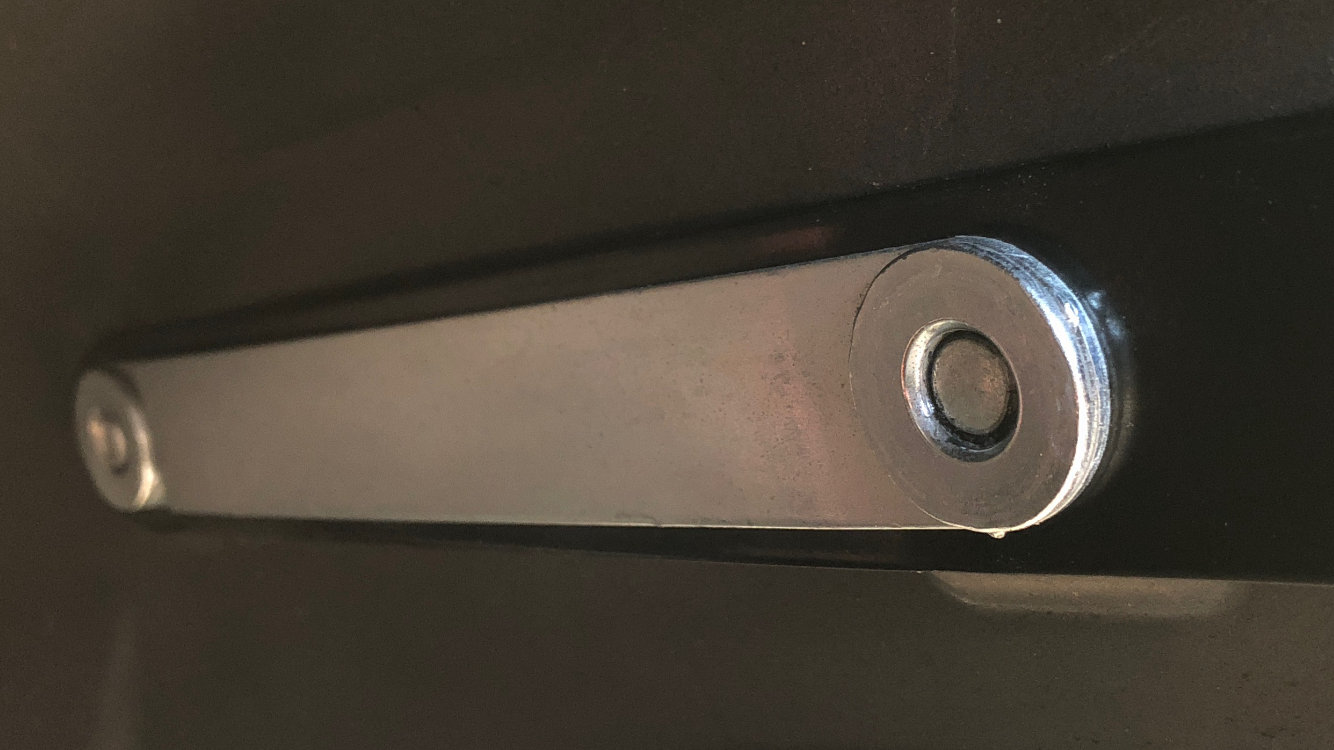

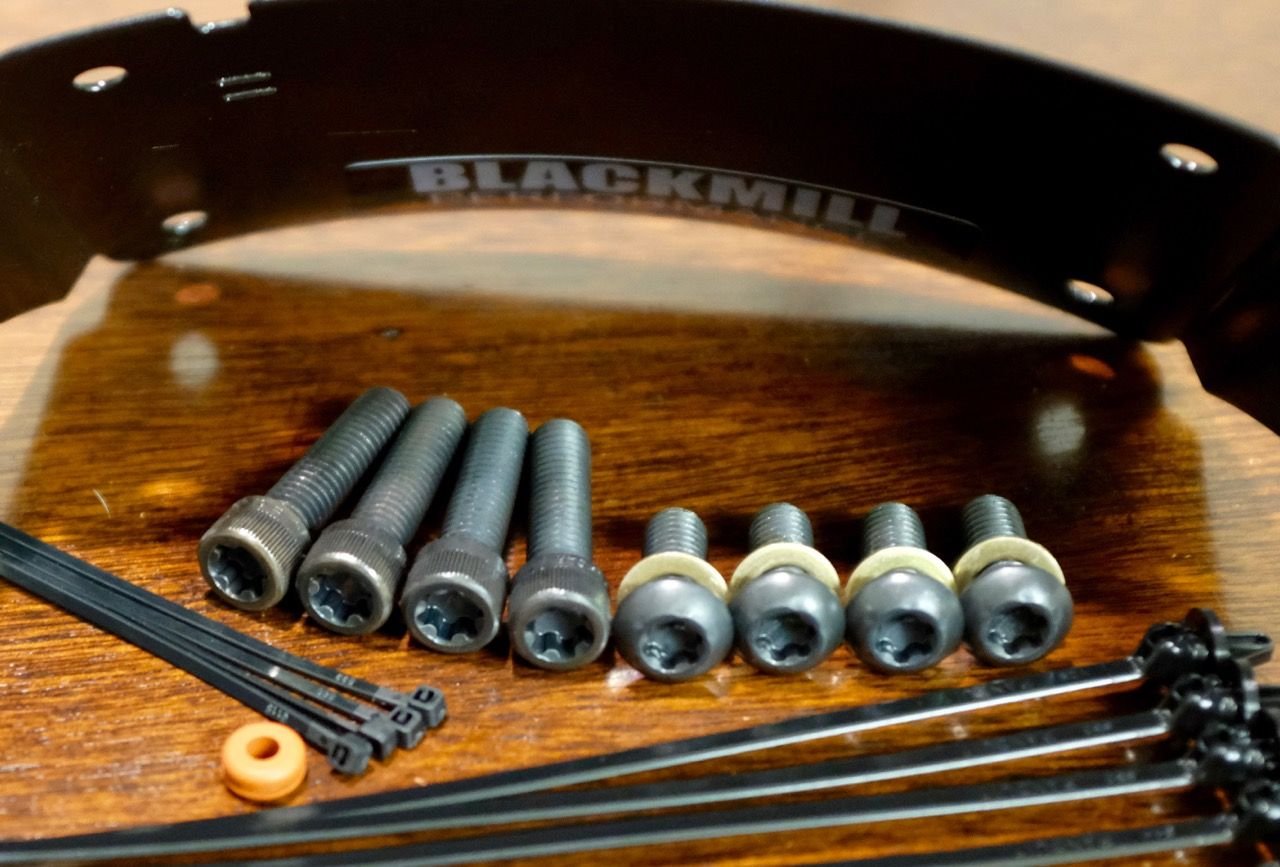

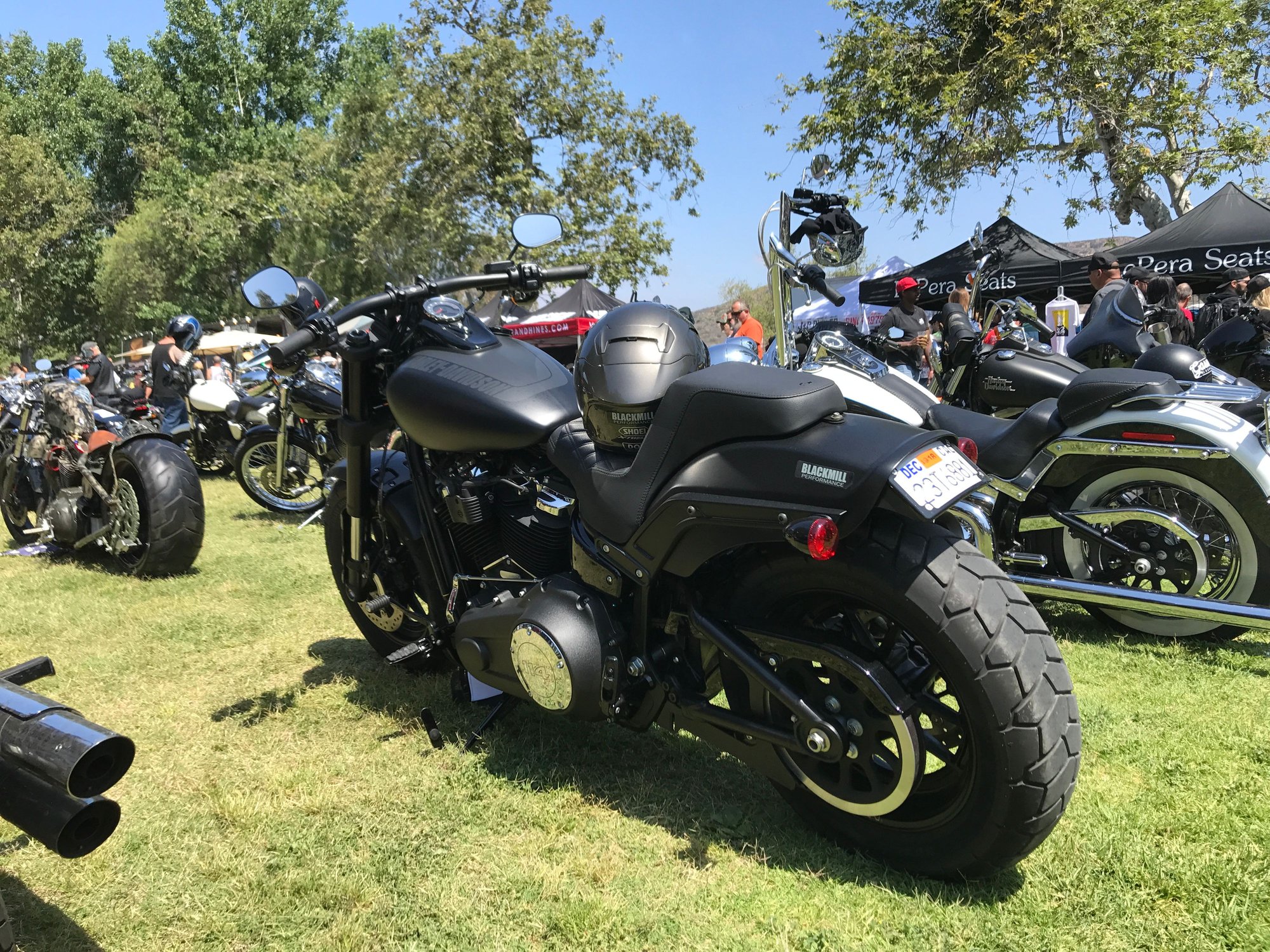

laser cut 4130 chromoly formed on the robot, professionally coated with an added UV topcoat. Here is the mounting, new kits come with black Torx hardware. Born Free 2018 show was awesome, hope some of you attended!
