Po563 -HELP

Reply Subscribe

Thread Tools

Search this Thread

Apr 5, 2017 | 07:11 PM

#21

Oldgreazer

Thread Starter

Tourer

Joined: Nov 2014

Posts: 364

Likes: 221

From: Ga

Tech said he would recheck battery before installing it on new parts . He too was a bit concerned about what his tester was saying. The thing I don't understand, as I stated in earlier post stator ohmed ok to each winding but also homed to ground. Is this correct readings?Confused on this point!

Apr 5, 2017 | 08:56 PM

#22

Vernal

Club Member

Joined: Apr 2013

Posts: 7,681

Likes: 8,413

From: Utah

Stator windings should not be common with ground.

Apr 6, 2017 | 06:42 AM

#23

Vernal

Club Member

Joined: Apr 2013

Posts: 7,681

Likes: 8,413

From: Utah

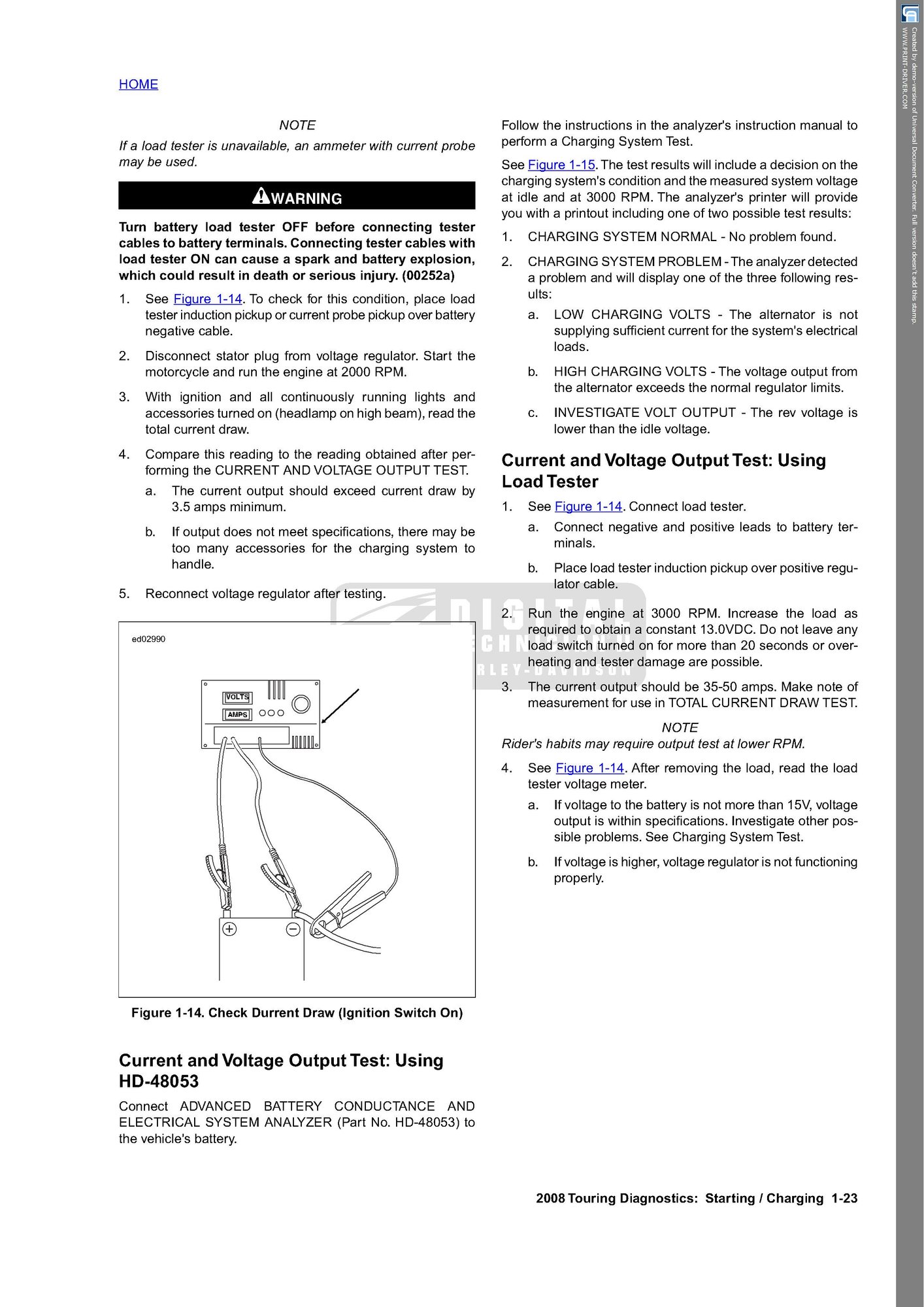

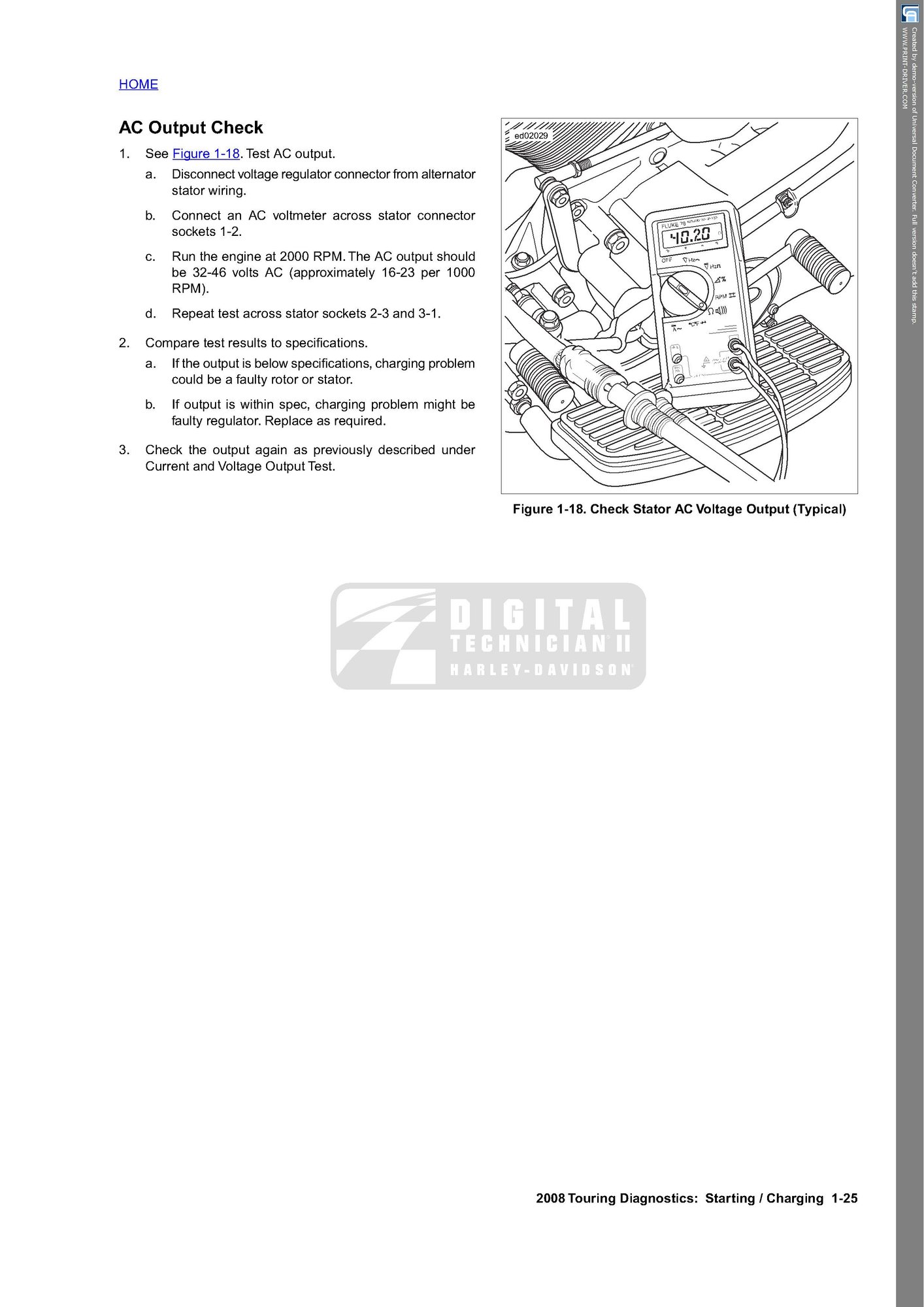

2008 touring Elect Diag. Manual:

Last edited by Vernal; Apr 6, 2017 at 06:48 AM.

Apr 6, 2017 | 06:46 AM

#24

Jackie Paper

Seasoned HDF Member

Joined: Mar 2010

Posts: 38,591

Likes: 6,435

From: Honah Lee

Quote:

Originally Posted by Oldgreazer

Missed that homed to ground. No, that is not correct. Back up near the top, you went to PM. Your PM to me was 'Hi ripsaw , just checked ac voltage 21.3 20.5 20.5 at idle what you think? In the interest for everone, I reposted what went on with PM and to attemp to make it make sense cut some also. Failed to note that grounding additon and assumed voltage was low do to you checking it at idle rather then at 2000 were all test should be made. Sorry.

Last edited by Jackie Paper; Apr 6, 2017 at 08:41 AM.

Apr 6, 2017 | 06:23 PM

#25

Oldgreazer

Thread Starter

Tourer

Joined: Nov 2014

Posts: 364

Likes: 221

From: Ga

Thanks Ripsaw, at least I learned more about my bike and could carry on an intelligent conversation with tech . Had it been the regulator only I could have handled that but I believe I will leave stator repair to pro's .Thanks again.

Apr 6, 2017 | 08:03 PM

#26

TSheff

Seasoned HDF Member

Joined: Feb 2013

Posts: 11,322

Likes: 3,661

From: SE Texas

Quote:

Originally Posted by Oldgreazer

Good deal - as Dirty Harry said "a Man's gotta know his limitations".
If your not up to it better to let a good Indy or Harley Tech tackle it.

Apr 14, 2017 | 05:45 PM

#27

Oldgreazer

Thread Starter

Tourer

Joined: Nov 2014

Posts: 364

Likes: 221

From: Ga

Just wanted to update on stator failure, tech broke into primary and found stator fried. Primary oil was also burned black . Oil had a very bad smell also.Replace stator and regulator. Retested battery and all is good. Just wanted to thank you guys for all the info.
