Power Vision Information Thread
Outstanding HDF Member
Joined: Jun 2014
Posts: 3,185
Likes: 189
From: 90210
no Andy, first time I've seen that link so thanks. I really need to learn more about using scatter plots to assist with tuning- although the TT has made things immensely easier, there are still some inaccuracies with target afr and a lot of big peaks / valleys with the VE tables- I find myself now looking to learn more about using CDE to smooth the tables, and how to further get VE to be very accurate with target AFRs. Although I'm at a bit of a disadvantage until I get my new 4.9 injectors installed- I'm hitting well over 80% max IDC everywhere with the 3.9's so I'm sure that is causing some issue.
Road Master
Joined: Mar 2007
Posts: 1,177
Likes: 23
Regarding Peaks and Valleys, try turning on the calculated field MAPxRPM and then plot MAPxRPM in the X, Duty Cycle in the Y and AFR in the Z.
For a filter use.
[Acel Enr] >0 or [Decl Enl]>0
And also create a filter to toss out when the motor is cold.
Andy
For a filter use.
[Acel Enr] >0 or [Decl Enl]>0
And also create a filter to toss out when the motor is cold.
Andy
Elite HDF Member
Joined: Aug 2013
Posts: 3,789
Likes: 277
From: Hawkeye state
Rode yesterday and the bike felt great. Noticed fuel economy was a little low. I opened my tune from the power vision and became confused. I had 4 base line pvt's. I loaded tune from bike and saved to slot. Looked and the same as the last baseline tune that was in it. Looks like I am full open loop? Sent mac an email but in case he is busy thought I would let someone else see it.
https://www.dropbox.com/s/0q81cr18kk...-1-16.pvt?dl=0
https://www.dropbox.com/s/0q81cr18kk...-1-16.pvt?dl=0
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
7 Times Harley-Davidson Chucked Tradition Out the Window
Verdad Gallardo
7 Surprising Harley-Davidson Products that Are Not Motorcycles
Verdad Gallardo
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
Outstanding HDF Member
Joined: Jun 2014
Posts: 3,185
Likes: 189
From: 90210
Rode yesterday and the bike felt great. Noticed fuel economy was a little low. I opened my tune from the power vision and became confused. I had 4 base line pvt's. I loaded tune from bike and saved to slot. Looked and the same as the last baseline tune that was in it. Looks like I am full open loop? Sent mac an email but in case he is busy thought I would let someone else see it.
https://www.dropbox.com/s/0q81cr18kk...-1-16.pvt?dl=0
https://www.dropbox.com/s/0q81cr18kk...-1-16.pvt?dl=0
your AFR table is solid "13.0" for the entire table- yes that will be open loop and is typically only good for tuning with AT PRO, if you ride that you will of course have lower MPG since the low load and cruise areas are richer than they need to be. closed loop AFR's with narrow band sensors will be 14.9 to 14.3 in your tune file. that will typically be the light load and cruise areas.
your spark advance tables are quite advanced, which is good for power, but your VE's seem a bit low and rather jaggy- quite lean in some areas as well like decel and mid rpm high load. this could be giving you some ping under load. but the ecm will detect and pull timing so not optimal but no worries.
email Mac he'll get you straightened out. when running auto tune be sure to exclude 30kpa for the minimum map in the auto tune settings- if you auto tune 30kpa and under it will only lean out the VEs
not sure what you mean by "four baseline pvt's" - do you mean you have 4 different saved auto tune session files - e.g. "000001.pvt" etc?
Last edited by LA_Dog; Mar 2, 2016 at 08:53 AM.
Elite HDF Member
Joined: Aug 2013
Posts: 3,789
Likes: 277
From: Hawkeye state
was this modified by narrow band basic auto tuning, or AT Pro auto tuning?
your AFR table is solid "13.0" for the entire table- yes that will be open loop and is typically only good for tuning with AT PRO, if you ride that you will of course have lower MPG since the low load and cruise areas are richer than they need to be. closed loop AFR's with narrow band sensors will be 14.9 to 14.3 in your tune file. that will typically be the light load and cruise areas.
your spark advance tables are quite advanced, which is good for power, but your VE's seem a bit low and rather jaggy- quite lean in some areas as well like decel and mid rpm high load. this could be giving you some ping under load. but the ecm will detect and pull timing so not optimal but no worries.
email Mac he'll get you straightened out. when running auto tune be sure to exclude 30kpa for the minimum map in the auto tune settings- if you auto tune 30kpa and under it will only lean out the VEs
not sure what you mean by "four baseline pvt's" - do you mean you have 4 different saved auto tune session files - e.g. "000001.pvt" etc?
your AFR table is solid "13.0" for the entire table- yes that will be open loop and is typically only good for tuning with AT PRO, if you ride that you will of course have lower MPG since the low load and cruise areas are richer than they need to be. closed loop AFR's with narrow band sensors will be 14.9 to 14.3 in your tune file. that will typically be the light load and cruise areas.
your spark advance tables are quite advanced, which is good for power, but your VE's seem a bit low and rather jaggy- quite lean in some areas as well like decel and mid rpm high load. this could be giving you some ping under load. but the ecm will detect and pull timing so not optimal but no worries.
email Mac he'll get you straightened out. when running auto tune be sure to exclude 30kpa for the minimum map in the auto tune settings- if you auto tune 30kpa and under it will only lean out the VEs
not sure what you mean by "four baseline pvt's" - do you mean you have 4 different saved auto tune session files - e.g. "000001.pvt" etc?

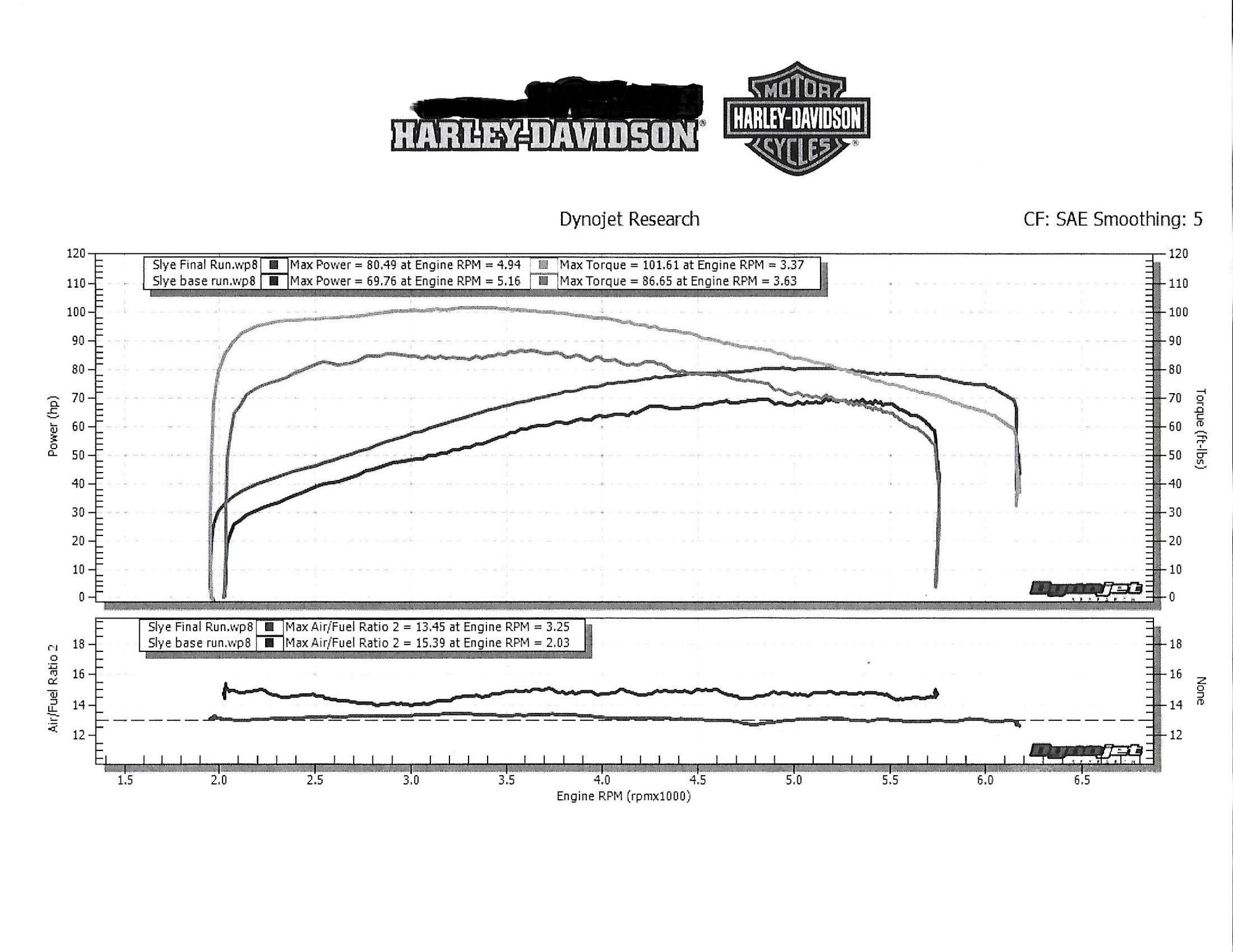

I will not auto tune this as it will just want to lean it out per mac. My afr is really good here on the chart. The dyno operator leaned it out already from macs base cal to not be too rich. Here is the cal with afr changed back.
