I had front wheel bearing installed at a shop. When I installed the wheel I noticed a gap between the spacer and fork, also the other side does not seem to be snugged up enough. What must I do to close the gap???
it's a 97 Electra

Reply
Old Apr 21, 2024 | 10:25 AM
  #2
CoolBreeze3646's Avatar
CoolBreeze3646
Seasoned HDF Member
Joined: Aug 2006
Posts: 24,531
Likes: 30,851
From: Pennsylvania
Default

1. If you are gong to work on your bike, get you an official H-D Service Manual so you know the procedures and torques.
2. One does not know what you are dealing with so a picture or 2 will help.
3. There are specific procedures for aligning and torquing the wheel.

Reply
Old Apr 21, 2024 | 10:30 AM
  #3
Shadetree505's Avatar
Shadetree505
Thread Starter
|
Stage II
Joined: Apr 2024
Posts: 2
Likes: 0
From: Missouri
Default

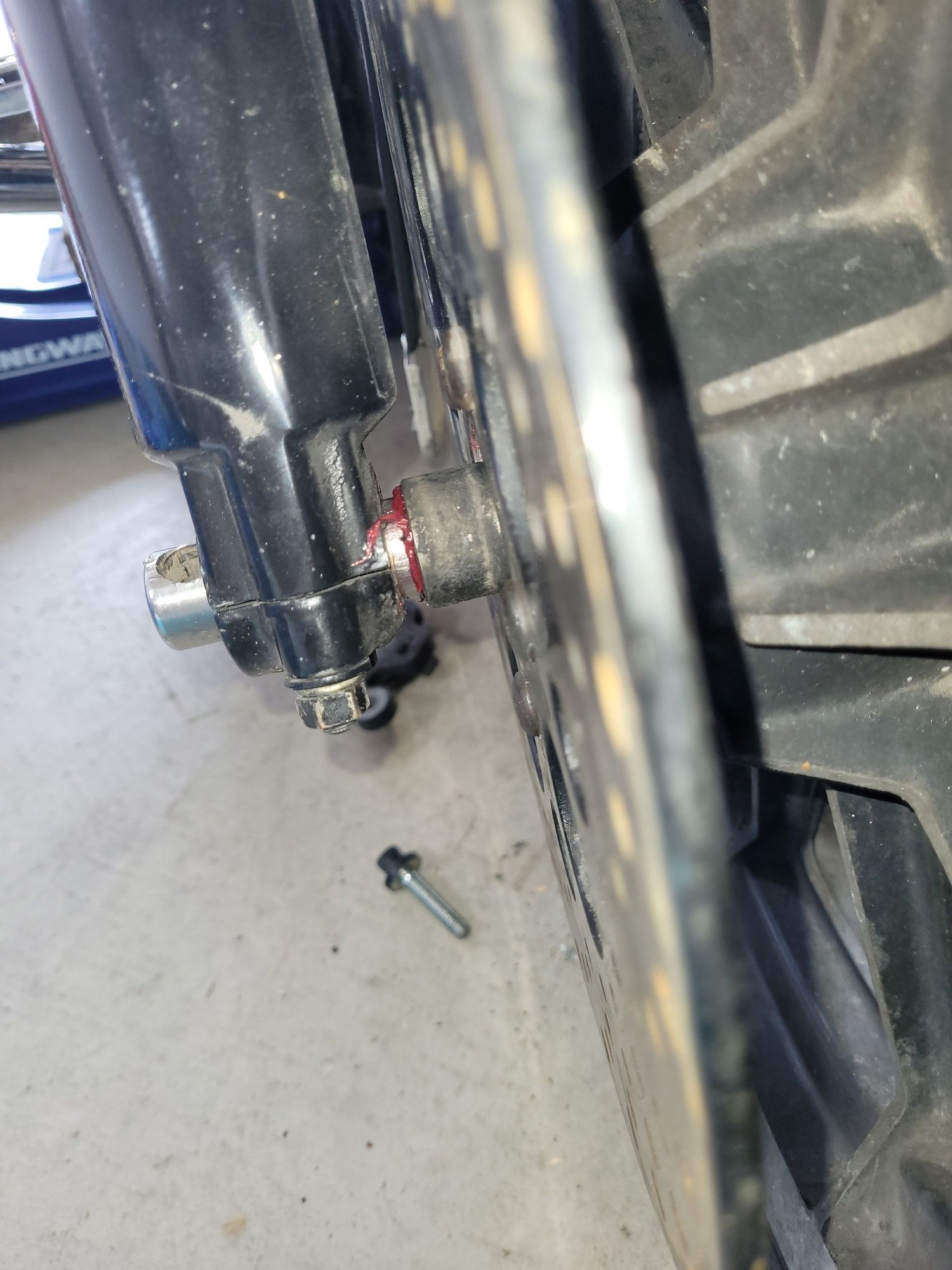

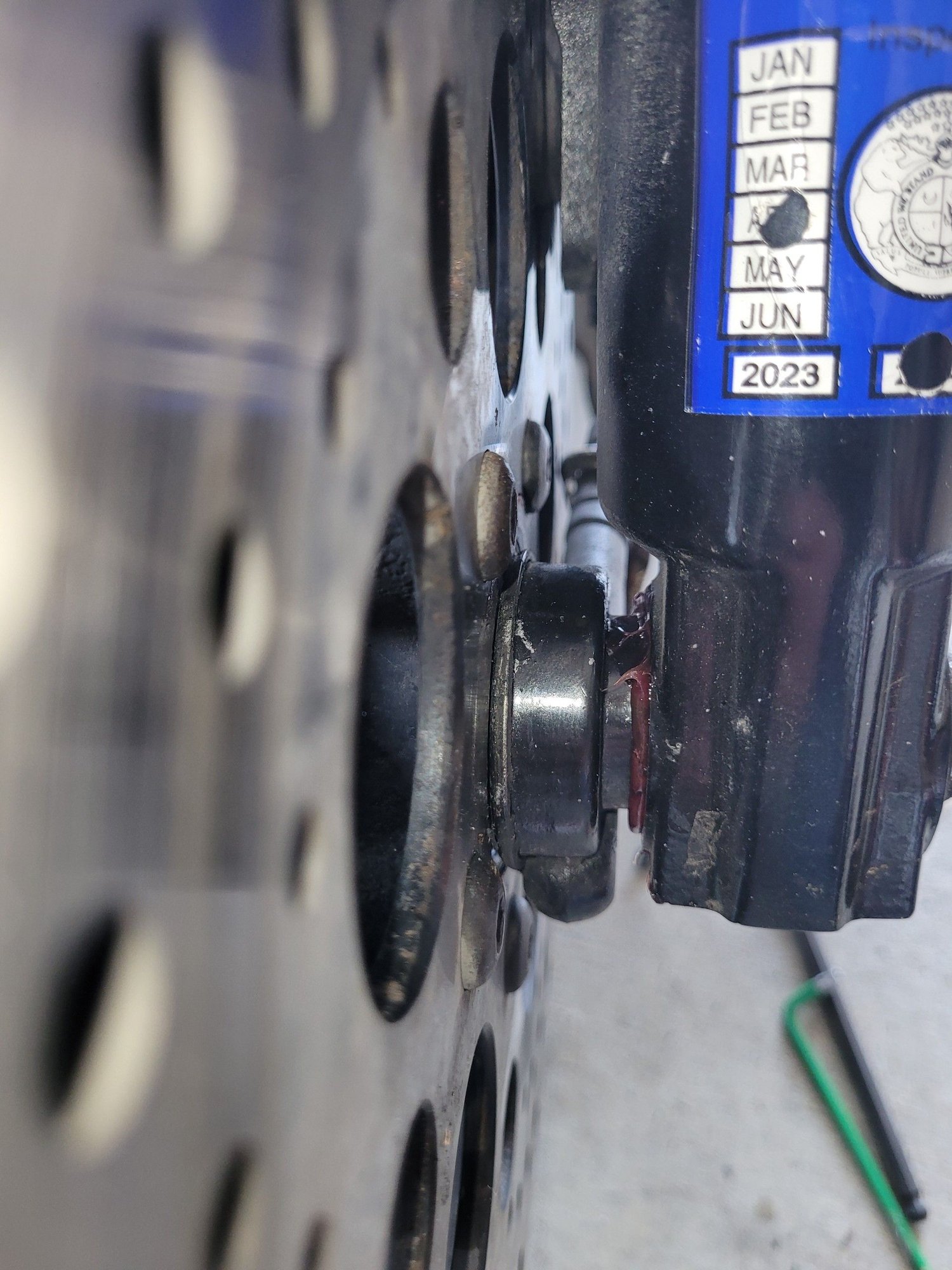

You can see the gap, its shiny.

Here the speedometer (i think thats what it is) is not snugged up

Reply
Old Apr 21, 2024 | 10:32 AM
  #4
brakeless's Avatar
brakeless
Seasoned HDF Member
Joined: May 2017
Posts: 5,915
Likes: 5,929
From: NorCal
Default

I thought this was word association so "The final frontier" But now that I read it I understand. In lack of a manual go to Ronnie's Microfiche and search your bikes front wheel exploded view. Maybe you could see what's missing.

Reply
Old Apr 21, 2024 | 10:36 AM
  #5
RANGER73's Avatar
RANGER73
Club Member
Veteran: Army
Joined: Sep 2010
Posts: 15,435
Likes: 7,127
From: Beyond Fucital
Default

Originally Posted by brakeless
I thought this was word association so "The final frontier" But now that I read it I understand. In lack of a manual go to Ronnie's Microfiche and search your bikes front wheel exploded view. Maybe you could see what's missing.
That's the first thing that popped into my head too. LMAO

Reply
Old Apr 21, 2024 | 10:40 AM
  #6
Dan89FLSTC's Avatar
Dan89FLSTC
Seasoned HDF Member
Veteran: Navy
Active Streak: 30 Days
Top Answer: 3
Top Answer: 5
Joined: May 2008
Posts: 21,174
Likes: 12,745
From: South Carolina
Default

Did the shop that installed the bearing set the bearing end play?

There is nothing wrong in those pics*.

The axle is pressing against the spacer on the right side, just like it should.

The speedometer drive is fine.

Install axle, snug the cap nuts, then torque the axle nut.

Loosen the cap nuts, the slider will find it`s correct position on the axle (do not push the slider inboard or outboard).

Torque the cap nuts.

*What`s up with the grease goobering out?

Pull the axle, clean the grease off the axle, the insides of the spacers, and speedometer drive unit.

A light coat of anti-seize on the axle is all you need.


Last edited by Dan89FLSTC; Apr 21, 2024 at 11:19 AM.
Reply
Old Apr 21, 2024 | 11:28 AM
  #7
chopper_man's Avatar
chopper_man
Stellar HDF Member
Veteran: Army
10 Year Member
Liked
Community Favorite
Joined: Apr 2016
Posts: 3,323
Likes: 2,114
From: Masshole
Default

You didn't install your axle correctly. Your service manual should call this out. Use your specific manual, this is from a 2014.



Last edited by chopper_man; Apr 21, 2024 at 11:42 AM.
Reply
Old Apr 21, 2024 | 11:51 AM
  #8
chopper_man's Avatar
chopper_man
Stellar HDF Member
Veteran: Army
10 Year Member
Liked
Community Favorite
Joined: Apr 2016
Posts: 3,323
Likes: 2,114
From: Masshole
Default

Originally Posted by Dan89FLSTC
Loosen the cap nuts, the slider will find it`s correct position on the axle (do not push the slider inboard or outboard).
Is that the OP's specific procedure? My 2014 FSM calls out loosening right side and pushing in until contact is made.

"Push and hold right fork slider inboard until it contacts external spacer. Tighten axle pinch screw to 18-22 ft-lbs (24.4-29.8 Nm)."

Reply
